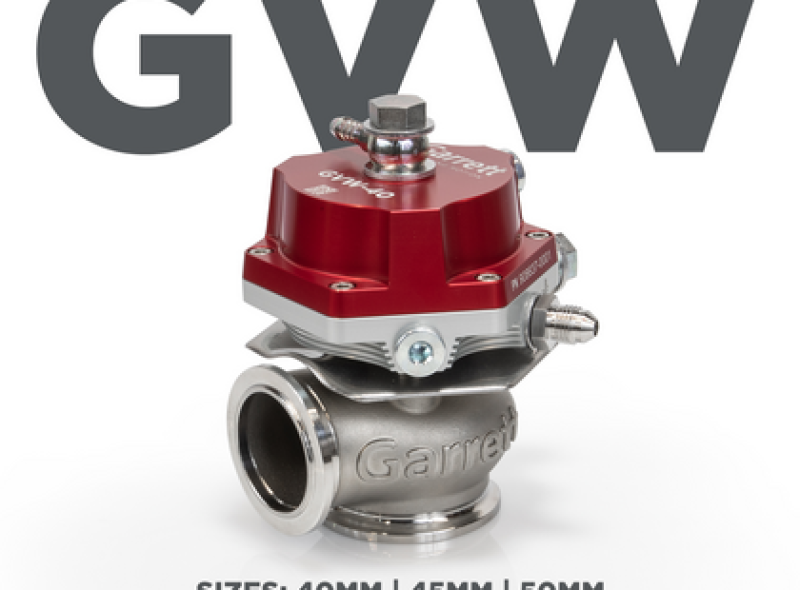

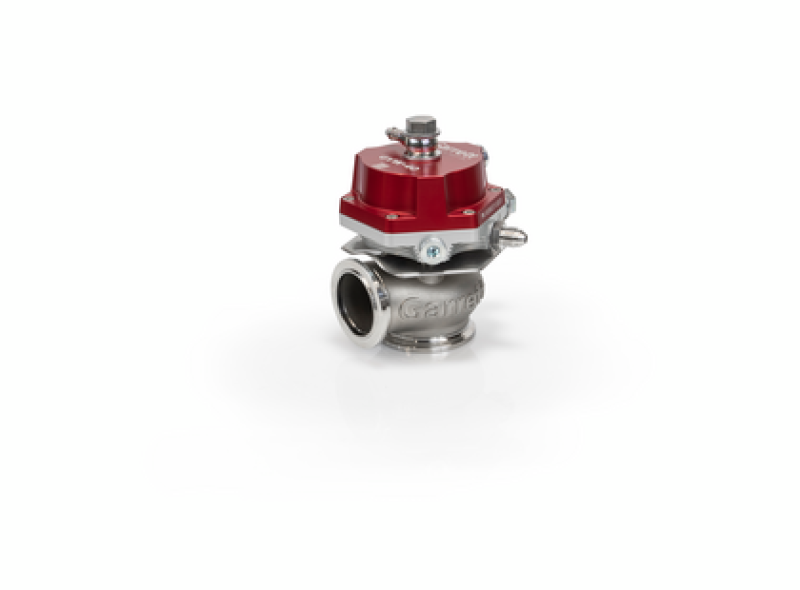

Garrett's 45mm GVW-45 wastegate vents exhaust gases around the turbine wheel to precisely regulate turbocharger shaft speed for any racing turbocharger, delivering optimal boost control with the maximum flow possible. The GVW-45 kit has been CFD tested to deliver thermal efficiency with superior durability and versatility.

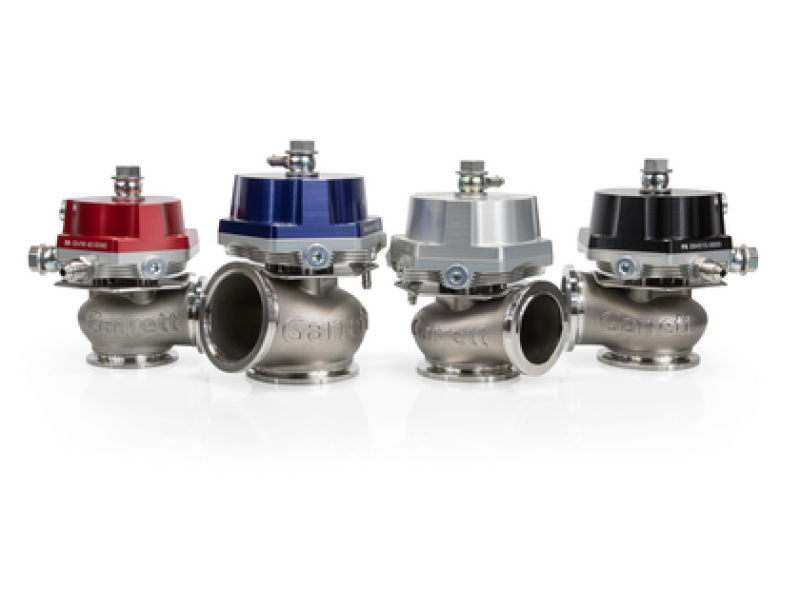

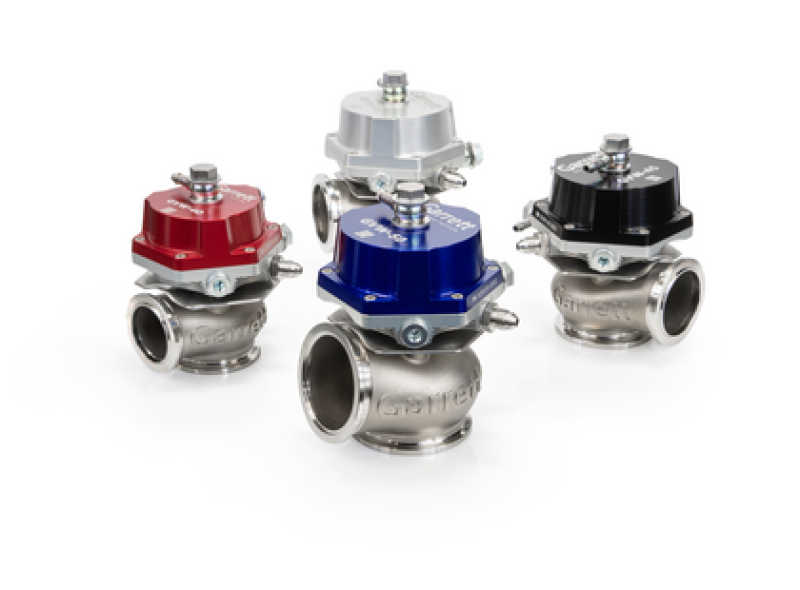

Garrett's engineers spent a full year designing the GVW wastegate family (GVW-40, GVW-45, GVW-50). Developed with the help of Formula 1 teams, this wastegate provides 5% more boost than any competitor and stays consistent in performance no matter the temperature.
Cast from high-temp stainless steel and rated for exhaust temperatures up to 1050°C, the GVW-45 comes set to 1 bar (14.5 psi) and includes all springs so it can be configured from 0.2 bar (2.9 psi) to 1.7 bar (24.7 psi) base boost.
Technology & Features
- CFD tested for maximum flow and thermal efficiency
- Superb reliability thanks to optimized actuation stability and temperature resistance
- Fully-replaceable bushing components, increasing service life
- Easy Nomex diaphragm replacement
- Watercooled actuator ports (optional)
Specifications
- Valve diameter: 45mm; valve mass 1.47 kg / 52 oz
- Spring base pressure: 0.2 bar (3 psi) to 1.7 bar (25 psi) at 1:1 backpressure ratio
- Air port fitting: M10x1.0 to hose barb (6mm / 0.25 in hose ID); liquid port: M8x1.0 to AN-3
- Valve housing: high-temp stainless steel rated up to 1050°C
- Diaphragm: high-temp Nomex reinforced elastomer
- Actuator cover: fully-machined anodized 6061 aluminum
- Valve guide/bushing: Nitronic 60; valve: high-temp stainless steel with plated stem
- V-band and flanges: CNC machined 304 stainless steel; springs: 17/7 PH stainless steel
- Max exhaust gas temperature: 1050°C peak; actuator body 270°C non-cooled, 130°C watercooled
What's in the Box
- GVW-45 wastegate with springs installed, plus the full spring set
- Fasteners, fittings, V-bands, clamps and flanges
