Garrett's GVW-50 gives turbo enthusiasts the best possible way to control extreme boost levels and combat boost creep on any racing turbocharger. This 50mm wastegate efficiently vents exhaust gas around the turbine to regulate turbocharger shaft speed precisely while keeping backpressure to a minimum. The 50mm size is ideal for high-RPM or large-displacement engines where boost creep is a concern.

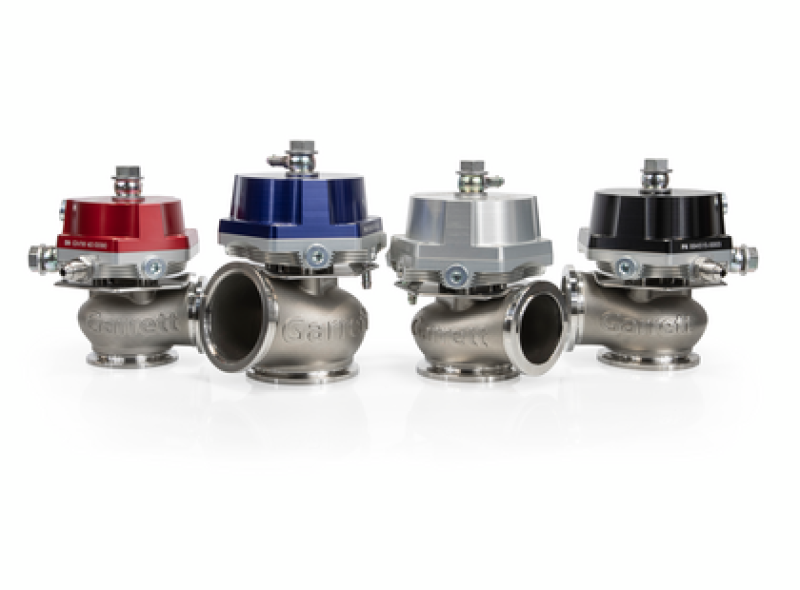

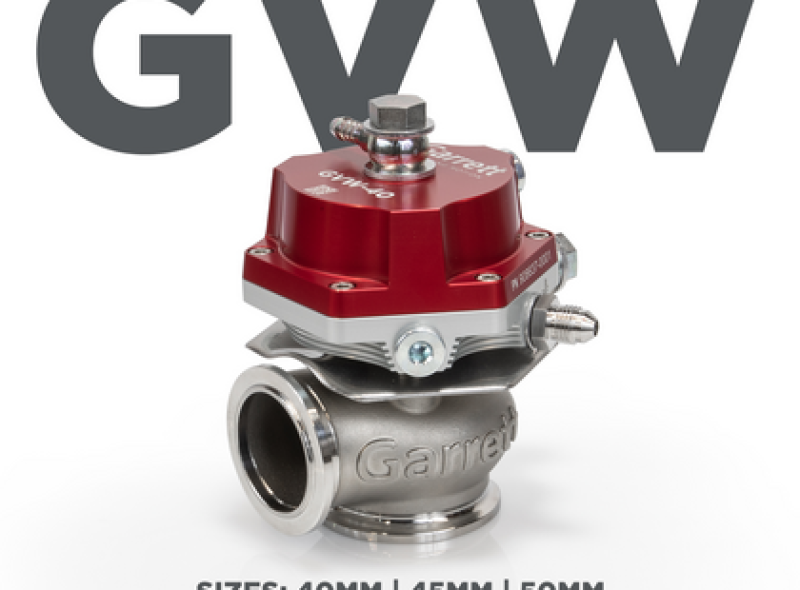

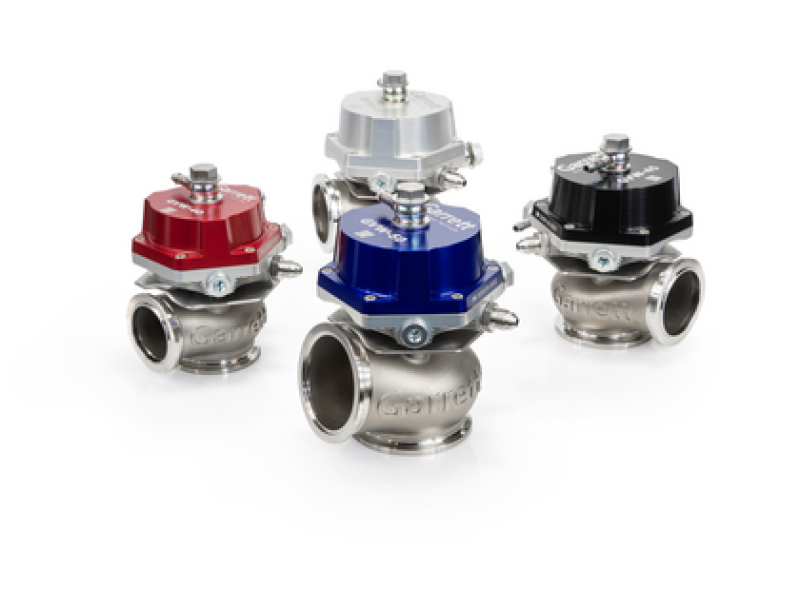

The GVW-50 kit has been CFD tested and is proven to deliver maximum flow, thermal efficiency and superior durability. Made from high-temp stainless steel, it is rated for exhaust gas temperatures up to 1050°C. Garrett engineers spent over a year designing the GVW family (GVW-40, GVW-45 and GVW-50), which flows 5% more than any competitor and stays completely consistent at high temperatures whether you are drag racing or running endurance. It ships set to 1 bar (14.5 psi) and is configurable anywhere from 0.2 bar (2.9 psi) to 1.7 bar (24.7 psi).
Technology and Features
- CFD tested for maximum flow and thermal efficiency
- Superb reliability thanks to optimized actuation stability and temperature resistance
- Fully replaceable bushing components for longer service life
- Easy Nomex diaphragm replacement
- Optional watercooled actuator ports
Mechanical Specs
- Valve diameter: 50mm
- Valve mass: 1.56 kg / 55 oz
- Maximum spring base pressure: 1.7 bar / 25 psi (1:1 backpressure ratio)
- Minimum spring base pressure: 0.2 bar / 3 psi (1:1 backpressure ratio)
- Air port fitting: M10x1.0 to hose barb (6mm / 0.25in hose ID)
- Liquid port fitting: M8x1.0 to AN-3
Materials
- Valve housing: high-temp stainless steel rated up to 1050°C
- Diaphragm: high-temp Nomex reinforced elastomer
- Actuator cover: fully-machined anodized 6061 aluminum
- Valve guide / bushing: Nitronic 60
- Valve: high-temp stainless steel with plated stem
- V-band: CNC machined 304 stainless steel
- Flanges: fully machined 304 stainless steel
- Springs: 17/7 PH stainless steel
Thermal Specs
- Maximum exhaust gas temperature, peak: up to 1050°C
- Maximum thermal stress (non-cooled): 270°C actuator body temperature during thermal cycle testing
- Maximum thermal stress (watercooled): 130°C body temperature during thermal cycle testing
What's in the Box

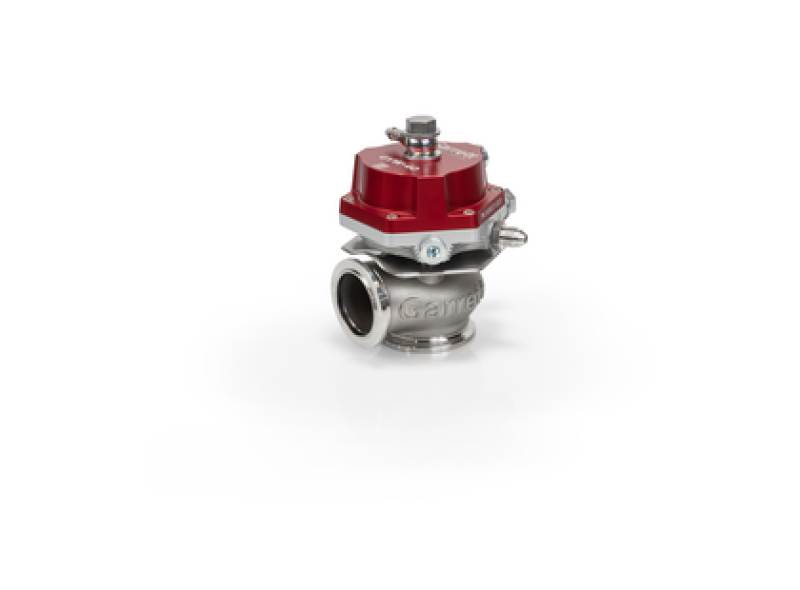

- GVW-50 50mm external wastegate, red
- Springs
- Fasteners
- Fittings
- V-bands and clamps
- Flanges
