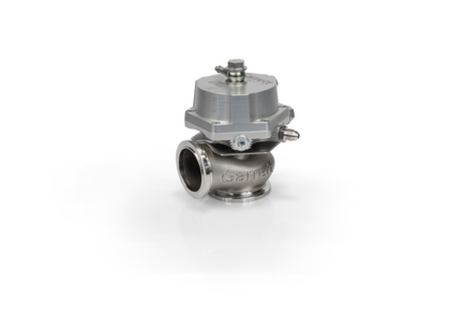

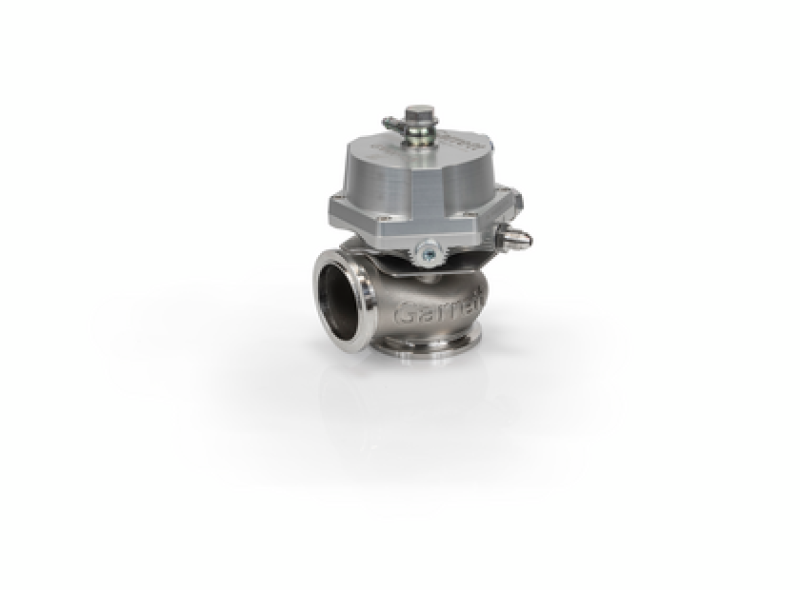

Garrett GVW-50 50mm Wastegate Kit - Silver

Out of stock
Regular price $693.68
Product INFO
  • Vendor Garrett
  • SKU T14.494025
  • Barcode 908829-0004
Out of stock
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Garrett's GVW-50 gives turbo enthusiasts the best possible way to control extreme boost levels and combat boost creep in any racing turbocharger. This 50mm wastegate efficiently vents exhaust gas around the turbine to regulate precise turbocharger shaft speeds while keeping backpressure to a minimum. The 50mm valve is ideal for high-RPM or large-displacement engines where boost creep is a concern.

The GVW-50 kit has been CFD tested and is proven to deliver maximum flow, thermal efficiency and superior durability. Made from high-temp stainless steel, it is rated for exhaust gas temperatures up to 1050°C.

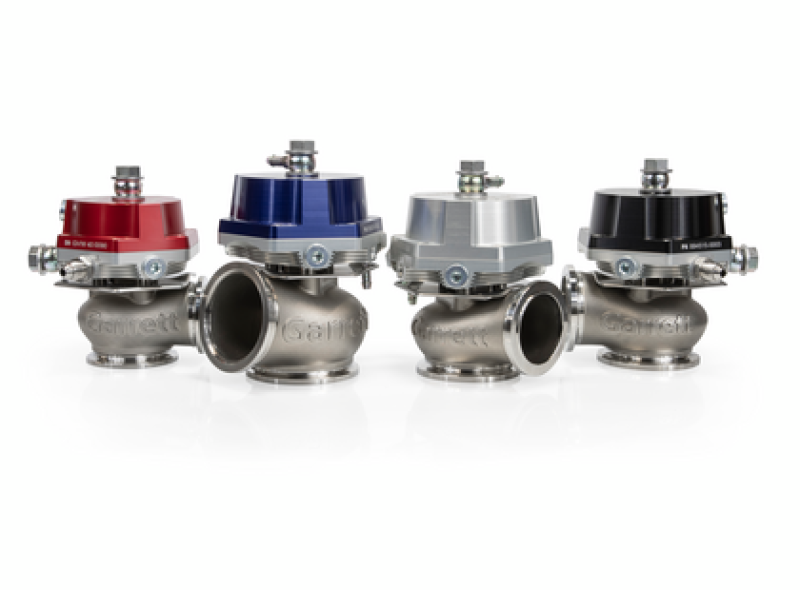

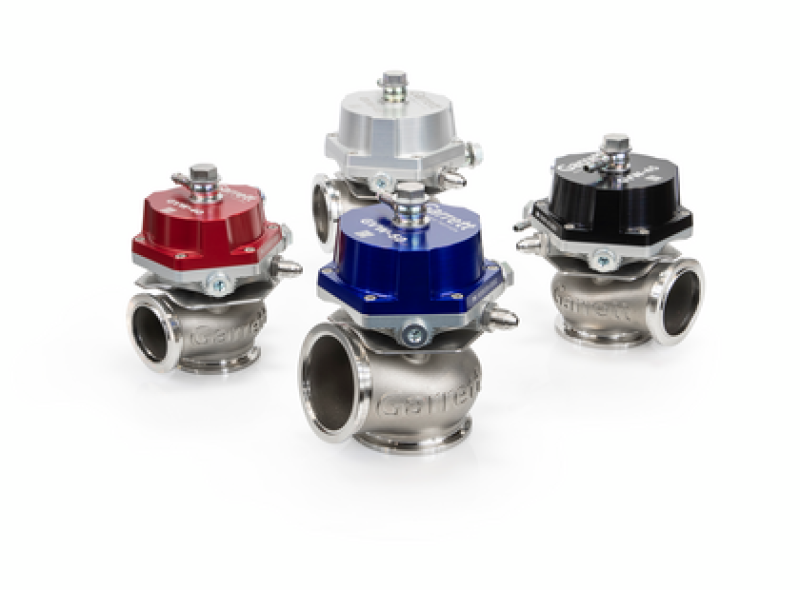

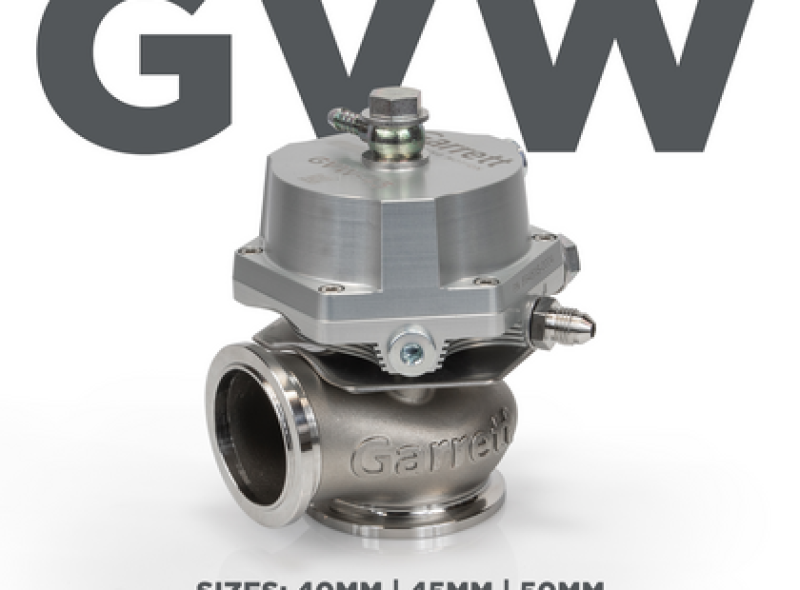

The GVW-50 is no simple wastegate. Garrett engineers spent over a year on the design — a project meant to take a few months absorbed a whole team for a year. The result: the GVW family (GVW-40, GVW-45 and GVW-50) flows 5% more than any competitor and stays completely consistent at high temperatures, whether you're drag racing or running endurance.

Shipped set to 1 bar (14.5 psi), the GVW-50 is fully configurable anywhere from 0.2 bar (2.9 psi) to 1.7 bar (24.7 psi).

Features

  • CFD tested for maximum flow and thermal efficiency
  • Optimized actuation stability and temperature resistance for reliability
  • Fully replaceable bushing components for longer service life
  • Easy Nomex diaphragm replacement
  • Optional watercooled actuator ports

Mechanical Specs

  • Valve diameter: 50mm
  • Maximum spring base pressure: 1.7 bar | 25 psi (1:1 backpressure ratio)
  • Minimum spring base pressure: 0.2 bar | 3 psi (1:1 backpressure ratio)
  • Port fitting, air: M10x1.0 to hose barb (hose ID 6mm | .25in)
  • Port fitting, liquid: M8x1.0 to AN-3

Material Specs

  • Valve housing: high-temp stainless steel rated up to 1050°C
  • Diaphragm: high-temp Nomex reinforced elastomer
  • Actuator cover: fully-machined anodized 6061 aluminum
  • Valve guide/bushing: Nitronic 60
  • Valve: high-temp stainless steel with plated stem
  • V-band: CNC machined 304 stainless steel
  • Flanges: fully machined 304 stainless steel
  • Springs: 17/7 PH stainless steel

Thermal Specs

  • Maximum exhaust gas temperature, peak: up to 1050°C
  • Maximum thermal stress (non-cooled): 270°C actuator body temperature during thermal cycle testing
  • Maximum thermal stress (watercooled): 130°C body temperature during thermal cycle testing

What's in the Box

  • Garrett GVW-50 50mm external wastegate
  • Springs
  • Fasteners
  • Fittings
  • V-bands and clamps
  • Flanges
