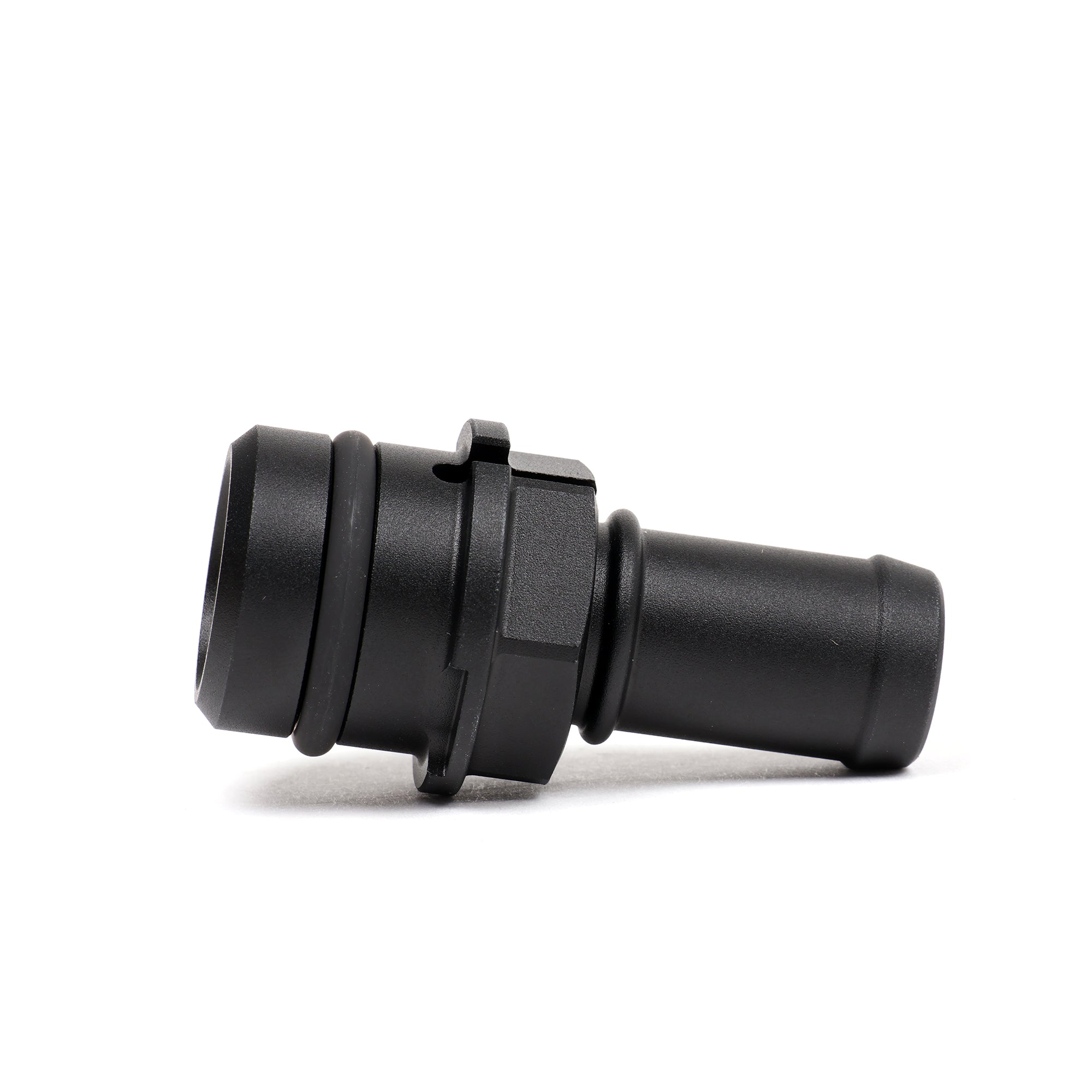

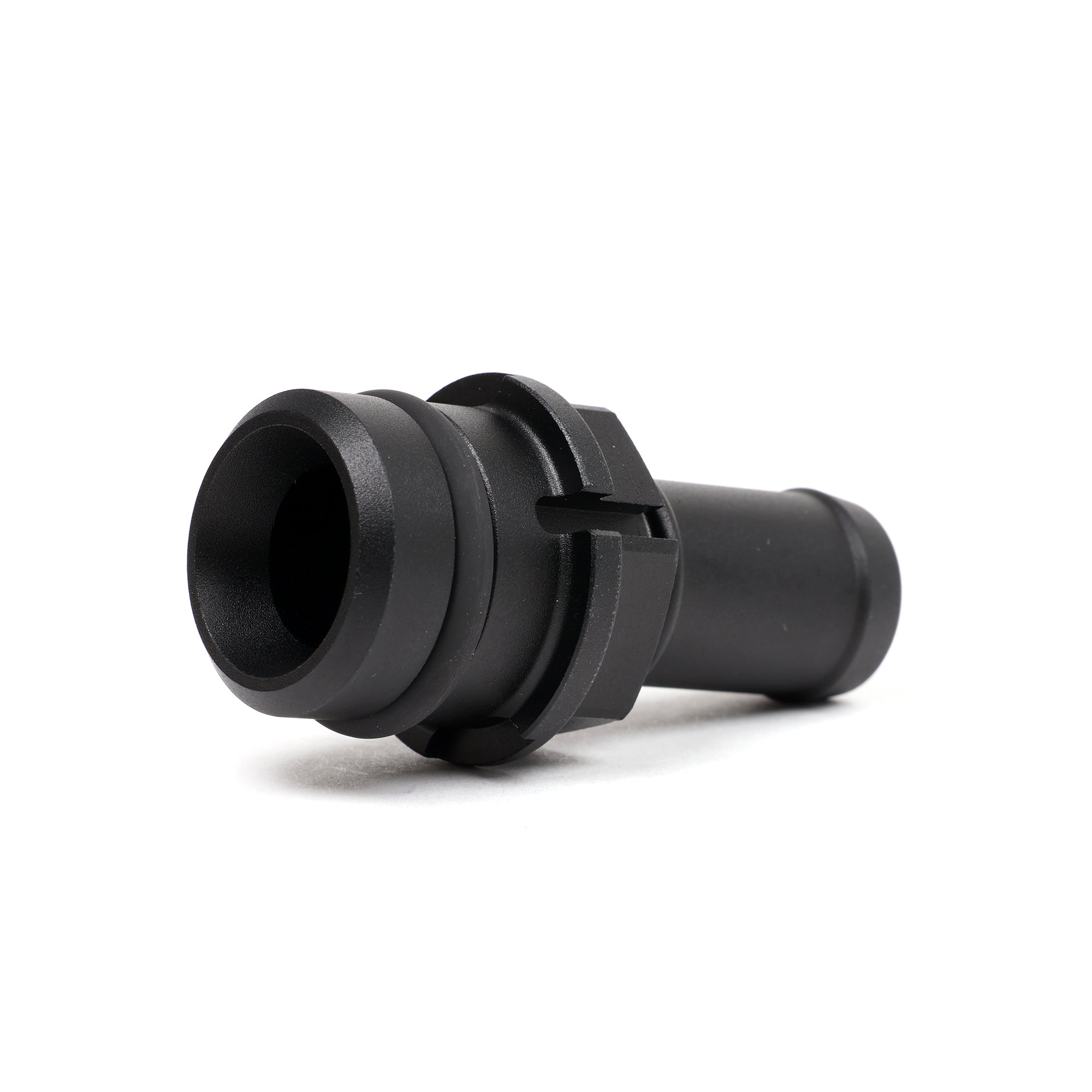

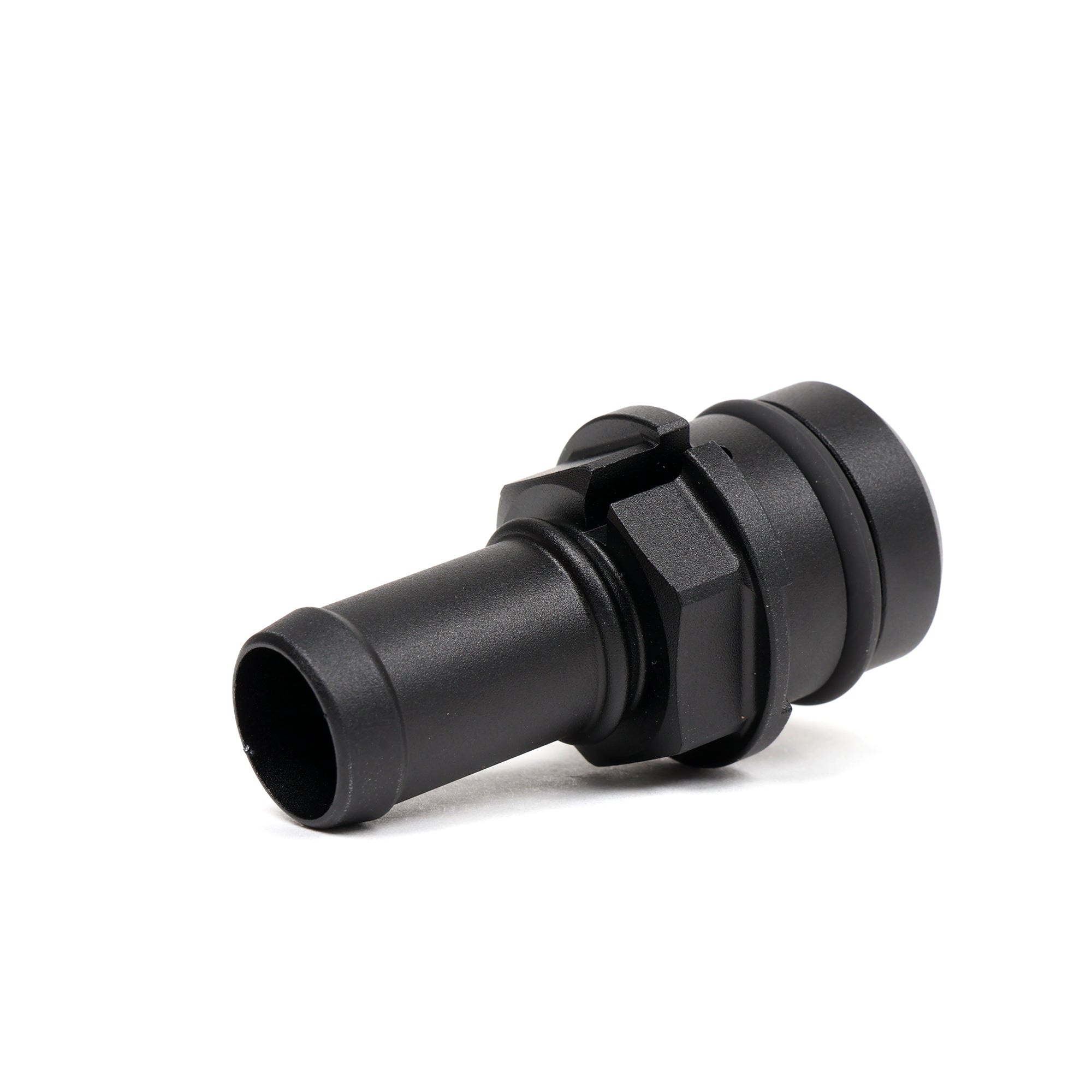

Swap a K series into an S2000 or a Miata and the factory steel hard line that routes the coolant return around the back of the engine simply does not fit — the firewall is in the wrong place and the heater core is not where Honda expected it. This Hybrid Racing fitting slips into the opening on the thermostat housing and gives you a 5/8 inch hose barb, so you can run a rubber hose straight from the heater core to the block. No hard line, no bending pipes that will not bend.

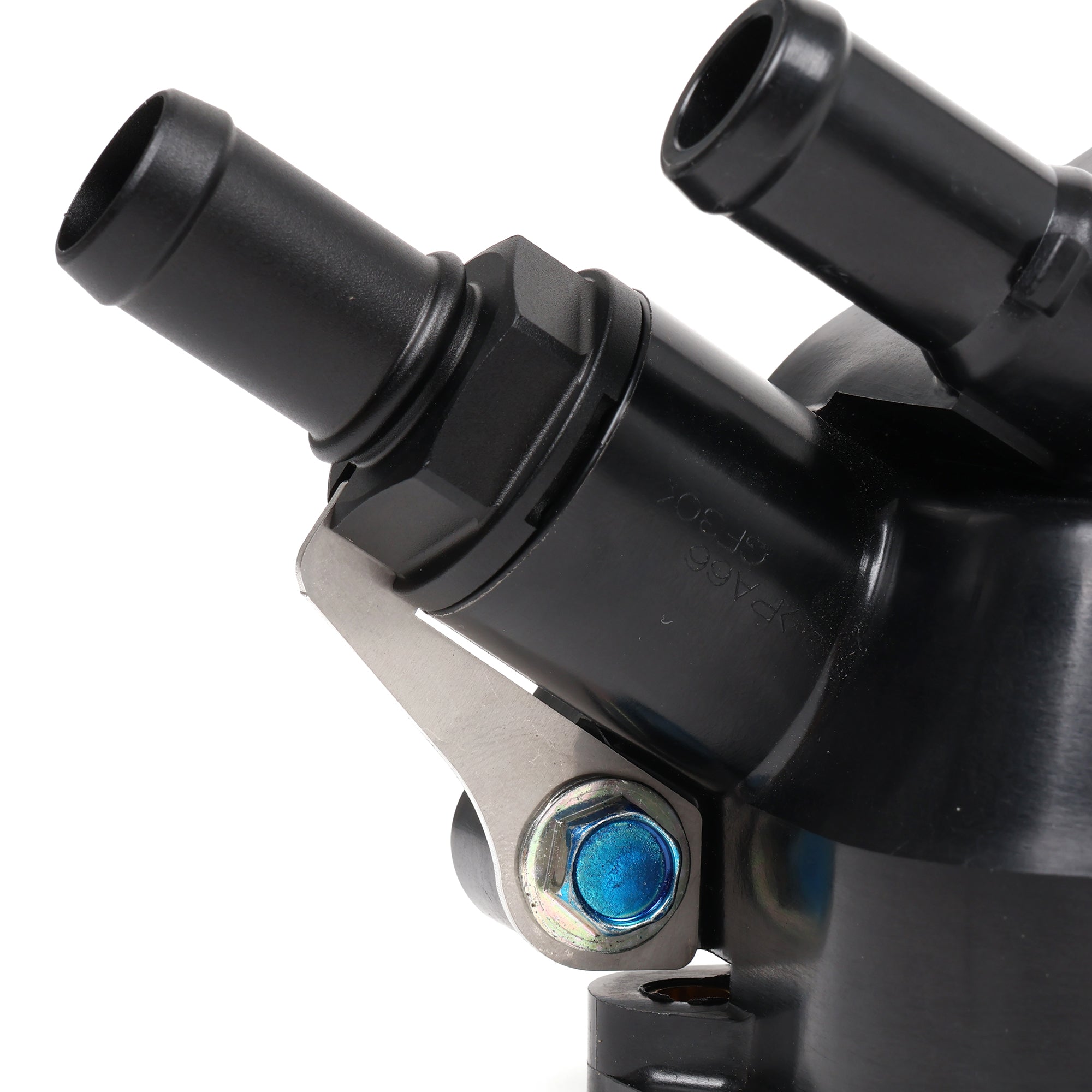

The kit includes two stainless steel retention brackets (one flat for PRB engines, one notched for RBB/RBC/R40 engines) and an O-ring. The fitting slips in, the O-ring seals it and the bracket clamps it down so it will not vibrate loose or push out under coolant pressure. It also works on the factory chassis if you are turbocharging an RSX or Civic Si and want to delete the factory hard line, or on EG/EK/DC K swaps for a cleaner engine bay.
Two Brackets Because PRB and RBB Housings Differ
The flat bracket is for PRB engines — K20A2, K20A3, K20Z1 and K24A1. The notched bracket is for RBB, RBC and R40 engines — K20Z3, K24A2, K24A4, K24A8, K24Z1, K24Z2, K24Z3 and K24Z7. The thermostat housing is shaped differently between those two engine families, and the notched bracket is cut to clear the RBB/RBC/R40 housing.
Features
- 5/8" barb coolant return fitting for rubber hoses
- Billet aluminum construction
- Compatible with PRB and RBC thermostat cases
- Fits K20A, K20Z, K24A and K24Z engines
- Includes O-ring seal and both retention brackets
- Slips into the thermostat housing opening — does not thread in
Fitment
- 2002-2006 Acura RSX Base/Type S
- 2004-2008 and 2009-2014 Acura TSX
- 2003-2007 and 2008-2012 Honda Accord (K24)
- 2002-2005, 2006-2011 and 2012-2015 Honda Civic Si
- 2002-2009 and 2010-2014 Honda CR-V
- 2003-2011 Honda Element
- K swaps into S2000, Miata, NSX, Lotus, EG/EK Civic and DC Integra

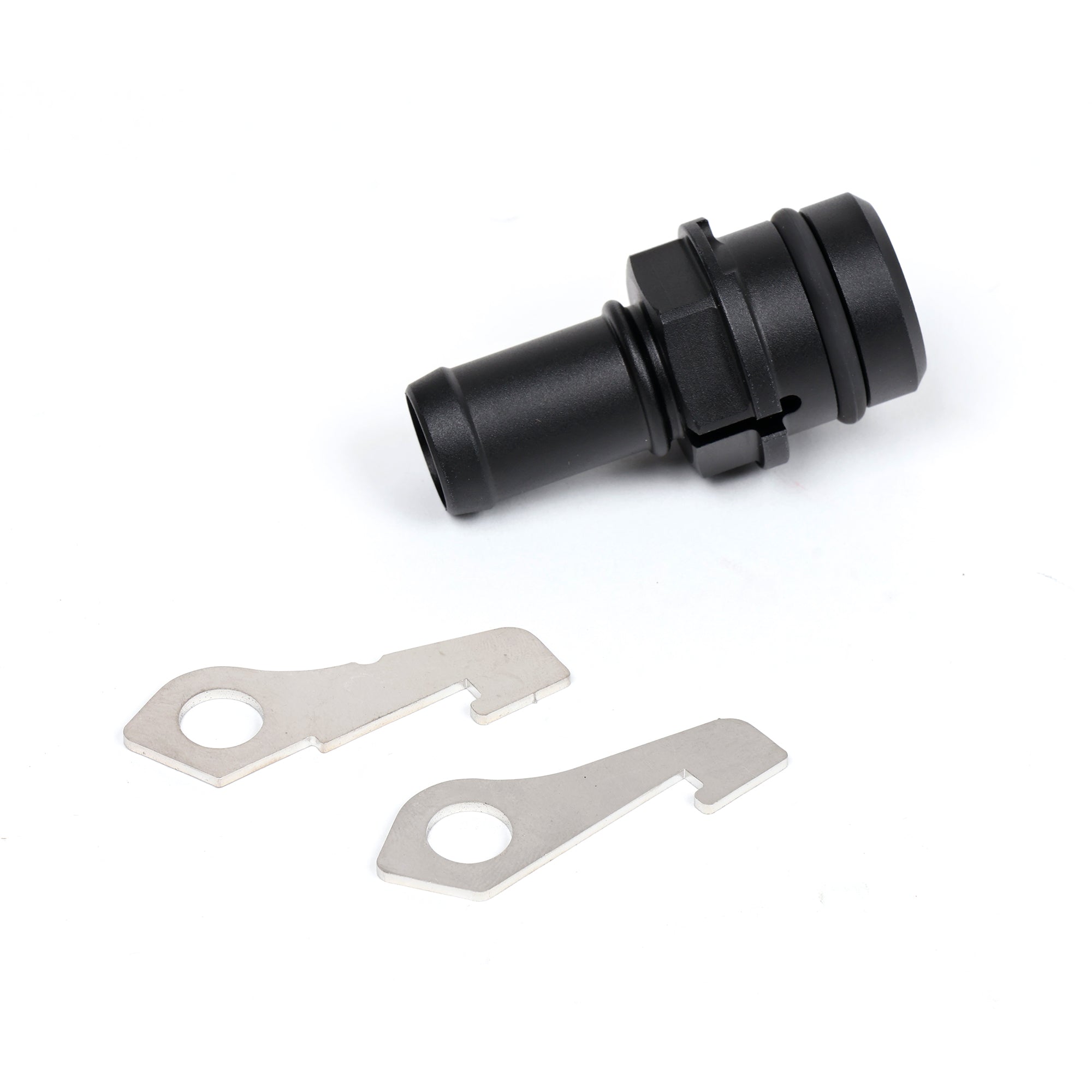

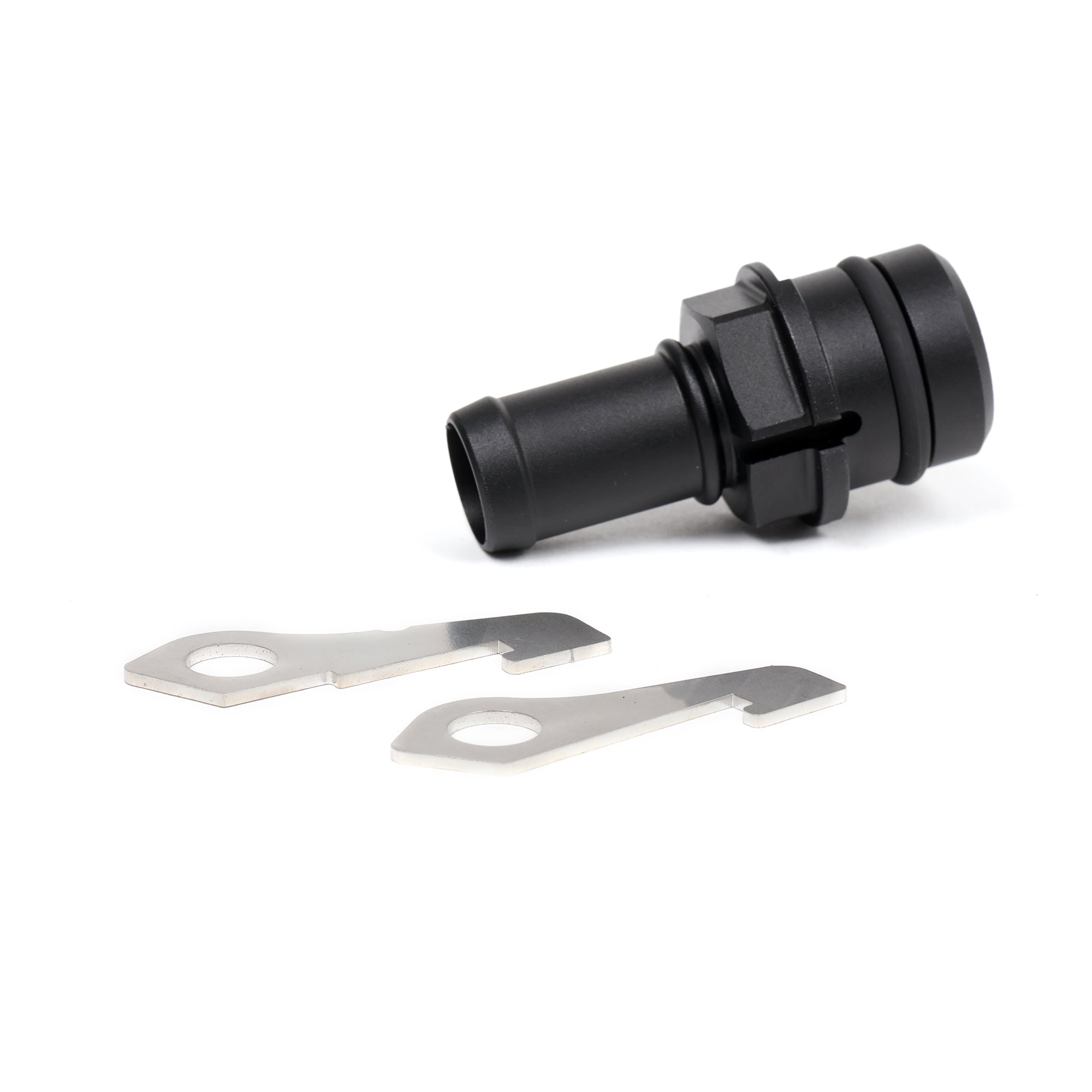

What's in the Box
- (1) 5/8" barb coolant return fitting
- (1) PRB thermostat case bracket
- (1) RBC thermostat case bracket
