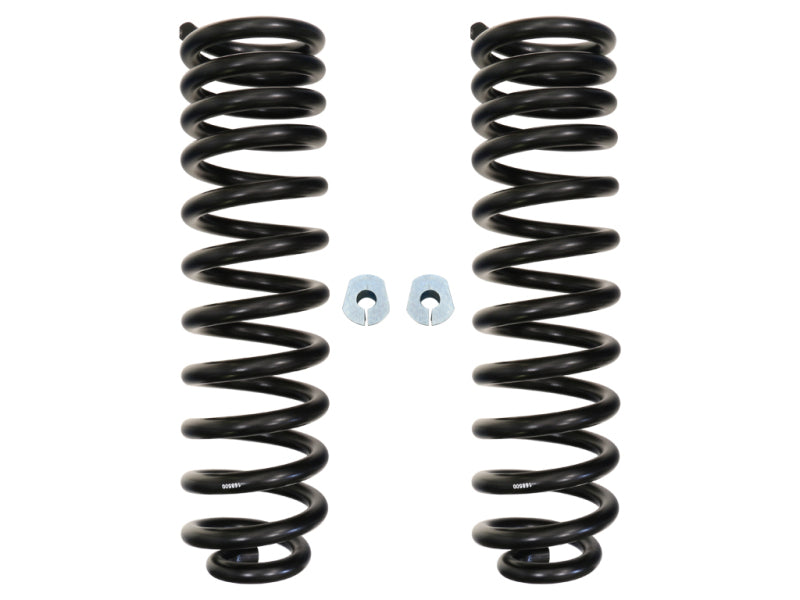

ICON 05-23 Ford F-450/F-550 Front 2.5in Diesel Dual Rate Spring Kit

Pre-Order
Regular price $479.55
Product INFO
  • Vendor ICON
  • SKU T14.1066964
  • Barcode 62514
Pre-Order
Ships when available
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 62514


Market Description

The ICON Vehicle Dynamics 2005-2026 Ford F-450 and F-550 Super Duty 2.5" coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 2.5" of lift height and feature a dual rate design optimized for use with trucks equipped with diesel engines. The dual rate design allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Caster correction cams are also included to ensure proper caster angle with the new, taller ride height. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2005-2026 Ford F-450 and F-550 Super Duty.

Associated Comments

  • APPLICATION NOTE #465: Included caster cams are not compatible with models with manual locking front hub on driver side ONLY. Models without front passenger side locking hub must omit cams and instead require aftermarket radius arms or 4-link conversion for proper wheel alignment, or an upgrade to passenger side manual locking hub for compatibility with caster cams.
  • APPLICATION NOTE #462: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
  • APPLICATION NOTE #30: An adjustable track bar may be needed to realign the axle from left to right, or to add additional atrength
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #494: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
  • APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
  • APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
  • APPLICATION NOTE #6: Springs are rated for diesel engines only
  • APPLICATION NOTE #1: Only fits 4WD models
  • Factory Wheels & Tires Fitment: Yes

Product Description - Extended

Beyond the added ground clearance, the dual rate design of ICON springs provides a softer initial rate for superb on-road comfort and a firmer secondary rate that delivers excellent bottoming resistance and superior off-road performance.

Features and Benefits

  • Caster cam kit included for ideal caster angles with ride height increase
  • Dual-stage, semi-gloss powder coat offers excellent corrosion resistance
  • Dual rate coil springs improve on and off-road ride quality over stock
  • 100% bolt-on system makes for an easy install
  • Lifetime warranty against sagging/breakage
  • 2.5" lift height

Product Description - Short

  • ICON 05-23 Ford F-450/F-550 Front 2.5in Diesel Dual Rate Spring Kit
  • COIL SPRING KIT

Product Description - Long

05-26 FORD F-450/550 FRONT 2.5" DIESEL DUAL RATE SPRING KIT

AAIA Part Type Description

Coil Spring Set

Product Description - Invoice

62514
