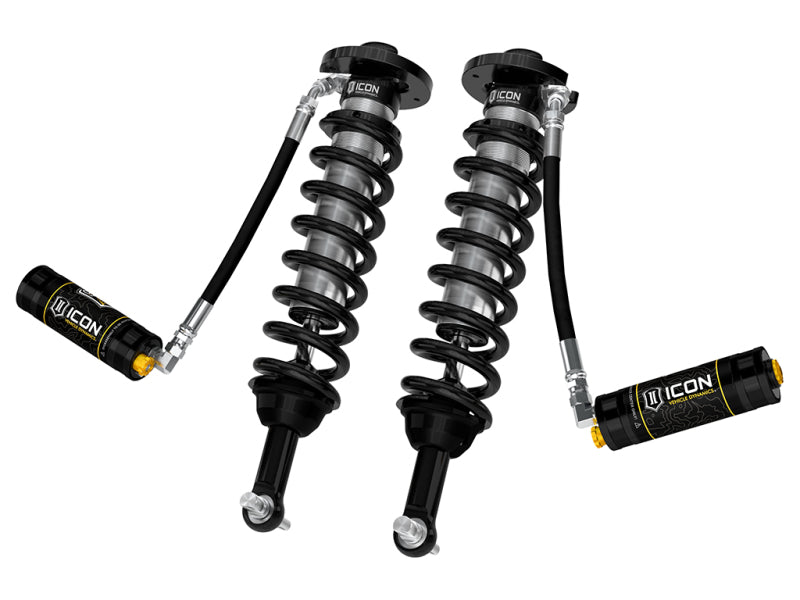

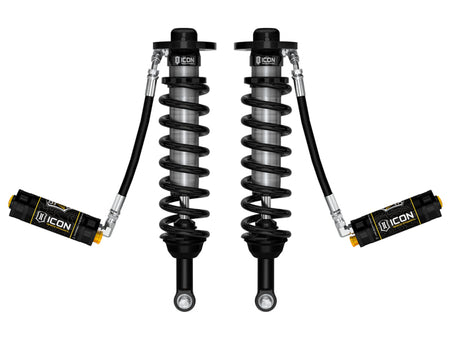

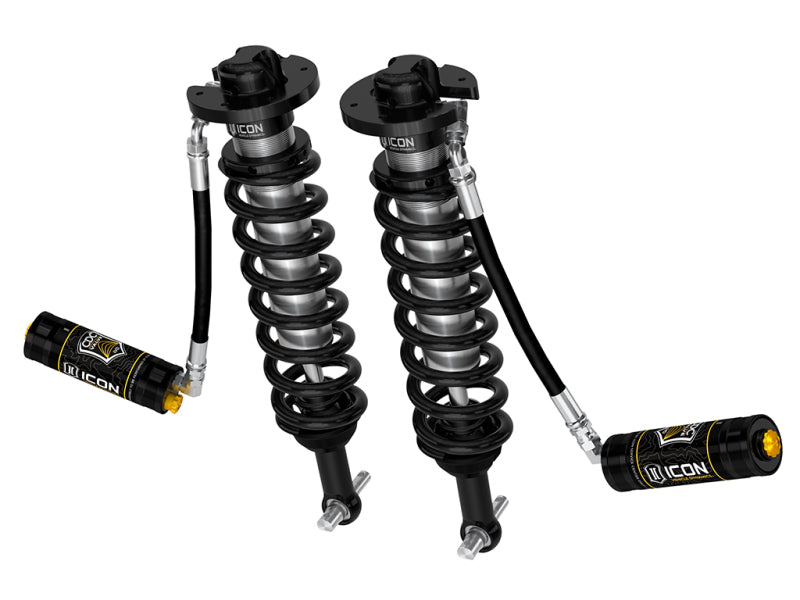

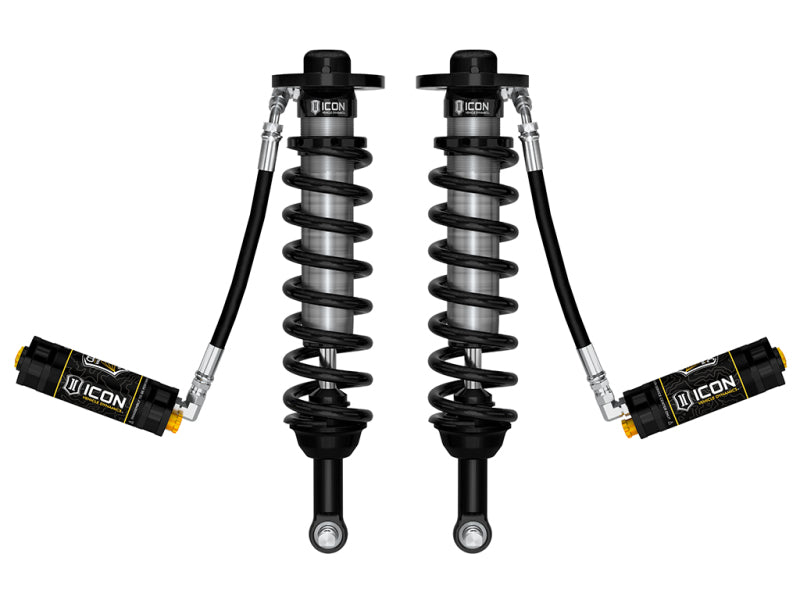

ICON 2021+ Ford F150 2WD 0-3in Lift Front V.S. 2.5 Series Coilovers Extended Travel RR w/ CDCV -Pair

Manufacturer Part # : 91819C

Market Description

The ICON Vehicle Dynamics V.S. Series 2.5” extended travel remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-2026 Ford F-150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of the ICON Delta Joint PRO upper control arm. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2026 F-150 2WD.

Product Description - Extended

ICON 2.5 Series coilovers with remote reservoirs with CDCV provide ride height adjustability from 0-3" of lift over stock. The larger 2.5” shock body and piston area over stock components provides improved damping ability and ride quality.

Associated Comments

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #649: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock
• APPLICATION NOTE #648: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• APPLICATION NOTE #152: ICON Delta Joint PRO Upper Control arms required
• APPLICATION NOTE #7: Only fits rear-wheel drive (2WD) models

Product Description - Short

• ICON 2021+ Ford F150 2WD 0-3in Lift Front V.S. 2.5 Series Coilovers Extended Travel RR w/ CDCV -Pair
• COILOVER KIT

Features and Benefits

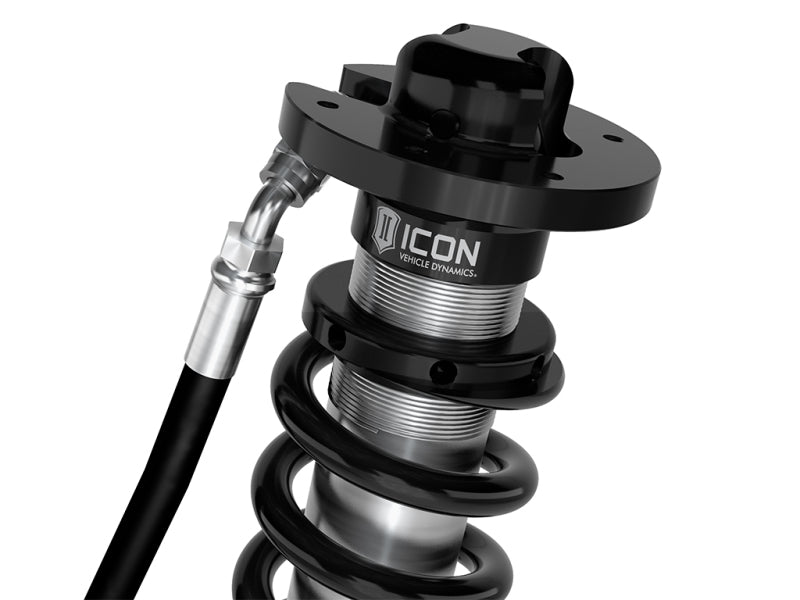

• External reservoirs to attain cooler operating temperatures during extended off-road use
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• Corrosion resistant CAD plated shock bodies with 7/8" shafts
• ICON CDCV equipped for external tuneability of your shocks
• 6061 Aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• High strength alloy CNC machined lower bar pins
• Adjustable 0-3" lift height over stock
• ICON engineered Eibach Springs

Product Description - Long

21-26 F150 2WD 0-3" 2.5 VS RR CDCV EXTENDED TRAVEL COILOVER KIT

AAIA Part Type Description

Coilover Set

Product Description - Invoice

91819C
