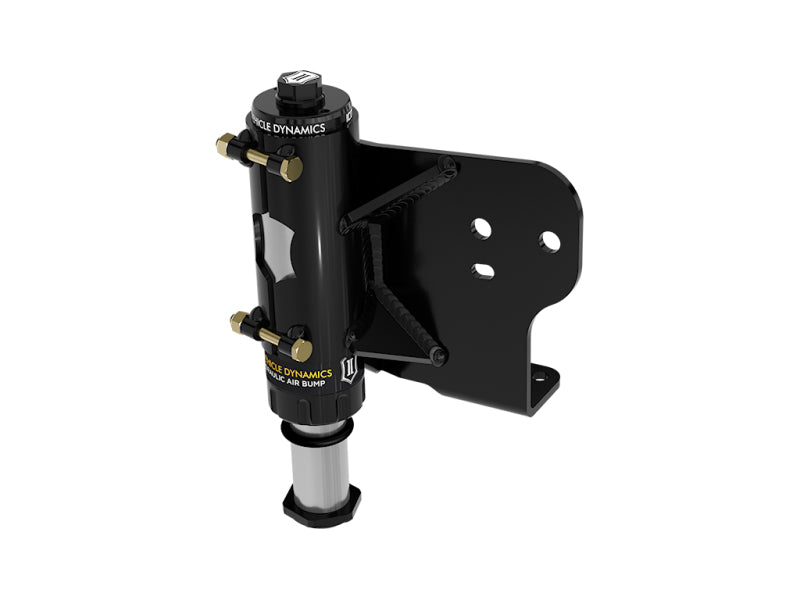

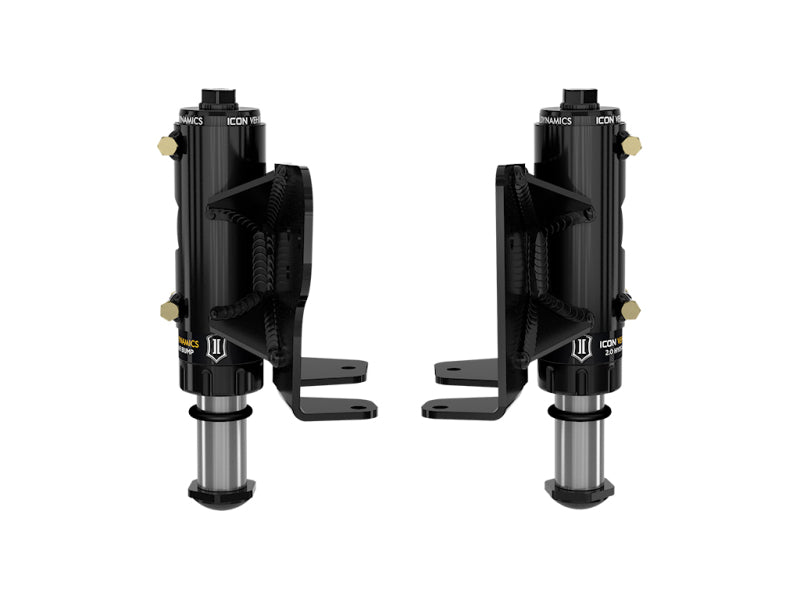

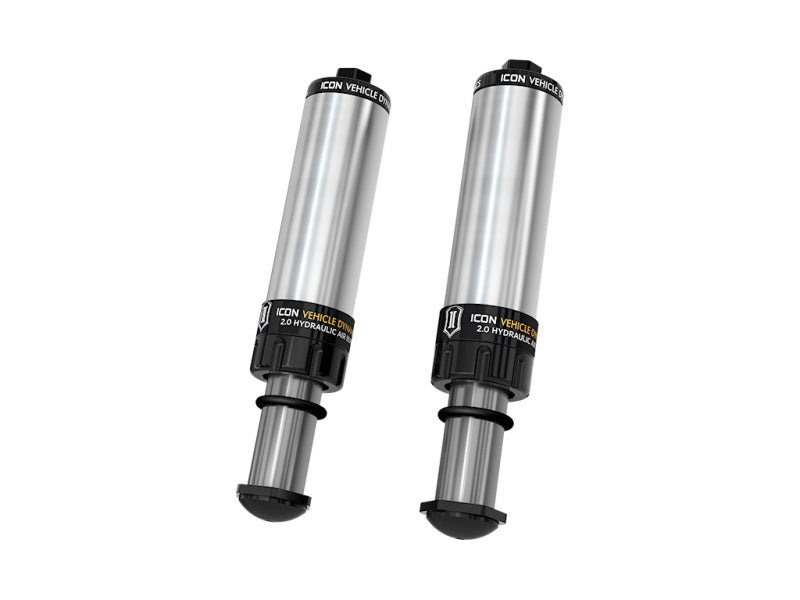

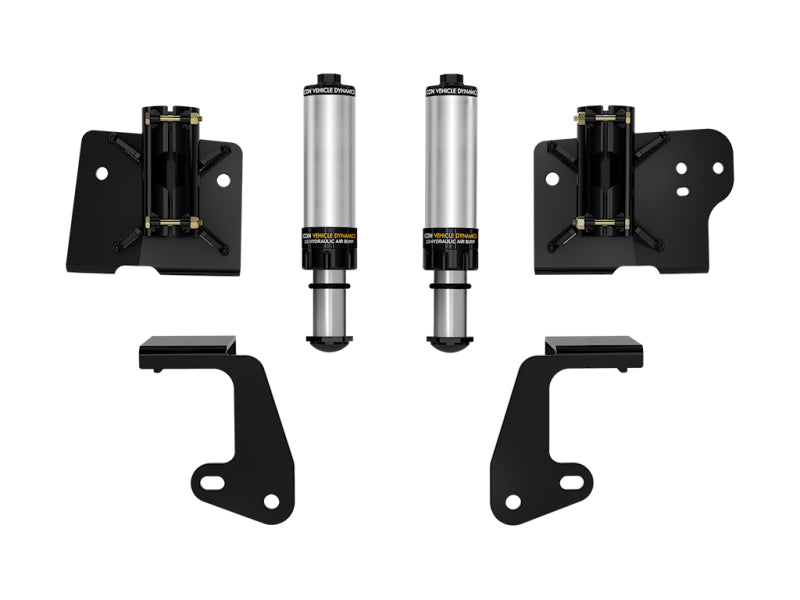

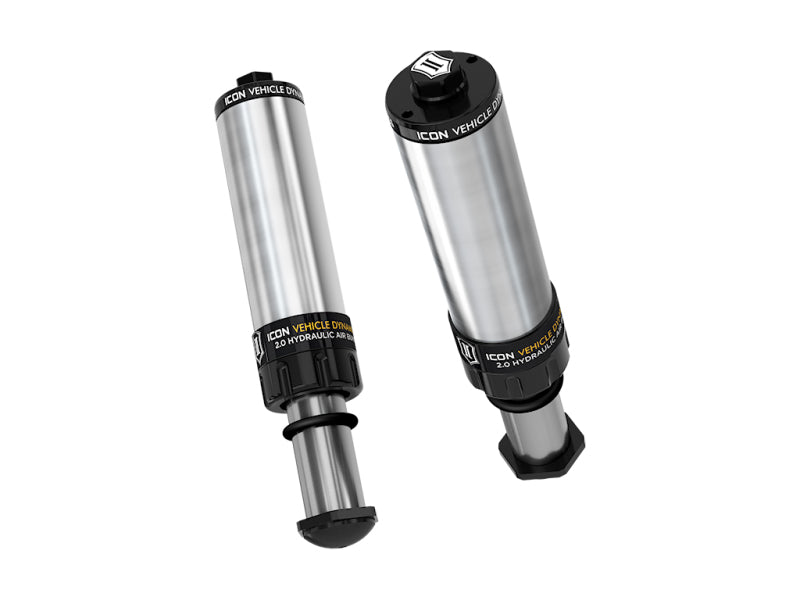

ICON 23-24 Toyota Sequoia Rear Hydraulic Bump Stop Kit - 0-4in Lift

Pre-Order
Regular price $1,209.85
Product INFO
  • Vendor ICON
  • SKU T14.1066966
  • Barcode 56114
Pre-Order
Ships when available
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 56114


Market Description

  • While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2023-2026 Toyota Sequoia Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation.
  • This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair. With no major cutting, welding, or fabrication required you have the option to return the vehicle back to its stock form. The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound – This translates into a harsh ride and poor handling in rough terrain. ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.

Product Description - Extended

The ICON 2023-2026 Toyota Sequoia Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick.

Associated Comments

  • APPLICATION NOTE #311: Compatible with 0-4" of rear lift over stock on non-TRD Sequoia or 0-2" of rear lift on TRD Sequoia
  • OEM Wheels & Tires Fitment: Yes

Features and Benefits

  • Position and velocity sensitive technology exponentially increases bottom-out resistance
  • Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
  • 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
  • Vehicle specific bump stop tune to provide smooth engagement and best ride quality
  • Fully reversible to factory configuration with no cutting required
  • Multi stage CAD plated body for maximum corrosion resistance
  • Heavy duty 1 ¼” CNC machined nitro steel shaft
  • Double sealed high pressure Schrader valve
  • Replaceable noise reducing striker pad
  • Fully serviceable

Product Description - Short

  • ICON 23-24 Toyota Sequoia Rear Hydraulic Bump Stop Kit - 0-4in Lift
  • BUMP STOP KIT

Product Description - Long

23-26 SEQUOIA REAR HYD BUMP KIT

AAIA Part Type Description

Suspension Bump Stop

Product Description - Invoice

56114
