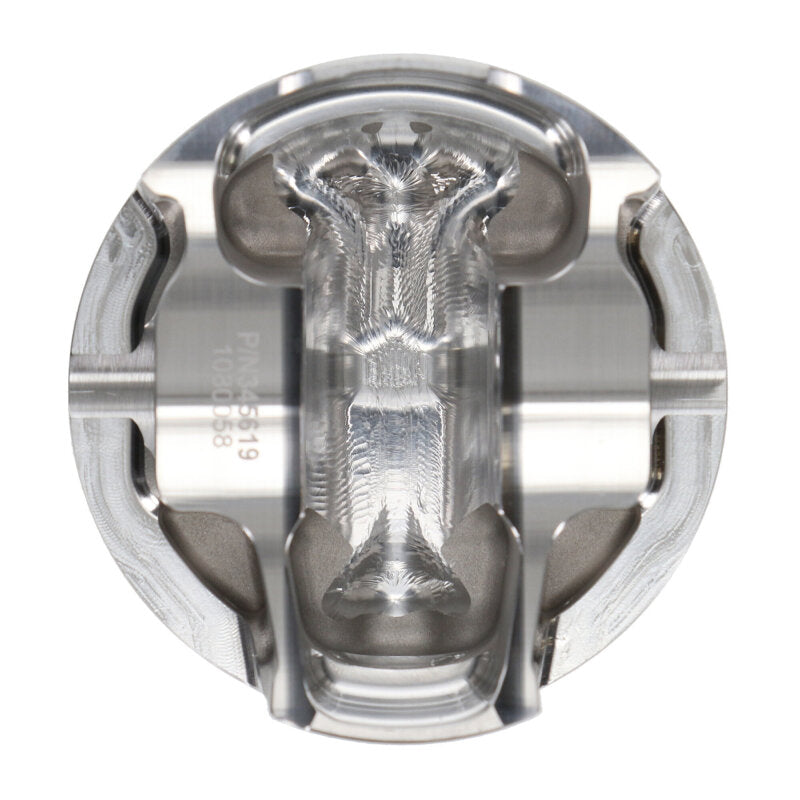

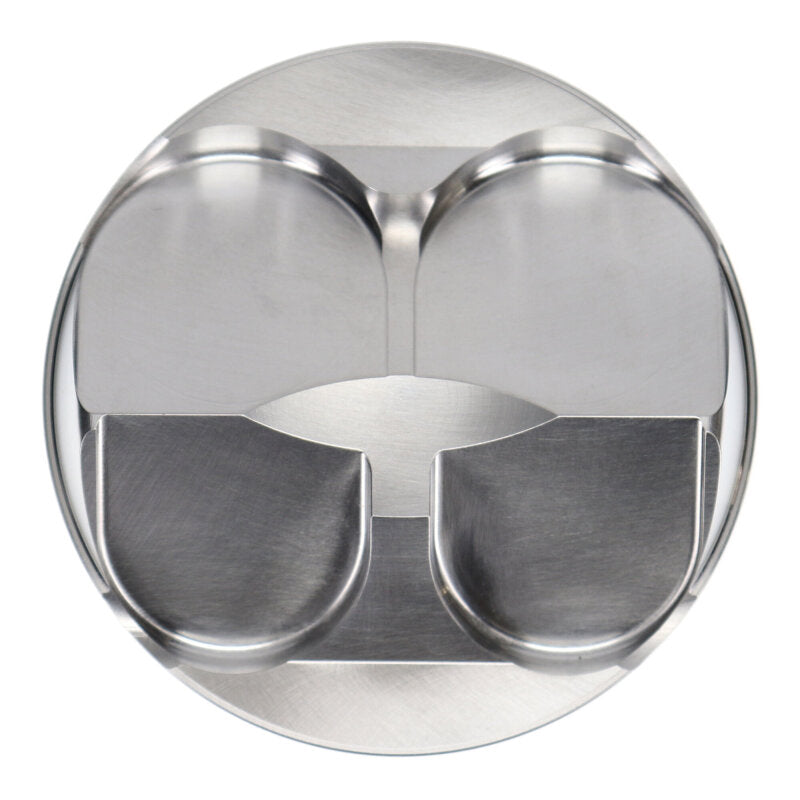

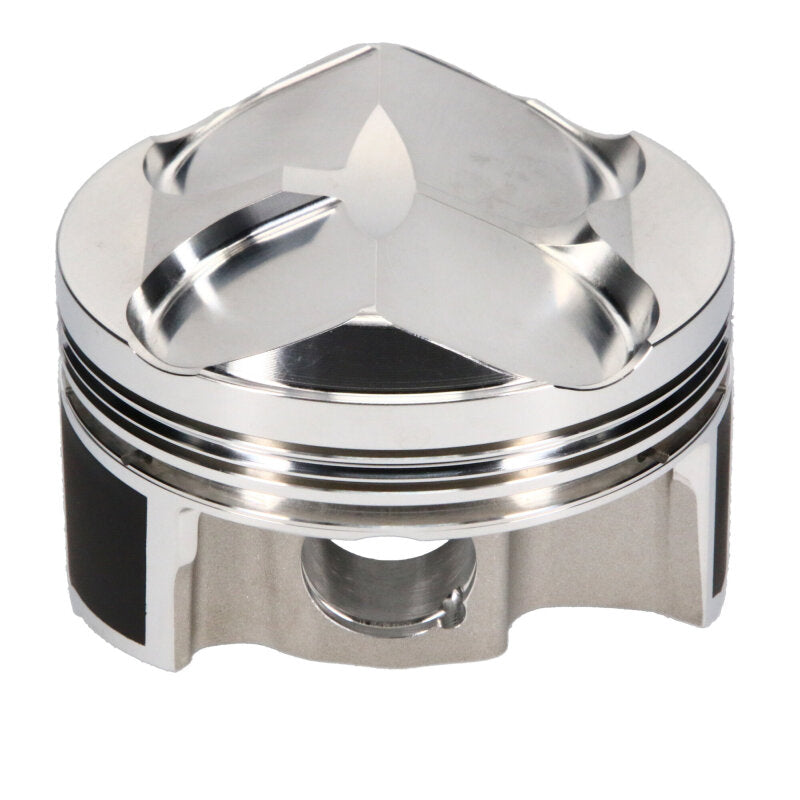

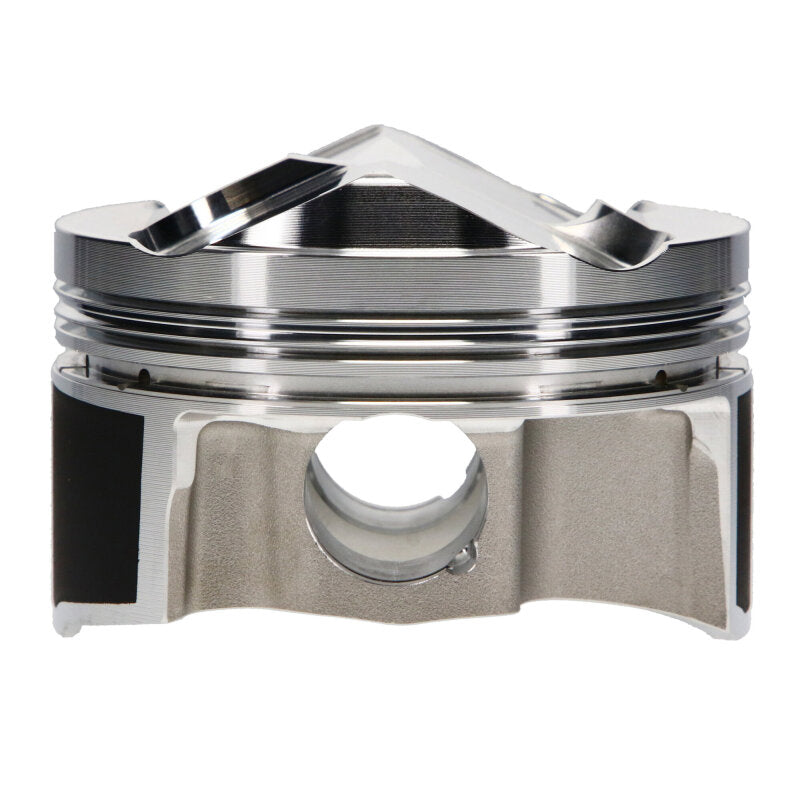

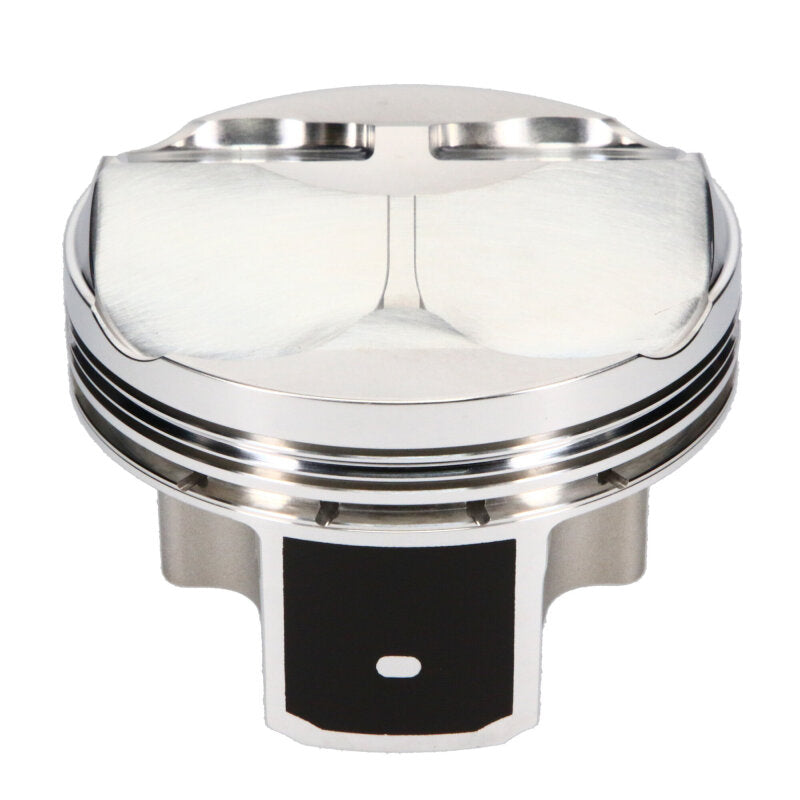

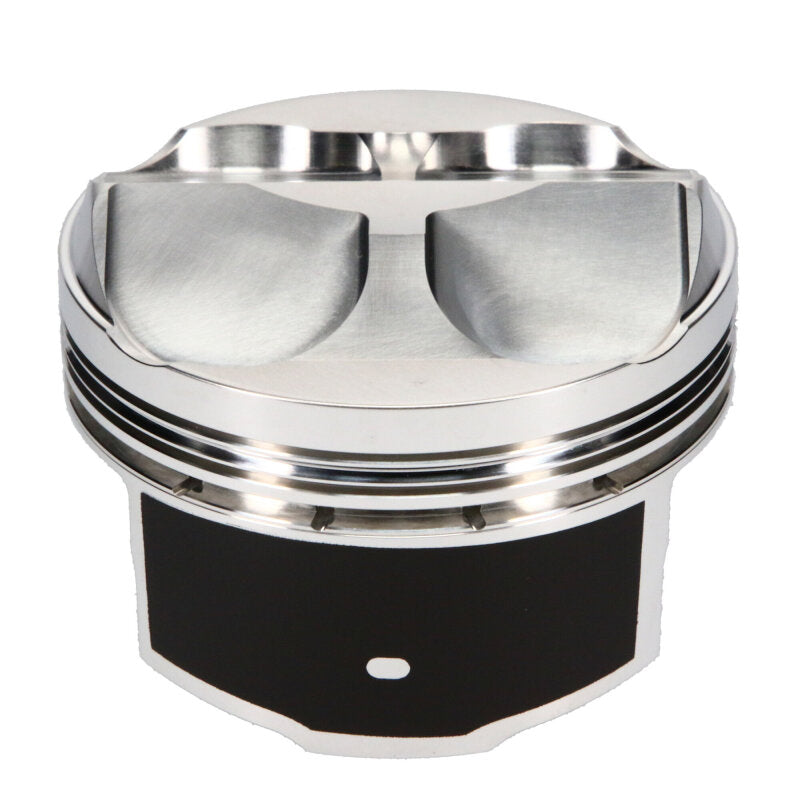

JE Pistons Honda K-Series 87.5mm Bore 10.0:1 CR 1.176 CD Dome Piston Kit - Set of 4

Pre-Order
Regular price $949.99
Product INFO
  • Vendor JE Pistons
  • SKU T14.1004853
  • Barcode 376665
Pre-Order
Ships when available
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 376665


Market Description

  • Sport Compact, Import and European forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Honda and Acura K24A Engines. JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features
  • Accumulator Groove, Smooth Crown Finish, Pin Fit, and Skirt Coat. Sport Compact, Import and European Pistons are engineered, forged and machined 100% in the USA

Features and Benefits

  • Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
  • Skirt Coat: Skirt Coat reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Smooth Crown Finish: Deburs all areas around the valve pocket and dome area, to reduces stress risers and prevent hot spots.
  • Designed specifically for Honda and Acura K24A Engines. To provide optimized performance durability
  • Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA

Associated Comments

These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Product Description - Short

JE Pistons Honda K-Series 87.5mm Bore 10.0:1 CR 1.176 CD Dome Piston Kit - Set of 4

Product Description - Extended

87.50 mm/3.445 in. Bore - 10.0:1CR - 1.176 CD - 4 Cyl. Piston Kit

Product Description - Long

Piston Set, 2618, 3.445 Bore, 1.176 CD, 0.866 Pin, Set of 4

AAIA Part Type Description

Engine Piston Kit
