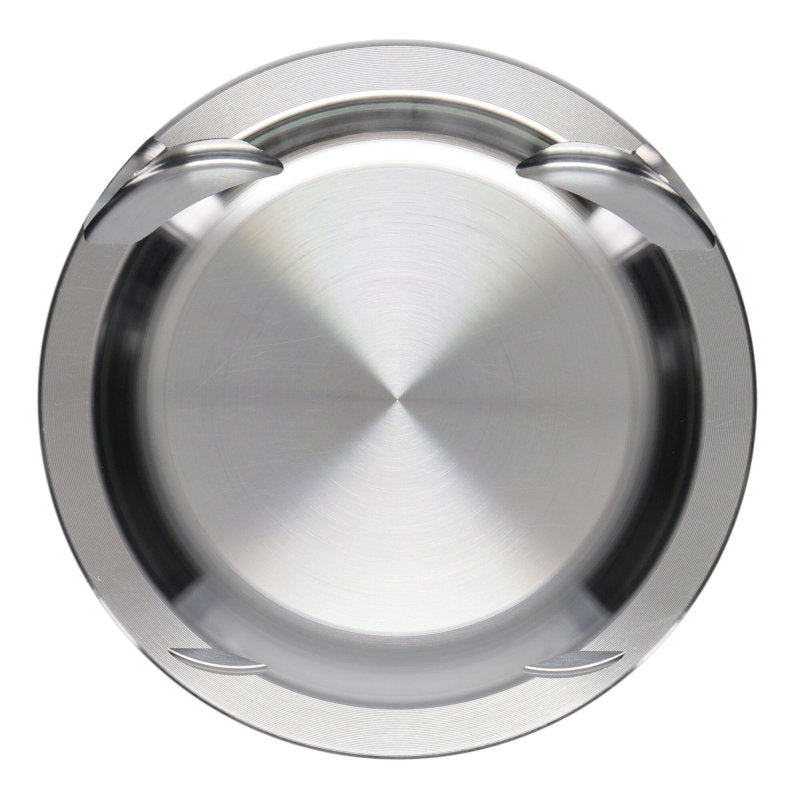

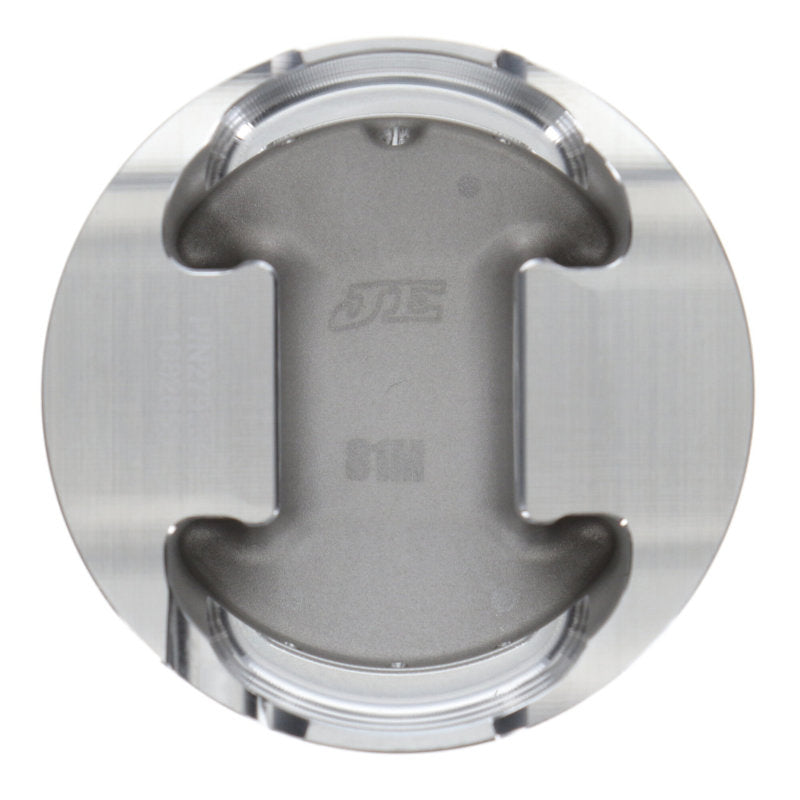

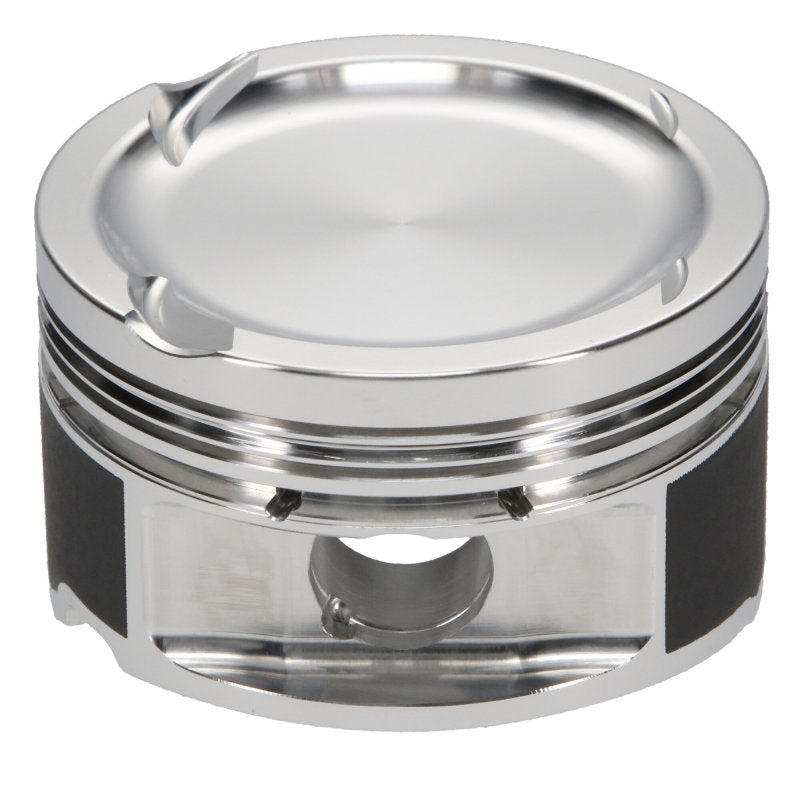

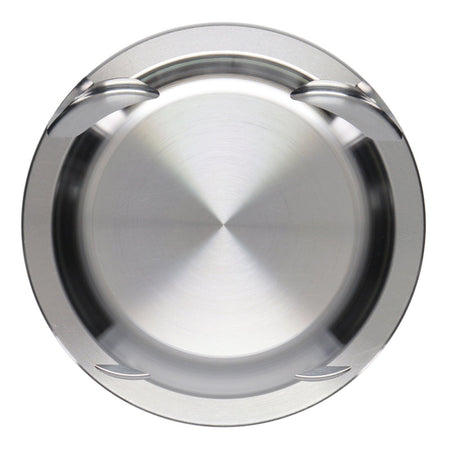

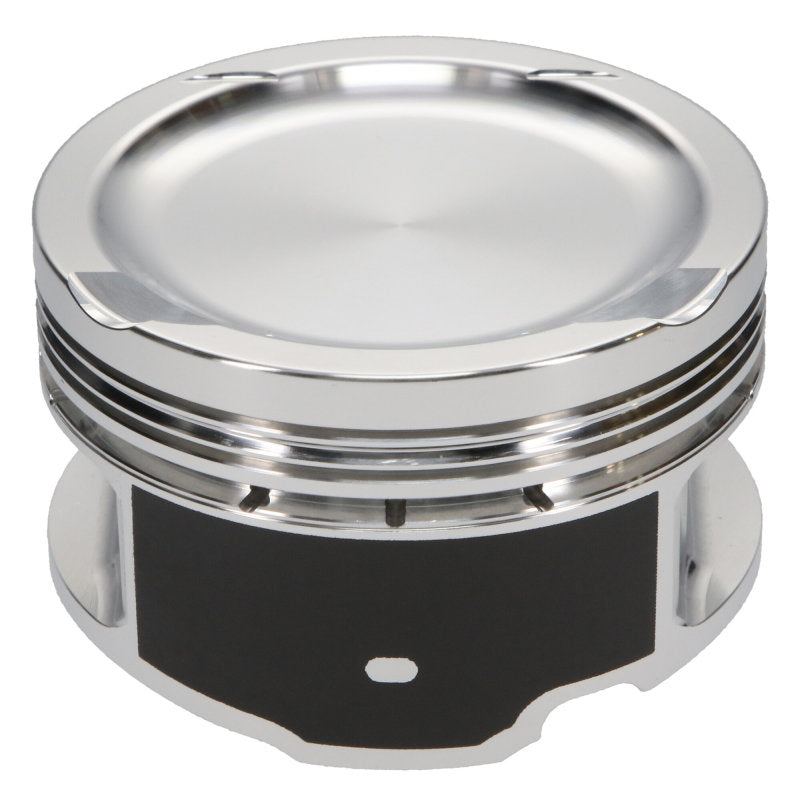

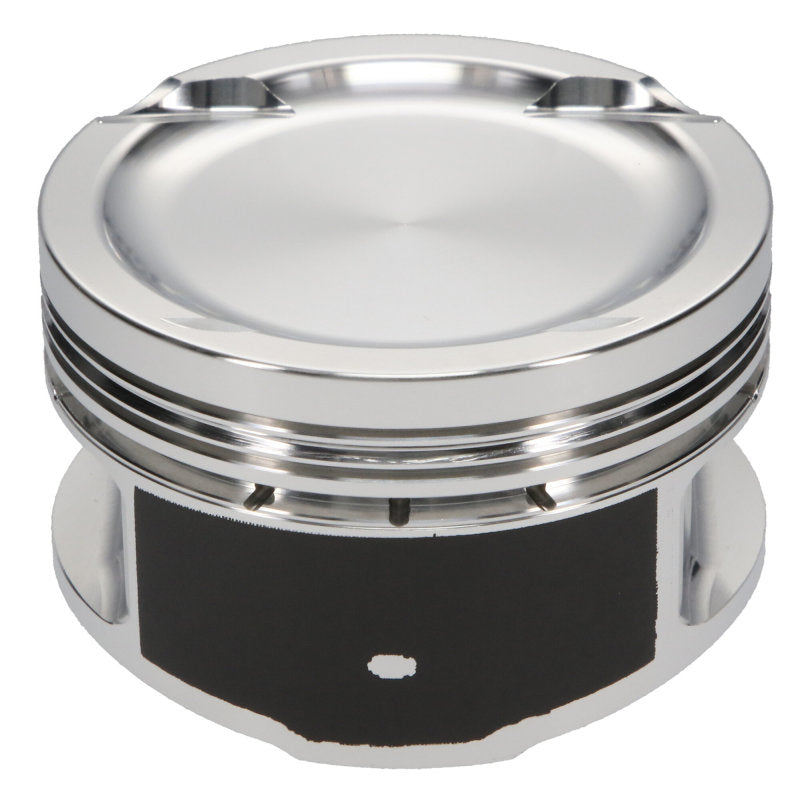

JE Pistons Ultra Series Volkswagen 1.8T 82mm Bore 1.281in Comp Height - Piston Set of 4

Pre-Order
Regular price $1,124.99
Product INFO
  • Vendor JE Pistons
  • SKU T14.361926
  • Barcode 367857
Pre-Order
Ships when available
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 367857


Market Description

  • Ultra Series forged pistons from JE are the industry’s strongest, most fully featured pistons available off the shelf. Offered for Volkswagen and Audi 1.8T APH Engines. Ultra Series Pistons feature JE’s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with the following custom level features
  • Accumulator Groove, Pin Fit, Thermal Crown, Lateral Gas Ports, and Skirt Coat. Ultra Series pistons are made 100% in the USA.

Features and Benefits

  • Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
  • Lateral Gas Ports: This process mills slots into the top of the top ring groove and provides a pathway for combustion pressure to get behind the top ring. Resulting in increased ring seal and is most common in circle track applications.
  • Thermal Crown: Applied to the piston crown, this thermal barrier coating reflects heat back into the combustion chamber to improve exhaust gas velocity and scavenging while reducing heat transfer to help extend piston life.
  • JE’s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds.
  • Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
  • Skirt Coat: Skirt Coat reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Designed specifically for Volkswagen and Audi 1.8T APH Engines. To provide optimized performance durability
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA

Associated Comments

These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Product Description - Extended

JE Ultra, VW, 1.8T 20V - 20mm Pin, 3.228 in. Bore, 9.50:1, Inverted Dome/Dish, 4 Cyl. Piston Kit

Product Description - Short

JE Pistons Ultra Series Volkswagen 1.8T 82mm Bore 1.281in Comp Height - Piston Set of 4

Product Description - Long

Piston Set, 2618, Inv Dome/Dish, 3.228 Bore, 1.281 CD, 0.787 Pin, Set of 4.

AAIA Part Type Description

Engine Piston Kit
