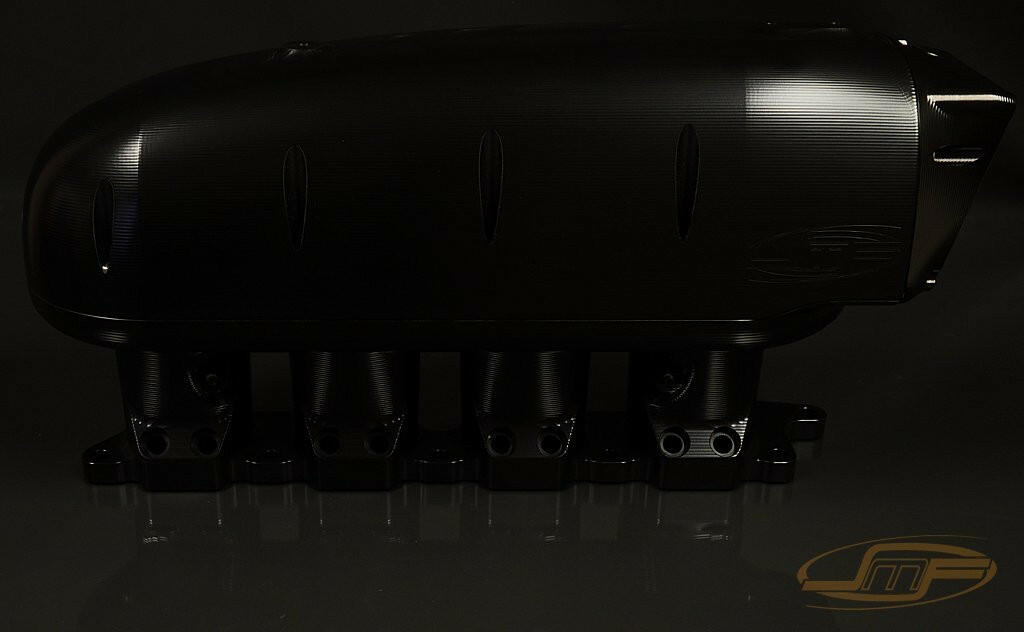

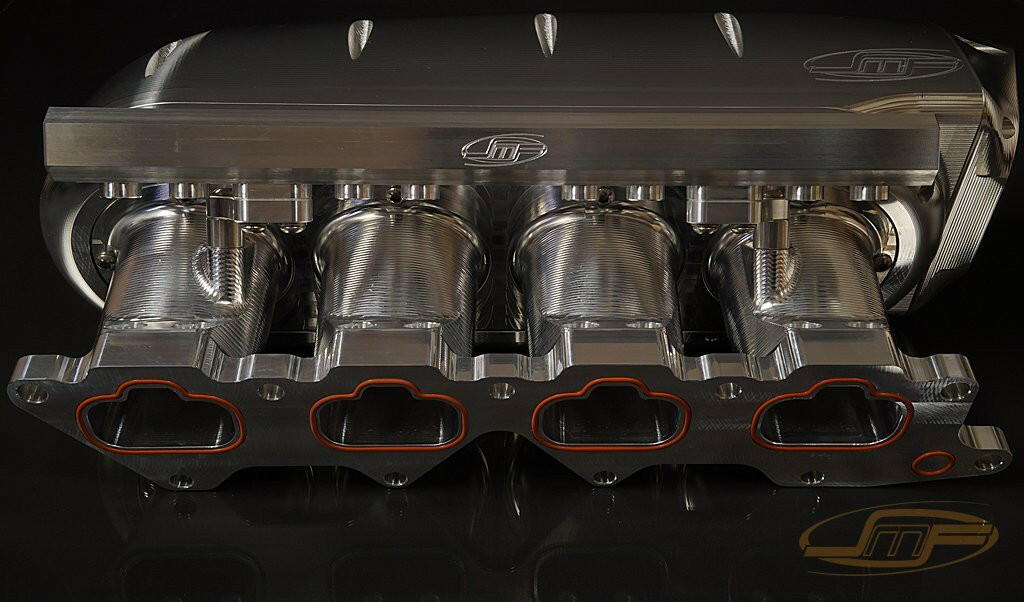

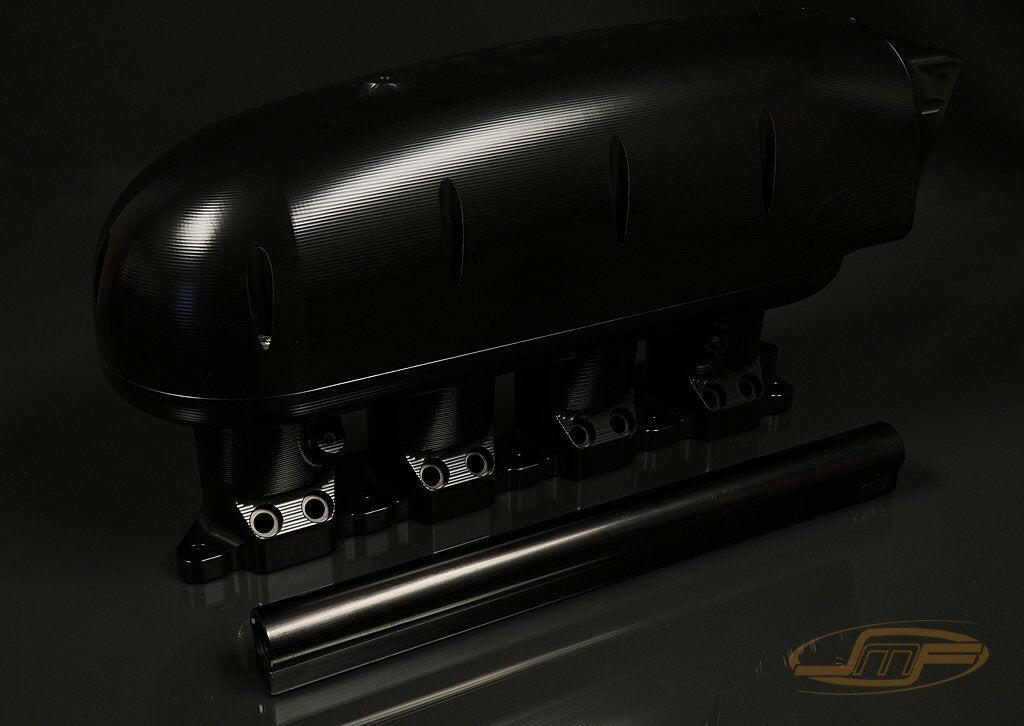

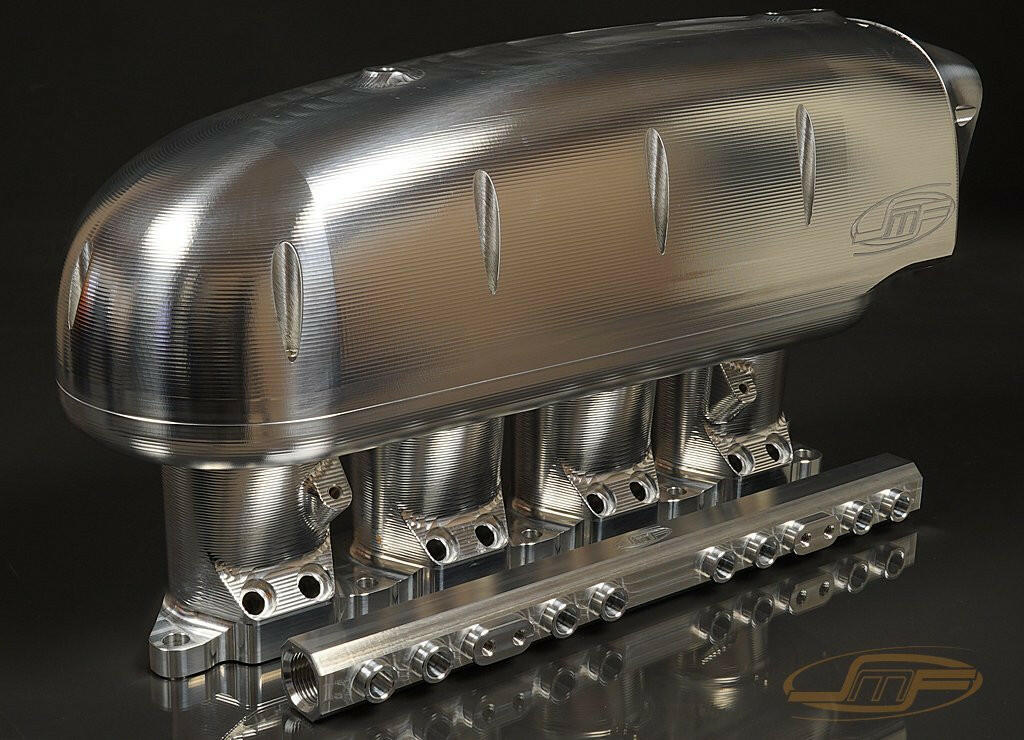

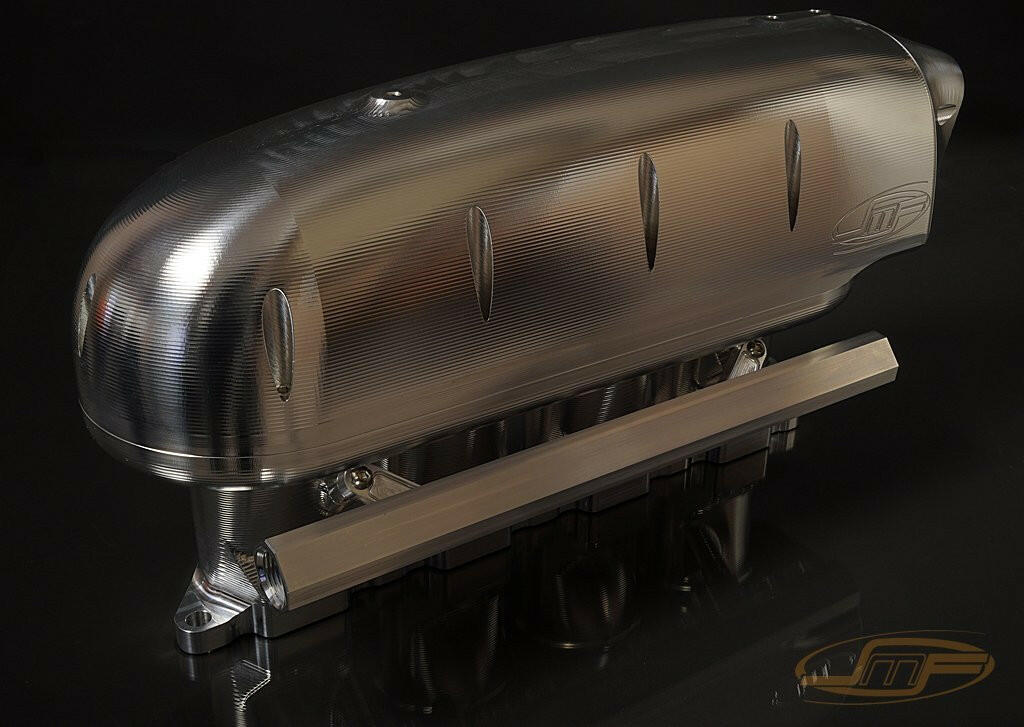

JM Fabrications "Drag Version" Intake Manifold

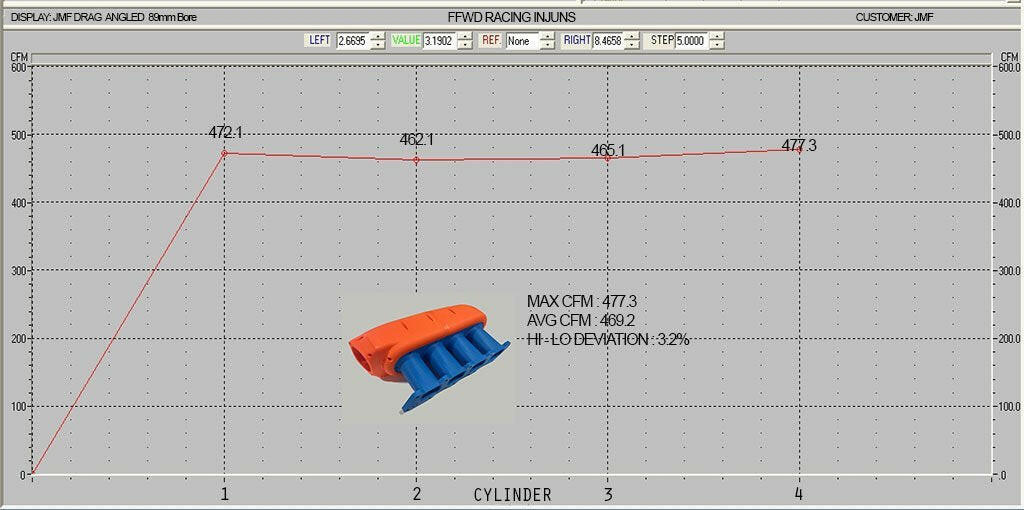

The JMF "DRAG" version intake manifold is for the hard core enthusiasts putting down serious power. If you need one of the highest flowing 4G63 intake manifolds available look no further. Over a year in the making, our DRAG manifold went through a complete overhaul. No corners were cut when it came to the design and functionality of this manifold. Every component on this manifold is CNC machined from billet aluminum, not a single weld is present. Extensive flow testing was conducted on several prototypes until we found the perfect design with the best balance possible.

Our manifolds are designed for EVO's with eliminated EGR. Some modifications to your upper intercooler pipes may be needed as this manifold sits down a lot lower than stock. If using the Accufab and other aftermarket throttle bodies please note that the throttle cable and TPS sensors may need modifying. It may be necessary to rotate your throttle body 180° for proper cable clearance. If you need additional vacuum ports our Vacuum Distribution Block is a great option for up to 6 more ports.

NEW: These manifolds now have NOS provisions standard. The NOS provisions are a small machined area on the runner section that will allow the end user to drill and tap for NOS nozzles should they have the need. There is a small dimple to mark center but they are NOT drilled so there is no need to plug any holes.

Features

Made form 6061-T6 aircraft quality aluminum
CAD designed
Fully CNC machined components, no welds
8 injector setup with a single fuel rail (injectors not included)
Modular bolt together design for a cost effective upgrade
15° throttle body inlet eliminates turbulence and adds more intercooler pipe clearance
CNC machined velocity stacks
Tapered runners
5.68L Plenum Volume
O-ring'd head flange & TB flange eliminates the need for a gasket
5 port vacuum plate with 1/4" NPT threads
Several different finishes and throttle body flange options available
NOS Provision (small dimple, not drilled)
Black anodized finish available, please contact us for current pricing

Applications

2003-2006 Mitsubishi Lancer Evolution 8/9

What's In The Box?

DRAG version intake manifold
(2) 3/8" brass hose barb
(1) 1/4" brass hose barb
(1) 1/8" brass hose barb
(1) 1/4" NPT brass plug
Custom stainless steel dipstick tube
Fuel rail mounts, spacers, and hardware
Throttle cable bracket and hardware
Stainless steel throttle body bolts
10AN fuel rail

Warranty

This item carries a limited lifetime warranty to the original owner. Any incident from nitrous and/or other alternative fuels will void the warranty. Thread damage from improper torque not covered.
