How to Install a Hondata Base Map on Your FK8 or FL5 Civic Type R (2025 Edition)
If you're looking to unlock more performance from your Civic Type R, installing a Hondata base map is one of the best first steps. Whether you're driving a 2017–2021 FK8 or the newer 2023–2025 FL5, this step-by-step guide will walk you through the full process using Hondata FlashPro.
⚠️ Important: ECU Must Be Unlocked
Before you can flash any tune or base map with Hondata, your ECU must be unlocked.
- New FL5/FK8s: The ECU is locked from the factory. FlashPro will not work unless it is unlocked first.
- Option A: Send your original ECU to IMW-Tuned / Innovative MotorWorks - Innovative MotorWorks / IMWTuned.com for unlocking. They offer fast turnaround and overnight return shipping in most cases.
- Option B: Purchase a used, locked or unlocked ECU and have your original cloned to the used ECU. This is what I personally did for my FL5. I got a used ECU off Ebay Electronics, Cars, Fashion, Collectibles & More | eBay for a few hundred dollars. This preserves your factory unit while enabling tuning.
What is a Base Map?
A base map is a pre-configured tune provided by Hondata for your vehicle. It's designed to work with specific bolt-ons like intakes or downpipes and can provide better throttle response, increased power, and smoother drivability. As of 2025, Hondata has expanded and refined its offerings for both the FK8 and FL5 platforms.
🧰 What You'll Need
- Unlocked ECU (via Innovative MotorWorks or used ECU)

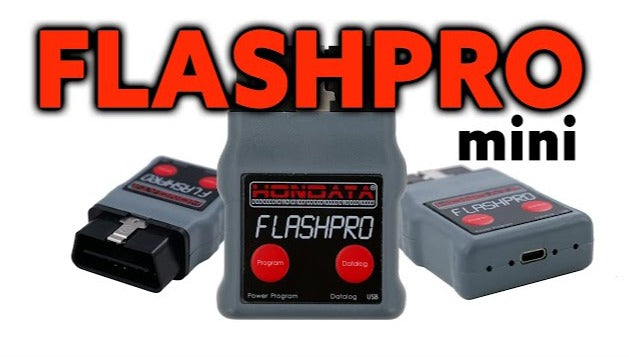

- Hondata FlashPro (specific to FK8 or FL5)
- Purchase Flashpro for FK8 SBX Performance
- Purchase Fashpro for FL5 SBX Performance
- USB cable and laptop (Windows preferred)
- Download Hondata FlashPro Manager: Software
- Optional: Battery charger or maintainer
⚙️ Step 1: Setup & Software
1. Install FlashPro Manager
Download the latest version from Hondata: Honda/Acura Engine Management Solutions and install it on your laptop. Make sure you're using the 2025-compatible version for FL5 support.
2. Connect FlashPro
Plug FlashPro into your laptop using the USB cable. Launch FlashPro Manager and register the device if prompted. Ensure all firmware updates are completed before proceeding.
3. Choose Your Base Map
Click New Calibration and browse for a map that matches your setup. Examples as of 2025 include:
- "FK8 93 PRL HVI + Inlet"
- "FL5 91
- "FL5 93
- FlashPro comes preloaded with a variety of built-in calibrations known as base maps. These maps are designed to offer a safe, modest increase in power and drivability improvements over stock settings. They’re available for both 91 and 93 octane fuel, and are tailored for common bolt-on setups like the PRL HVI intake. While they’re conservative by nature, base maps are a great starting point. For dyno results and performance comparisons, check out the latest data on the official Hondata site.
NOTE: PRL’s High Volume Intake (HVI) is now a common bolt-on supported in Hondata’s updated base calibrations.
🔌 Step 2: Flash the ECU
1. Connect to Your Car
Plug FlashPro into the OBD2 port under the dash. Turn the ignition to ON (but do not start the engine).
2. Upload the Calibration
On your laptop, click Upload. The ECU will begin flashing — this takes 3–4 minutes. Do not disconnect or turn off the ignition!
3. Datalog (Optional but Recommended)
Click Datalog to monitor knock, boost, trims, and temps in real time. Save and review logs after test drives.
🧪 Step 3: Test Drive and Review
- Idle for 5–10 minutes post-upload.
- Take a light 10–15 minute cruise. Avoid wide-open throttle.
- Monitor for CELs or strange behavior.
- Review logs or reach out to a tuner if needed.
🚗 FK8 vs FL5 Differences
- FlashPro connection: FK8 uses a wired version, FL5 is CAN-based and plugs in differently.
- Firmware: FL5 requires the latest firmware. As of 2025, Hondata supports the latest FL5 builds with expanded map options.
- Base Maps: Updated all the time. Keep checking for new updates as they come out.
🛑 Common Mistakes to Avoid
- Flashing the wrong vehicle type (FL5 vs FK8)
- Not updating FlashPro firmware before use
- Skipping datalog review
- Not using a charger if your battery is weak
- Using unsupported calibrations for 2025 ECUs — always download the latest base map updates
🎁 Bonus: FlashPro & Accessories
Grab your tuning gear from SBX Performance:
BUY FLASHPRO FOR FK8 SBX Performance
BUY PRL HVI FK8 SBX Performance
BUY RV6 Catted Downpipe FK8/FL5/DE5 SBX Performance
BUY Hondata FlashPro - 2023+ Civic Type-R (FL5) | SBX Performance
BUY PRL HVI FL5 SBX Performance
📌 Final Thoughts
Installing a base map is one of the safest and most cost-effective ways to begin tuning your Type R. If you're planning future mods like an intercooler, downpipe, or full exhaust, you're already on the right tuning platform. For ECU unlocking services, check out IMW-Tuned / Innovative MotorWorks - Innovative MotorWorks / IMWTuned.com. For community tips and tuning logs, visit our SBX Performance Garage Talk
