FL5 Civic Type R Intercooler Comparison & Buyer’s Guide (2025)
Data-driven analysis to help you choose the right intercooler upgrade — no opinions, just facts.
Excerpt Summary
Upgrading the intercooler on your 2023+ Honda Civic Type R (FL5) is one of the most effective ways to improve consistency, reduce heat soak, and unlock more reliable power. This comparison covers major intercooler options currently available — including PRL, CDM Performance, Cobb, HKS, PWR, and more — with detailed specs, dimensions, materials, and required modifications. Whether you’re running the stock turbo or building a 600+ hp setup, this guide helps you choose based on verified data, not hype.
🧠 Why Upgrade the FL5 Intercooler?
The FL5’s turbocharged K20C1 engine generates considerable heat under boost. When air is compressed by the turbocharger, it heats up — and if not efficiently cooled, that hot air reduces oxygen density and causes the ECU to pull ignition timing, cutting power. The intercooler’s job is to cool the charge air before it enters the intake manifold, maintaining dense, oxygen-rich airflow and stable combustion temperatures. While Honda’s OEM intercooler performs well in normal conditions, data and track testing consistently show that it heat-soaks quickly under sustained boost. After just a few pulls or laps, intake air temperatures (IATs) rise dramatically — leading to performance loss and higher knock risk. That’s why a properly engineered intercooler upgrade is one of the best reliability and performance investments for tuned or track-driven FL5s.
⚙️ Understanding Intercooler Design
Core Construction
- Tube & Fin: Lightweight and quick to cool. Less thermal mass means they heat up faster but also recover extremely fast with airflow. Ideal for daily driving and road course lapping, where rapid recovery on straights is crucial.
- Bar & Plate: Heavier, more durable, and with higher thermal mass. They are slower to heat up and slower to cool down. This makes them ideal for drag racing or single high-boost pulls where they can absorb large amounts of heat.
- Hybrid / Micro-Tube: Specialized performance cores (like PWR or HPT) balancing high flow with efficient cooling.
End Tank Material
- Resin (Plastic): Found on OEM units; lightweight but weaker under high pressure.
- Cast Aluminum: Common in aftermarket upgrades; durable, affordable, and efficient.
- CNC-Billet / CNC-Machined Aluminum: Precision-machined and optimized for airflow — ideal for high boost and big turbo setups.
Performance Metrics
- Core Volume (L): Overall capacity for airflow and cooling. Bigger isn’t always better — flow design and fin density matter just as much.
- Surface Area: Higher surface area generally means greater cooling contact with ambient air.
- Weight (lbs): Lighter units improve front-end balance but may sacrifice thermal mass.
🆕 PRL Intercooler (Updated Design) — Key Specs & Real-World Notes
PRL updated their FL5 intercooler to a tube & fin CSF core with a high-quality build that keeps the OEM elbow routing. It’s a serious unit with a premium finish and strong end tanks.
- Type: Tube & Fin (CSF Core)
- Fins: 11
- Tubes: 10
- End Tanks: CNC-machined 6061 aluminum
- Stock IC Elbows: Retained
- Core Size: 716 × 184 × 108 mm (28.2"W × 7.25"H × 4.25"D)
- Core Volume: 868.91 in³ (14.24 L)
- Surface Area: 131,744 mm² (204.45 in²)
- Weight: 14.4 lbs
- Remove the factory air temp sensor bracket
- Drill a hole through the bottom of the plastic air dam (offset from the original bracket location)
- Relocate the sensor into the drilled hole
- Remove the factory intercooler side duct plates (rear bumper air guides)
Community feedback (CivicXI-style summary): PRL’s finish and overall quality are top notch. The welds and billet-style end tanks are solid,
and owners like the added durability against debris. Some reported a slight increase in turbo noise due to the end tank design.
Trade-off to know: A few users noted ~200–300 rpm later boost response on stock turbo setups, likely from increased volume.
There are also comments that the internal plate structure is substantial (big plates / smaller fins), and that could reduce airflow to the radiator compared to
a more open-fin design — especially if ducting is removed.
PRL install resource: PRL installation instructions + PRL intercooler test blog (link these on your site if you have them).
🧾 FL5 Civic Type R Intercooler Comparison Chart (2025 Update)
| Brand | Type | End Tanks | Core Size (mm / in) | Volume (L) | Modifications | Weight (lbs) |
|---|---|---|---|---|---|---|
| OEM (19710-66V-A01) | Tube & Fin | Resin | 639×158×64 (25.16×6.22×2.52) | 6.46 | None | 6.9 |
| PWR | Hybrid (Bar & Plate / Tube & Fin) | Billet Aluminum | 700×181×87 (27.56×7.13×3.43) | 11.02 | None | ~11 |
| J’s Racing | Tube & Fin (DRL Core) | Sheet Metal | 700×172×100 (27.56×6.77×3.94) | 12.04 | Trim IAT bracket + remove rear duct plates | 13 |
| HKS | Tube & Fin | Cast Aluminum | 695×178×100 (27.36×7.01×3.94) | 12.37 | Trim or remove air guides, relocate IAT sensor | 15.6 |
| HPT | Micro-Tube | Billet Aluminum | 714×185×109 (28.11×7.28×4.29) | 14.40 | None listed | 16.1 |
| Wagner | Tube & Fin | Cast Aluminum | 580×400×70 (22.83×15.75×2.76) | 16.24 | Replace elbows + mount brackets to crash bar | 21 |
| Cobb (Garrett Core) | Bar & Plate | Cast Aluminum | 665×178×108 (26.2×7.0×4.25) | 12.77 | Trim lower air deflector + air guides; may interfere with HEL oil cooler | 21.6 |
| PRL (Updated Design) | Tube & Fin (CSF Core) | CNC-machined 6061 aluminum | 716×184×108 (28.2×7.25×4.25) | 14.24 | Remove IAT bracket; drill/relocate IAT; remove rear duct plates | 14.4 |
| Airtec | Bar & Plate | Cast Aluminum | 700×190×130 (27.56×7.48×5.12) | 17.29 | Relocate IAT to top bracket, remove rear air guides | 23 |
| RV6 | Tube & Fin (Square Extrusion) | Cast Aluminum | 698.5×177.8×101.6 (27.5×7.0×4.0) | 12.62 | Drill 5/16” hole + relocate sensor, remove duct plates | 24 |

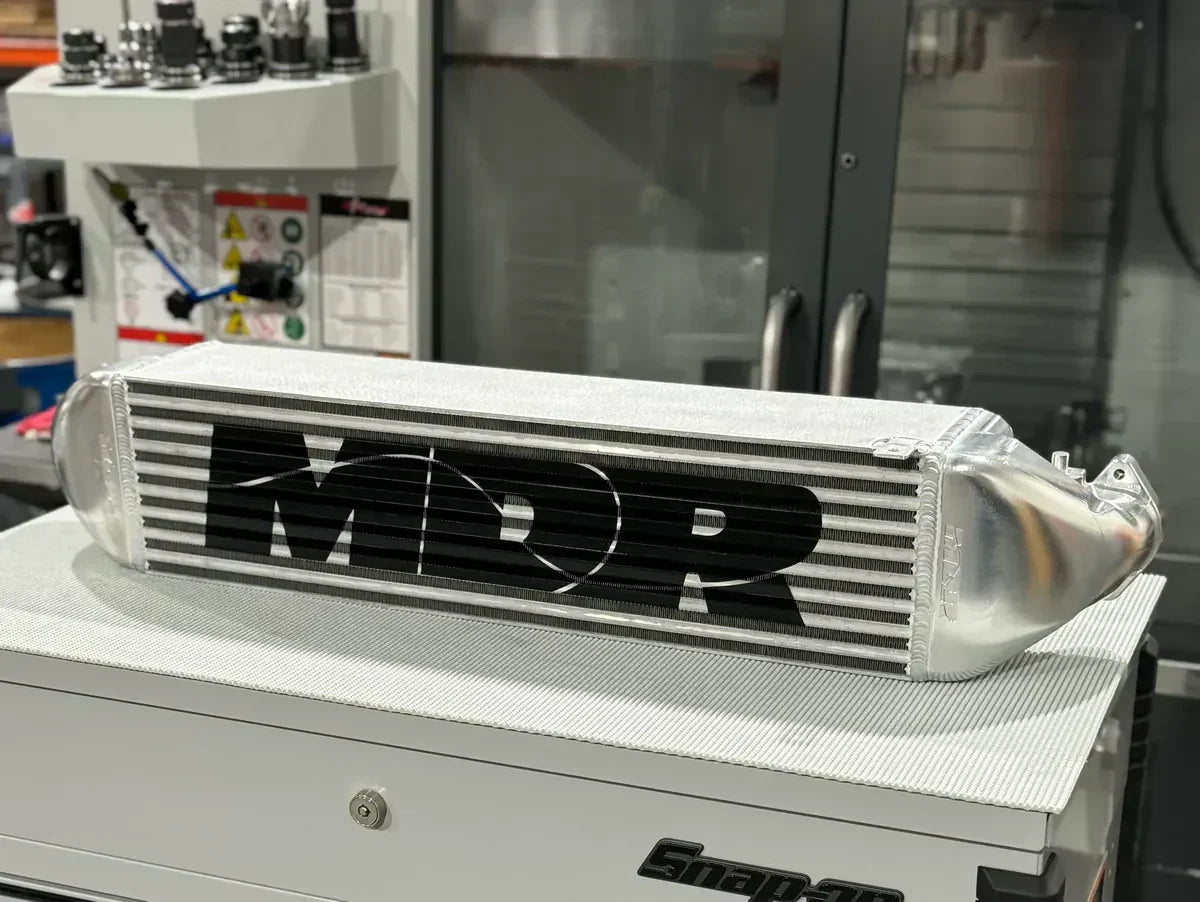

| MDR Industries | Bar & Plate | Billet Aluminum | 711.2×178.3×139.7 (28.0×7.0×5.5) | 17.72 | Relocate IAT to top-front bracket, remove air guides | 29.5 |
| CDM Performance (Garrett Core) | Bar & Plate | CNC Billet Aluminum | 668×198×109 (26.3×7.8×4.3) | 14.42 | None — direct fitment, no trimming or relocation required | ~22 |
| PLM | Bar & Plate | Billet Aluminum | 715×184×110 (28.15×7.24×4.33) | 14.46 | Relocate IAT sensor | ~23 |
| TakeTwo | Tube & Fin | Billet Aluminum | 700×160×110 (27.56×6.3×4.33) | 12.32 | Minor trimming of air guides | ~15 |
| Spoon (Upcoming) | TBD | TBD | TBD | TBD | TBD | TBD |
🧰 Fitment & Installation Overview
Direct Fit Options: ✅ PWR, HPT, and CDM Performance drop directly into the OEM location with zero cutting or bracket relocation.
Minor Modification Units: ⚙️ HKS, J’s Racing, and PRL require trimming/relocation work (IAT changes and/or removing duct plates).
Custom Fit / Heavier Systems: 🔩 Cobb, Wagner, Airtec, and MDR often require additional mounting or air-guide trimming due to their larger dimensions.
Pro Tip: Always test-fit before trimming. Keeping airflow directed cleanly through the intercooler and radiator matters — ducting choices can affect both IAT control and coolant temps.
📊 Performance Insights
-
Cooling Efficiency & Application
Bar & Plate (Cobb, CDM, MDR): High thermal mass can be excellent for short-burst, high-boost operation (drag racing, street pulls).
Tube & Fin (PRL updated, HKS, PWR, J’s Racing): Lower thermal mass but faster recovery — great for repeated pulls and road-course style airflow recovery. -
Pressure Drop
Larger cores can improve cooling, but internal design matters. High volume can trade some response for stability. If you prioritize sharp response on stock turbo, keep an eye on core volume and internal restriction. -
Build Quality
CNC-machined/billet end tanks and quality welds help durability and reduce leak risk under high boost. PRL’s updated unit is frequently praised for finish and build strength. -
Weight Considerations
Lighter units can help front-end balance. If you’re street/HPDE focused, weight plus recovery behavior can matter as much as outright “biggest core wins.”
🔧 Choosing the Right Intercooler
| Setup Type | Recommended Core | Examples |
|---|---|---|
| Daily / Spirited Street (<400 hp) | Tube & Fin | PRL (Updated), HKS, PWR, J’s Racing, TakeTwo |
| Aggressive Street / Bolt-Ons (400–500 hp) | Balanced Cooling + Flow | PRL (Updated), CDM, Cobb |
| Drag Racing / 1/2-Mile / High HP Pulls | High Thermal Capacity | MDR, Cobb, CDM |
| Road Course / HPDE Lapping | Fast-Recovery Tube & Fin | PRL (Updated), HKS, PWR, J’s Racing |
🏁 Conclusion
Every intercooler in this list serves a different goal — from lightweight street-friendly upgrades to high-capacity race cores.
- Balanced street/track behavior: PRL (Updated), PWR, HKS stand out for recovery and consistent cooling when airflow is good.
- High-power pulls / big thermal capacity: MDR, Cobb, CDM offer high mass and strong cooling for aggressive boost.
- Least hassle direct-fit: PWR, HPT, CDM require fewer modifications than many larger setups.
Author: Tom @ SBX Performance
Data compiled from manufacturer specifications and owner feedback. Updated for PRL revised design.
