MAPerformance 11th Gen Civic Si Performance Oil Cooler Kit | 2022+ Honda Civic Si (HDAXI-OCK)

In stock
Regular price $549.99
Product INFO
  • Vendor MAPerformance
  • SKU MAP.MAP HDAXI-OCK
In stock
Usually ships within 24 hours
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Not many things can kill a motor as fast as overly high oil temps, and we are not alone in finding that the stock 11th Gen Civic system is not up to the task. From lapping days to daily driving and everything in between, our cooler kit will do everything you need and more.

When it came time to design the 11th Gen Civic Si oil cooler kit, we were not happy with any of the filter sandwich plates on the market — they all spaced the oil filter so far down that it became the lowest point on the car, no longer clearing the factory undertray. With that in mind, we designed our two-piece filter adapter to fit properly and function perfectly, providing nearly zero restriction or pressure drop in the system. Due to the lack of factory oil pressure monitoring, we added a 1/8" NPT port to the side of the housing to provide oil temperature, pressure, or both depending on the sensor used.

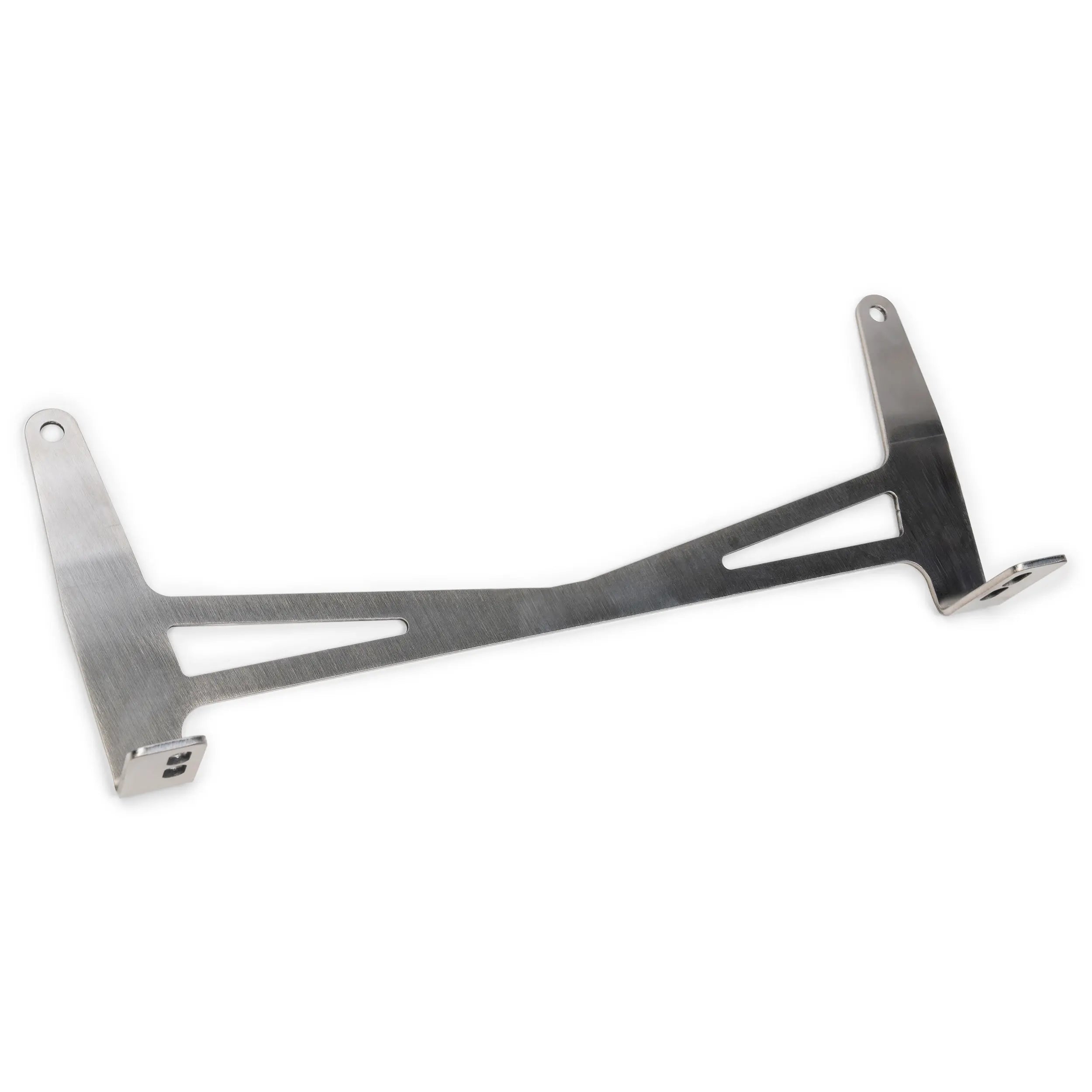

To mount the cooler we designed a MAPerformance 304 stainless bracket. It looks good for years and is a 100% bolt-on solution — no cutting or trimming required anywhere on your car.

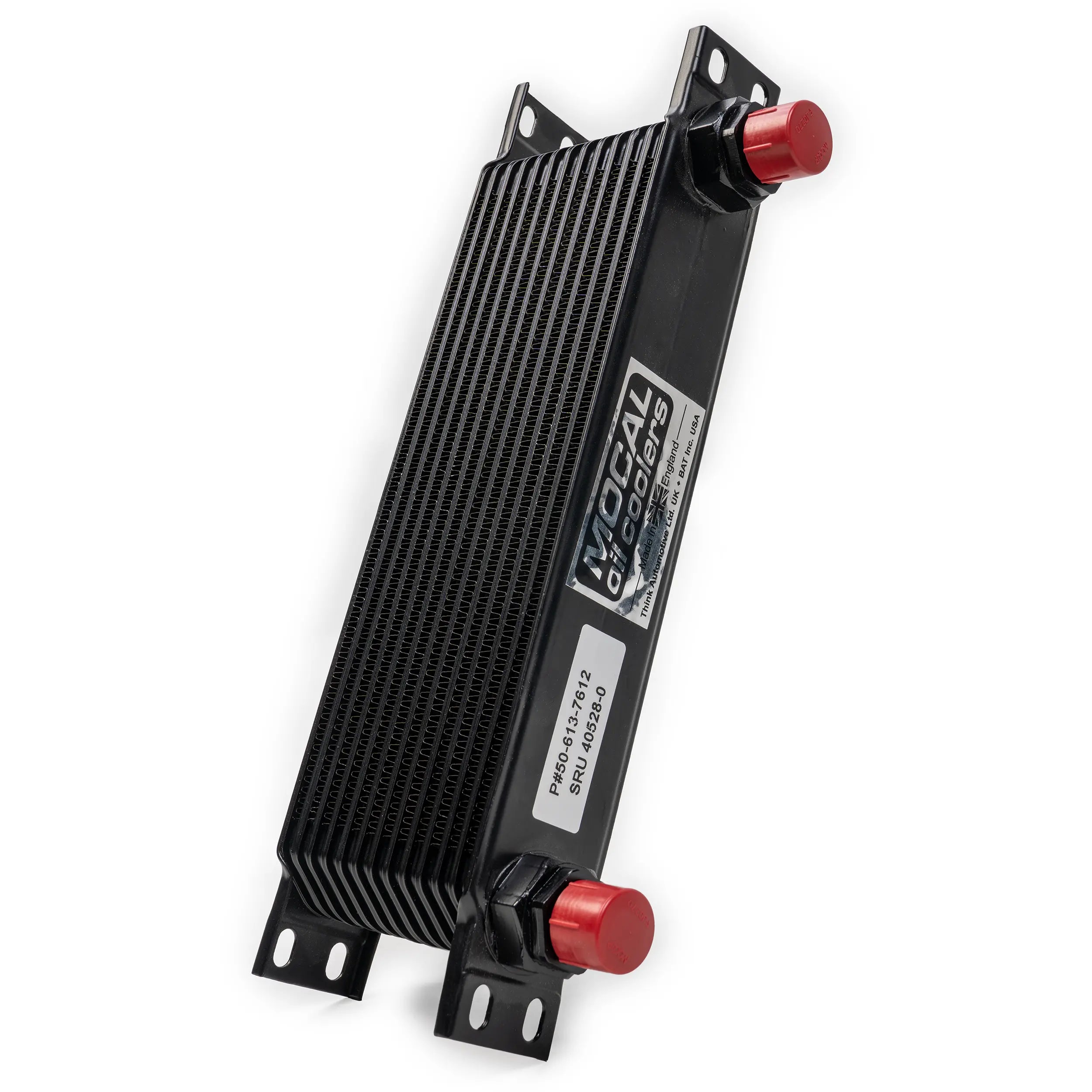

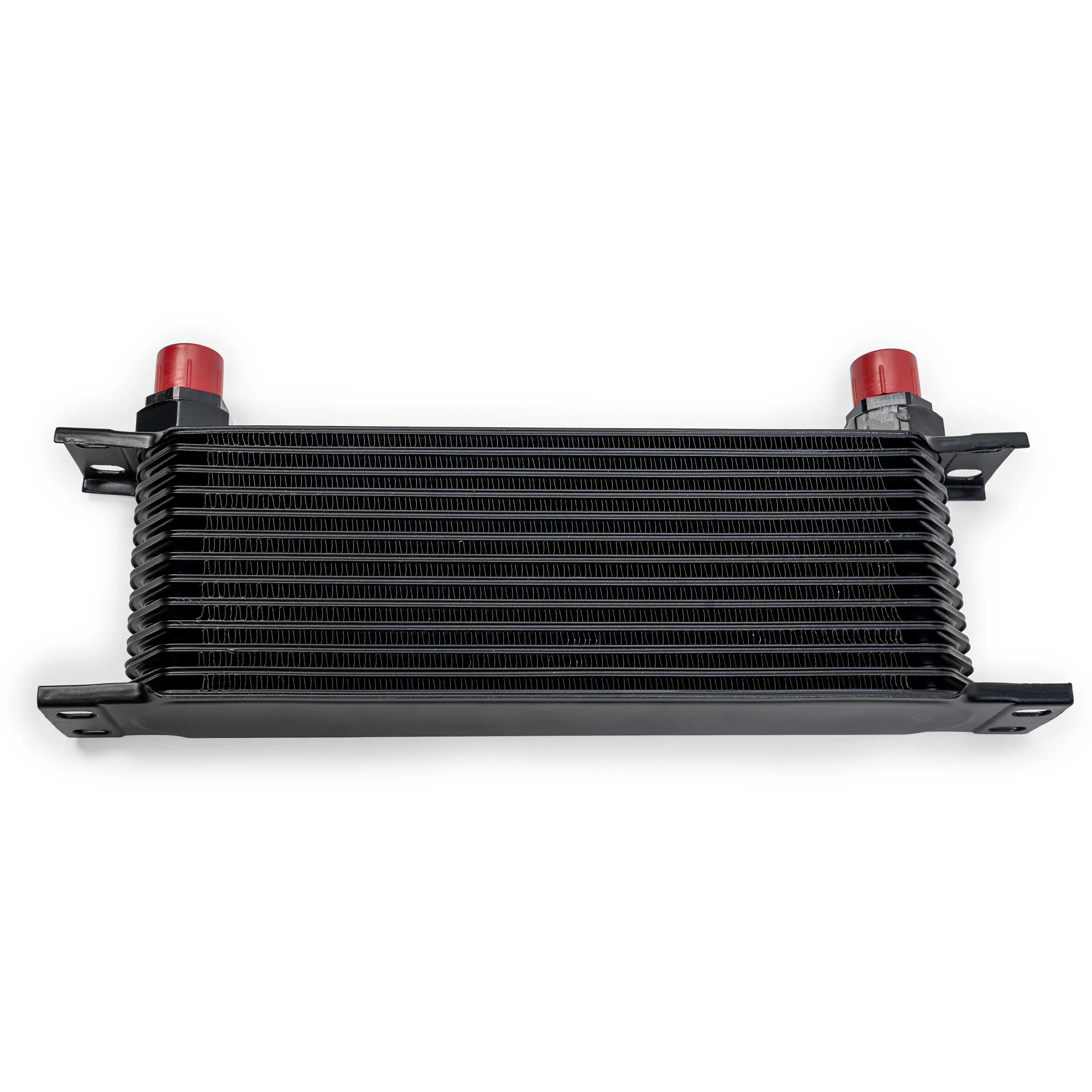

For the cooler itself we selected one of the largest Mocal cores that would fit while staying within a reasonable budget. Mocal has been an industry leader in cooling for generations. Beyond pulling as much heat out of the system as possible, the L15CA has a very small oil capacity, so adding nearly a full quart helps both temperature and oil pressure stability. Lightweight braided hose rounds out the kit for easy handling and serviceability.

Features

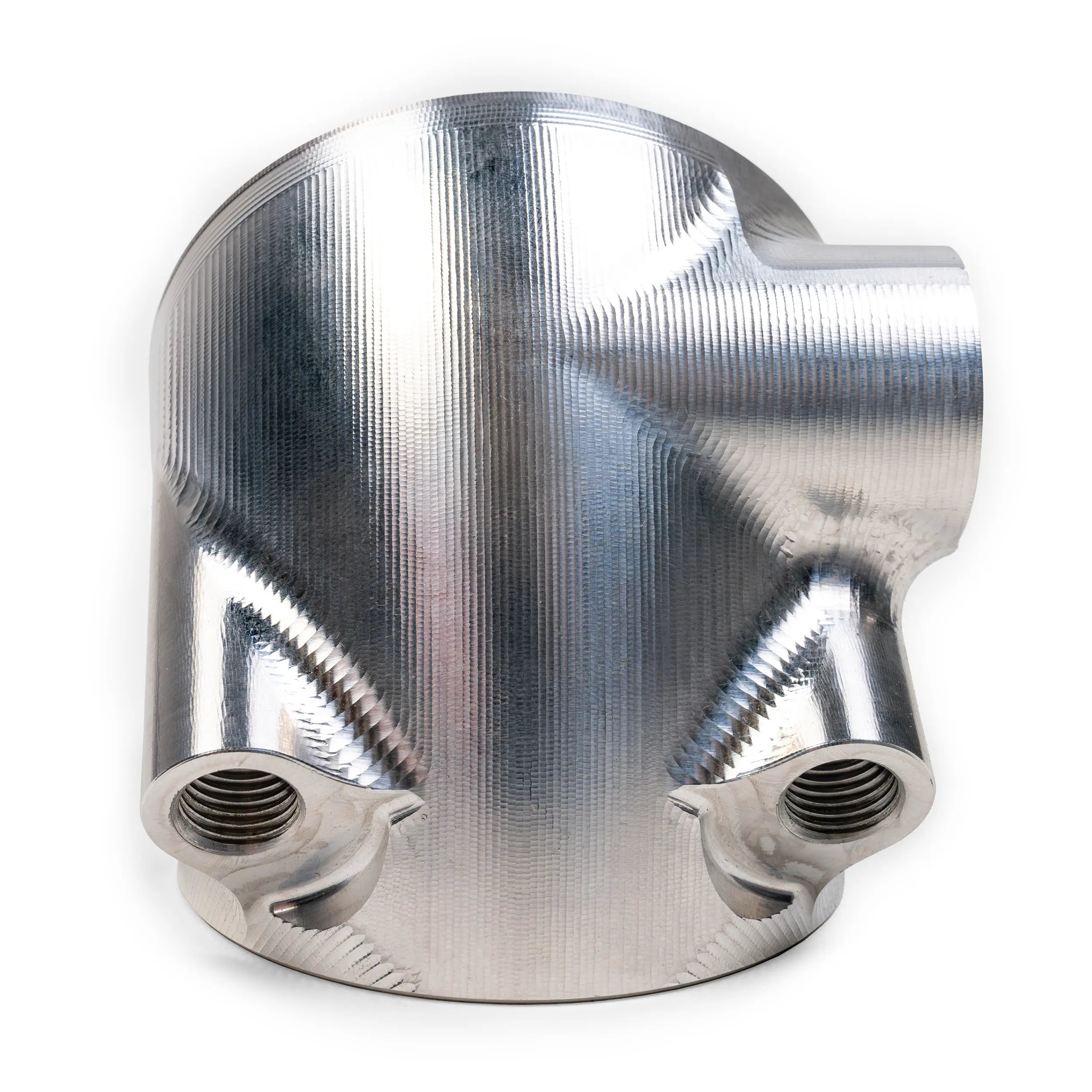

  • MAP custom billet aluminum oil filter adapter that retains ground clearance and clears the factory undertray, designed and made in house for the 1.5T Civic platform
  • 1/8" NPT port to add pressure or temperature gauges
  • Lightweight braided System1 Designs AN lines and fittings
  • Mocal oil cooler core that adds oil capacity to the system
  • All stainless hardware to prevent corrosion
  • MAP 304 stainless mounting bracket

Benefits

  • 100% direct fit
  • Increased oil capacity
  • Increased oil cooling
  • Maintains ground clearance

Applications

  • 2022+ Honda Civic Si 1.5T

What's in the Box

  • (1) MAP 1.5T Civic oil cooler mounting bracket
  • (1) MAP 1.5T Civic oil cooler line kit (2 lines)
  • (1) MAP 1.5T Civic oil cooler filter sandwich plate (2 pieces)
  • (2) -10AN to -10ORB fittings
  • (2) -4AN hex head plugs
  • (1) 1/8 NPT allen plug
  • (1) 3/4 mil-spec washer
  • (1) MAP custom 24mm slim nut
  • (1) MAP oil cooler filter stud
  • (1) Mocal oil cooler
  • (2) Mocal oil cooler to -10AN fittings
  • (2) M6x1.0x55 socket head bolts
  • (8) M6x1.0x16 hex head bolts
  • (1) 222 Buna-N O-ring
  • (2) 229 Buna-N O-rings
  • (2) 7/8" rubber loop clamps
  • (4) M6 threaded plates
  • (4) M6 rubber isolators
