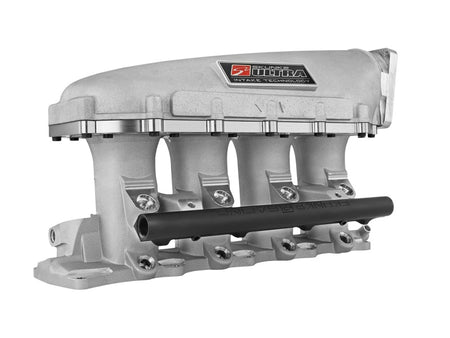

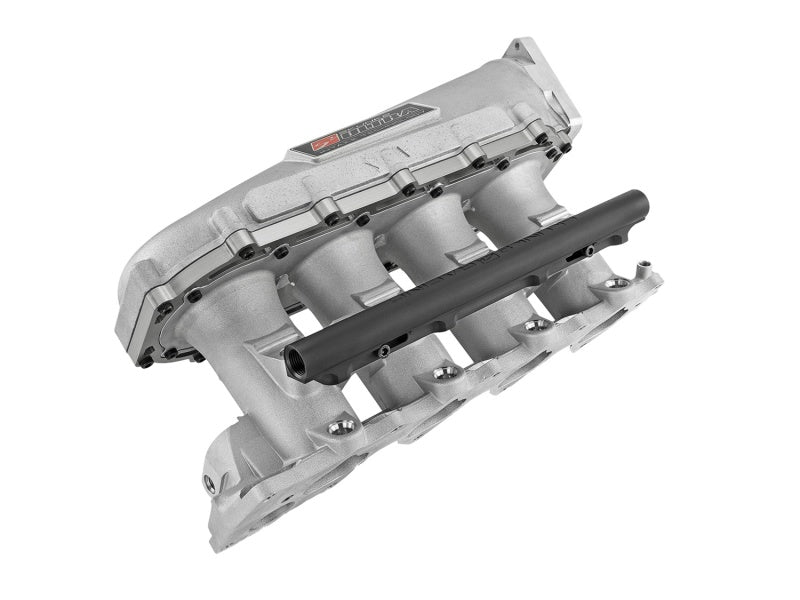

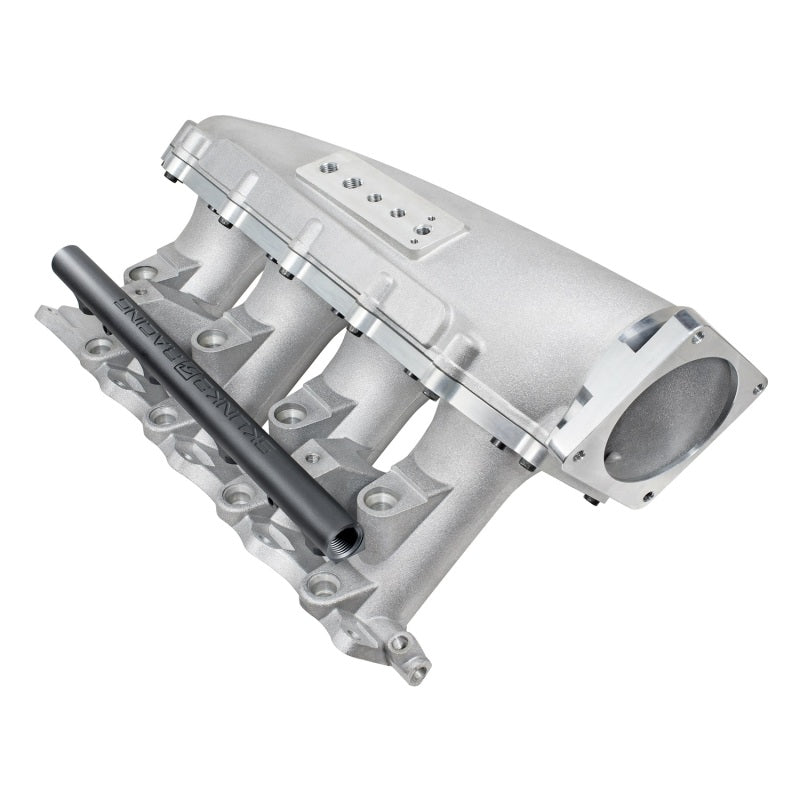

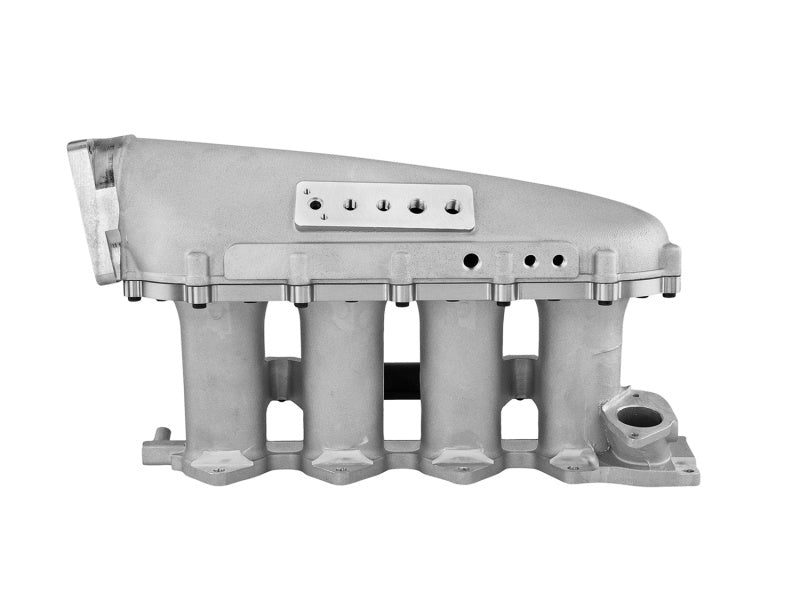

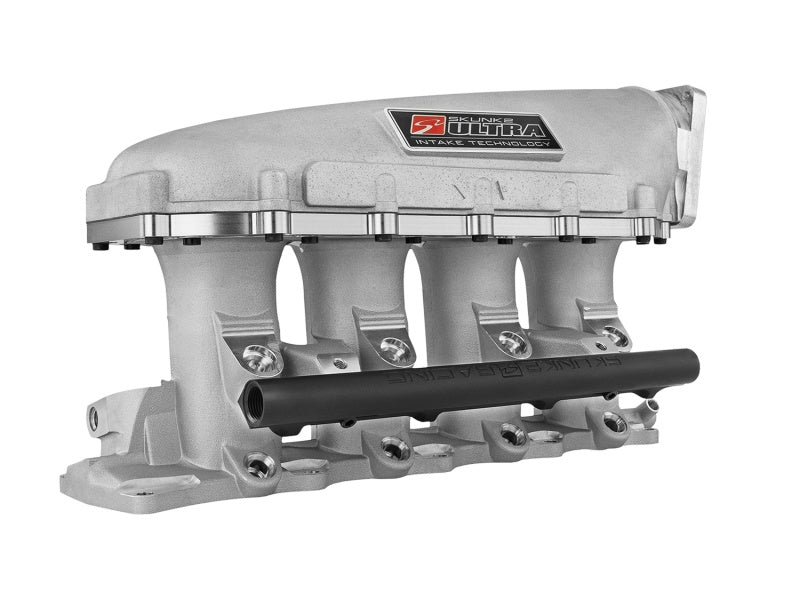

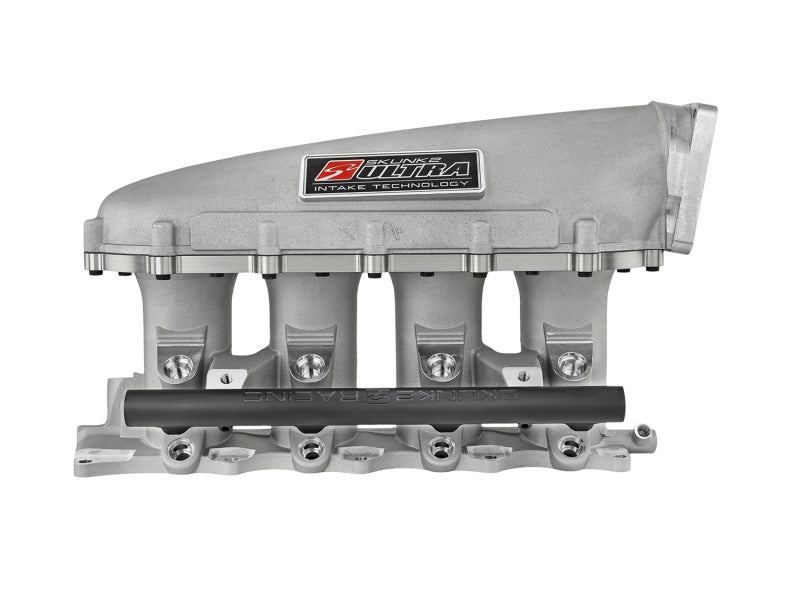

Skunk2 Honda and Acura Ultra Series Race Manifold F20/22C Engines

Market Description

The engineers at Skunk2 Racing have worked tirelessly to develop the next generation of high performance intake manifolds and are proud to announce the release of the much anticipated Ultra Series Intake Manifold. Years of R&D have culminated in a multi-piece cast aluminum intake manifold that offers advantages that only a modular design could allow. Following our Ultra Race B & K Series Intake Manifolds, as well as using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. In addition to CFD testing, the Ultra Series Intake Manifold has undergone extensive in-house dyno and on-car testing which has led to a design that is less restrictive, yielding both torque and power gains well over many of the competitors. Ultra Series Intake Manifolds are made from high-grade 356 aluminum alloy for a strong and lightweight design, CNC-machined for a precise fit, and individually inspected for quality assurance. The large 90mm throttle body opening, 81mm velocity stacks, and hi-velocity intake runners with smooth transitions allow the Ultra Series Manifold to outflow the competition. Designed to be used with built, high-horsepower naturally aspirated or forced induction setups, the Skunk2 Ultra Series Intake Manifold helps provide a new level affordable high-end intake technology to the marketplace. 1L and 2L Plenum Spacers upgrades available.

Product Description - Extended

Ultra Series Race Intake Manifold; 3.5L Volume; 90mm TB Inlet/5.0 Ford Bolt Pattern; Silver Adapter;

Product Description - Short

• Skunk2 Honda and Acura Ultra Series Race Manifold F20/22C Engines
• Intake Manifold

Features and Benefits

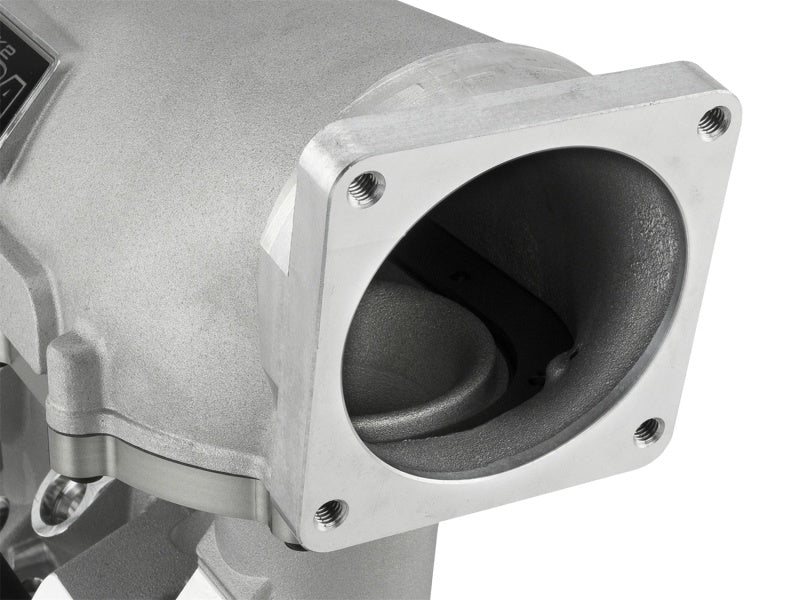

• 90mm TB Inlet/5.0 Ford Bolt Pattern
• Silver Adapter
• 3.5L Volume

Product Description - Long

Ultra Series Race Intake Manifold
