Manufacturer Part # : 12810
Market Description

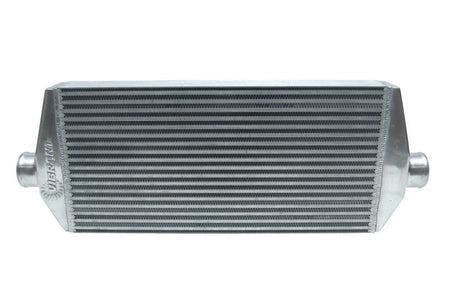

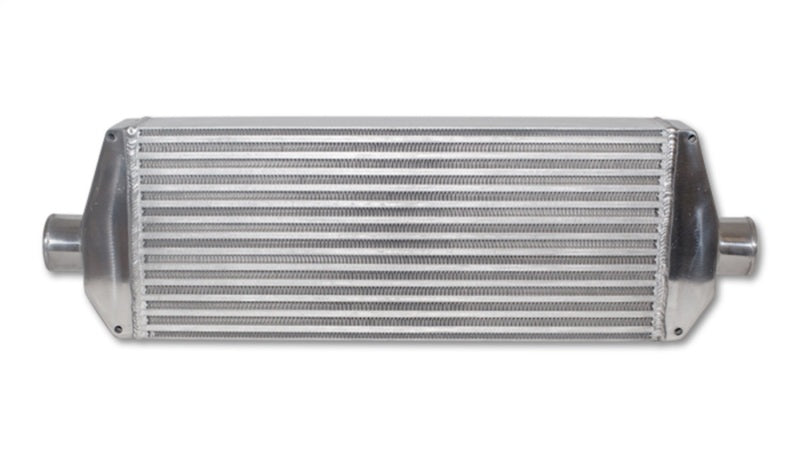

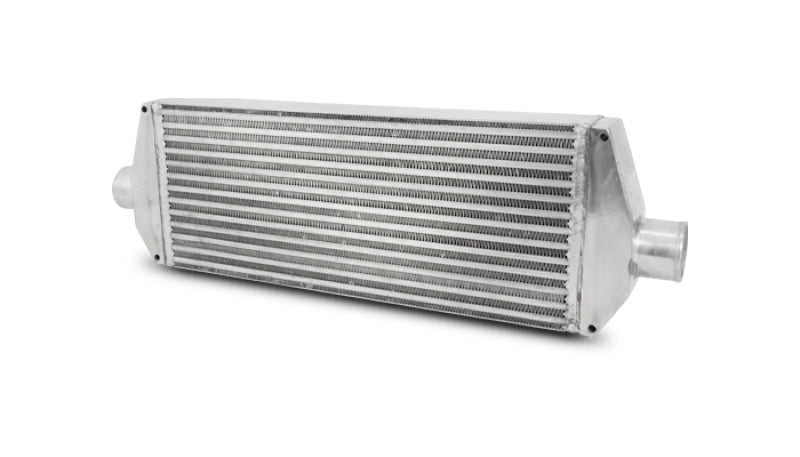

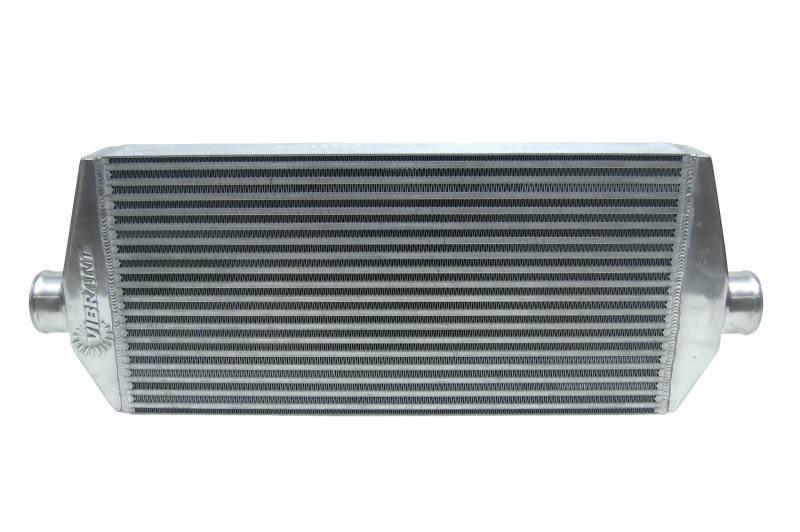

- Vibrant Intercooler Assemblies are all designed in house, and feature the same bar and plate construction as well as Louvered fin design on ambient air path with offset fin design on charge air path that is found in our lineup of Intercooler Cores. Each assembly also features cast aluminum tig welded end tanks, with a 2.5” or 3” inlet/outlet depending on intercooler size. These preassembled intercoolers each include mounting brackets and hardware for ease of installation and are pressure tested to ensure a leak free assembly.
- Vibrant Performance Intercoolers feature Bar and Plate construction and a unique louvered fin design on the ambient path that maximizes the core's available surface area, and an offset fin design on the charge path allows for minimal pressure loss. Our Cast Aluminum End Tanks are precision TIG-welded to the core and pressure tested for leak-free performance.
- Vibrant Performance Intercoolers feature Bar and Plate construction and a unique louvered fin design on the ambient path that maximizes the cores available surface area, and an offset fin design on the charge path allows for minimal pressure loss. Our Cast Aluminum End Tanks are precision TIG-welded to the core and pressure tested for leak-free performance.
Product Description - Extended
- Intercooler; 30 in. Overall Length; 22 in. Core Width; 9 in. Height; 2.5 in. Inlet/Outlet OD; 1.75 in. Inlet/Outlet Neck Length; 3.25 in. Core Thickness; 6061 Aluminum;
- Recommended Products: 1st Choice PN: 2177, 2nd Choice PN: 2609, 3rd Choice PN: 2752, 4th Choice PN: 12505, 5th Choice PN: 1490
Product Description - Short
- Vibrant Air-to-Air IC Assy complete w/ end tanks core size: 22in Wx9in Hx3.25in thick 2.5in in/out
- ICR22x9x3.25x2.5"I/O
- I/CAssy22"x9"x3.25"
- TChrgrIcooler
Features and Benefits
- A new louvered fin design maximizes the available surface area of the core
- Features Bar and Plate construction with 25% increased fin density
- Maximum Cooling Efficiency While Minimizing Pressure Drop
- Capable Of Handling The most Extreme Race Applications
- Deliver Significantly Cooler/Denser Air To Your Engine
- Pressure Tested To Ensure Leak Free Assembly
- 1 Year Limited Warranty
- Aluminum
Product Description - Long
- Air-to-Air Intercooler with End Tanks; 30"W x 9.25"H x 3.25"Thick
- Intercooler, 30"W x 9.25"H x 3.25" Thick
- Intercooler
Associated Comments
Offers vastly improved efficiency
