AEM V3 Standard Controller Kit - Internal MAP w/ 35psi Max

In stock
Regular price $206.95
Product INFO
  • SKU T14.4309468
  • Barcode 840879022686
In stock
Usually ships within 24 hours

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Market Description

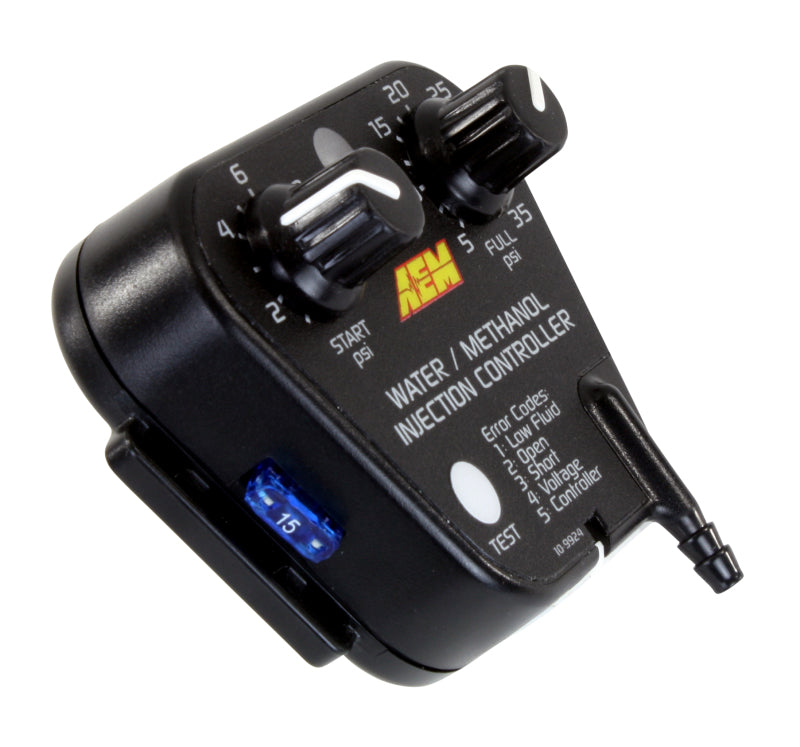

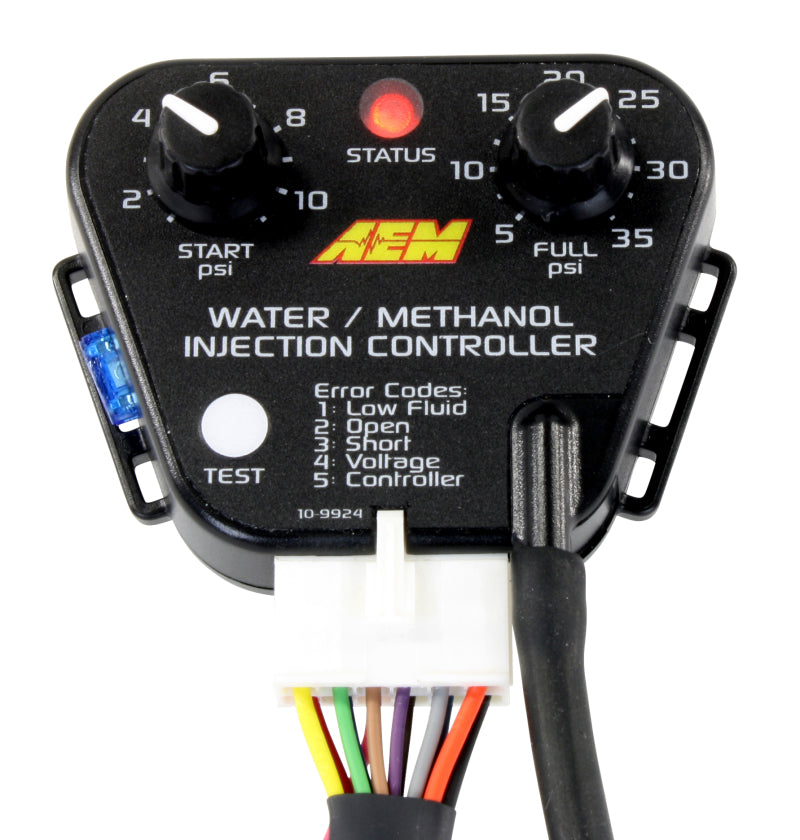

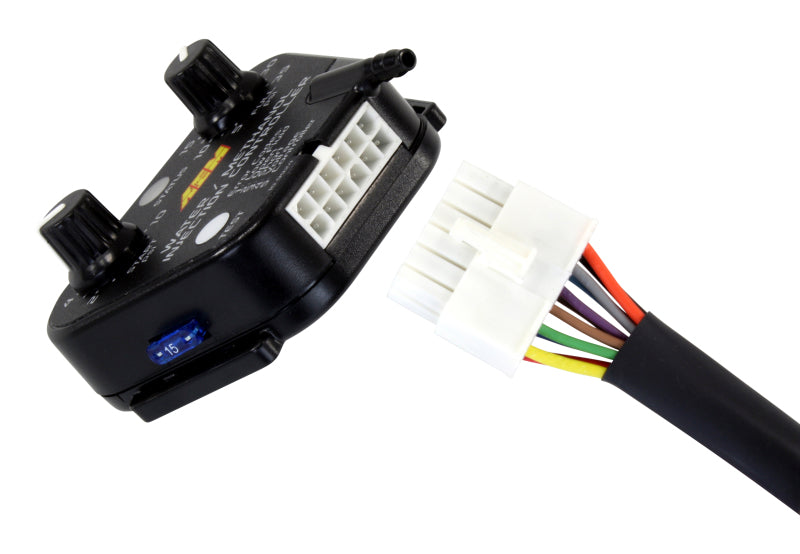

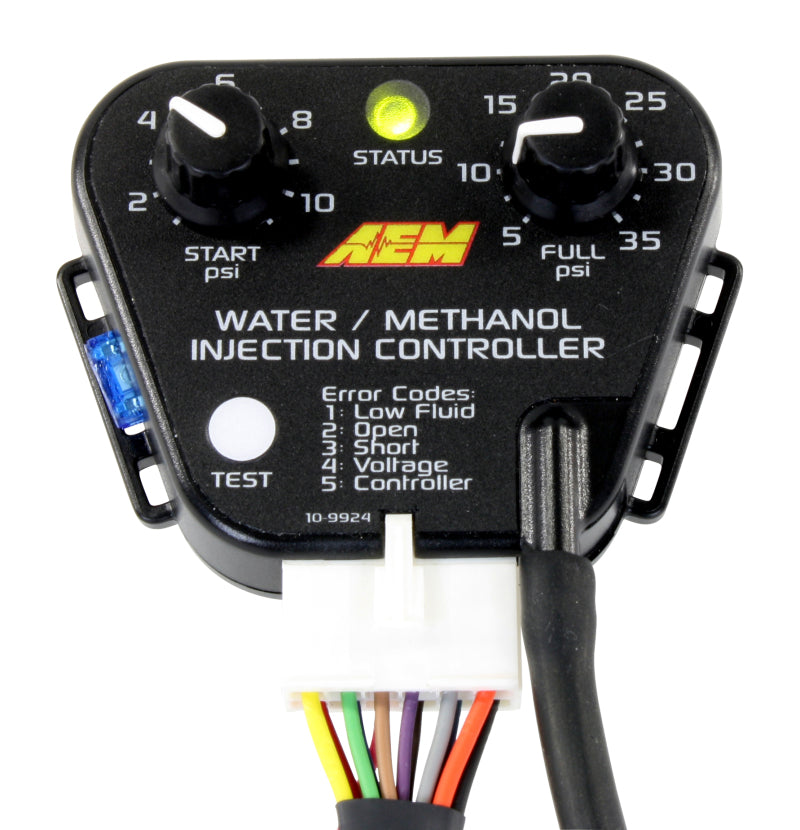

  • The new controller designs feature large, turn-resistant knobs and larger numbering to easily set accurate start and full activation points, with covered status LED and test buttons for added splash resistance. A plug is integrated into the controller housing for mating to the redesigned wiring harness's positive-lock connector. The Boost Dependent controller housing has a molded-in, barbed nipple to accept a boost hose and a wiring legend on the back. The Multi Input controller has an easy-to-remove plug covering the programming dipswitches and a programming legend on the back for the 0-5v and frequency based settings. Both controller housings feature an easy to access integrated fuse and molded mounting tabs.

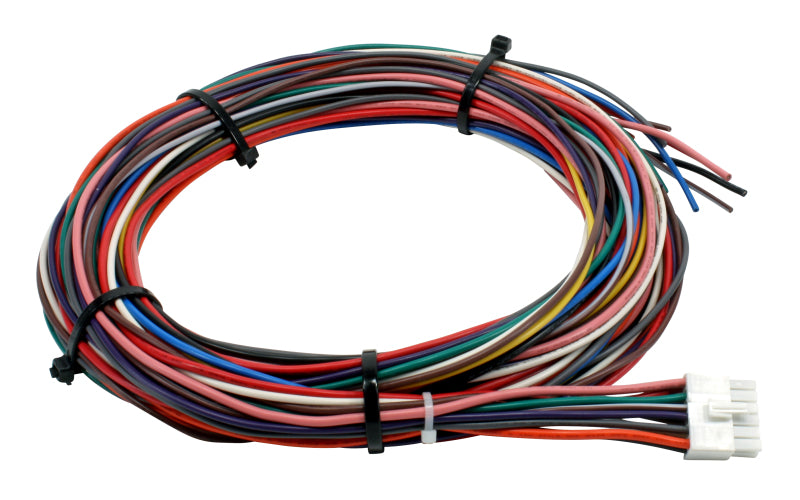

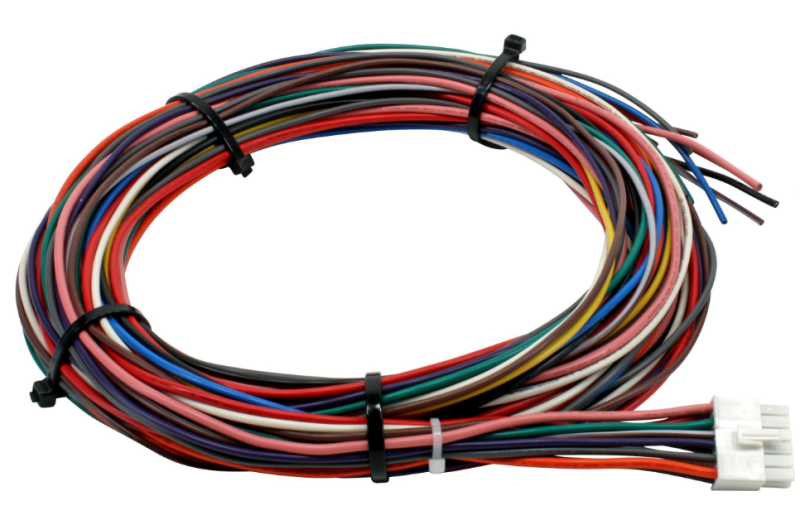

  • The new wiring harness is terminated with a positive-lock connector on one end and has color-coded wires to ease installation. An integrated Pump Ground circuit is included in the harness which simplifies the wiring process and eliminates any chance of the pump accidentally activating from a short in the system. An additional wire is included for adding an optional on/off solenoid to stop fluid flow when the system is inactive.
  • These new controllers retain the "Boost Safe" injection failsafe system, which is an output that will activate if there is a short, loss of continuity or high or low voltage or low fluid condition, allowing users to define their failsafe strategy from something as simple as flashing a warning light to more advanced strategies like pulling boost or ignition, or switching fuel maps on a standalone engine management system.
  • AEM's engineers spent extensive time revamping the controller's flow control strategy for a more linear flow output delivery. This means that the flow delivery better matches an engine's need for water/methanol injection, which further optimizes charge air cooling and detonation control. Three resized injector nozzles are in each kit and allow for improved flow capability (a flow graph is available on our website).
  • A more accurate, conductive low level fluid sensor is integrated into the tank and features a positive lock connector with color-matched wires to the wiring harness. The sensor eliminates any chance of incorrect readings due to interference from debris.
  • Water/Methanol for High Compression Naturally Aspirated and Forced Induction Gas Engines
  • V2 Water/Methanol Standard Controller Kit - Internal MAP with 35psi max
  • AEM offers two different water/methanol controller designs.
  • Improved Injector Flow Rate & Nozzle Sizes
  • Robust, Easy to Use Controller Designs
  • New Low Level Fluid Indicator
  • Boost Safe Feature
  • Simplified Wiring

Product Description - Extended

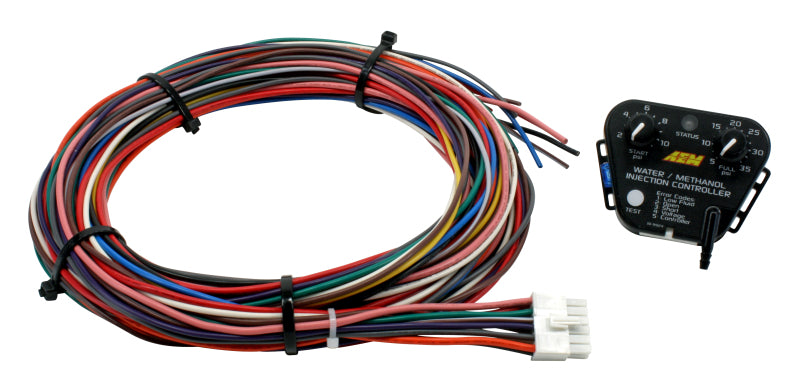

  • V2 Water/Methanol Standard Controller Kit - Internal MAP with 35psi max, CONTROLLER ONLY
  • Standard Controller Kit 35PSI Max (Controller and Harness Only)

Product Description - Short

  • AEM V3 Standard Controller Kit - Internal MAP w/ 35psi Max
  • Water/Meth Injection

Features and Benefits

  • -Barb fitting on the controller to connect boost line
  • -Color coded harness for ease of installation.
  • -System status LED on controller.
  • -Integrated fuse.

Product Description - Long

AEM V3 Water/Methanol Standard Controller Kit

Product Description - Invoice

  • H2O CTRLR KIT V3, INTERNAL MAP
  • AEM - Water/Meth Injection

AAIA Part Type Description

Water Injection System Kit
