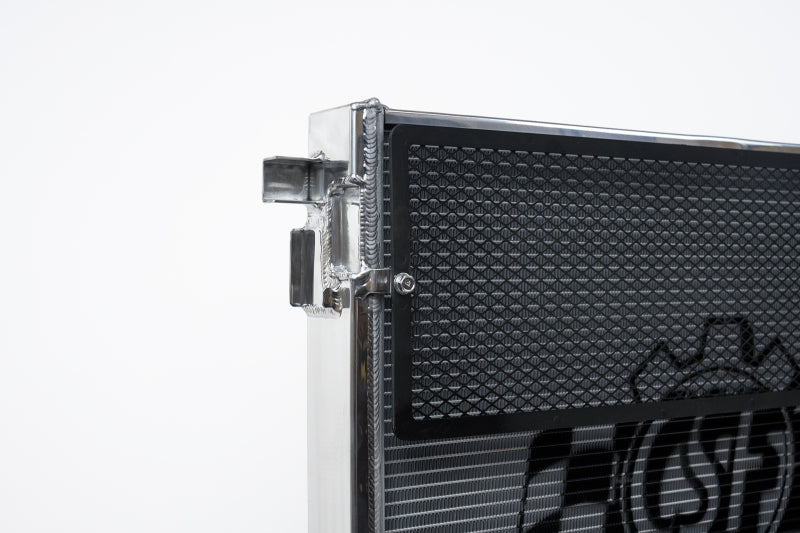

CSF BMW G8X M3/M4 High Performance Front Mount Heat Exchanger

In stock
Regular price $699.00
Product INFO
  • SKU T14.520703
  • Barcode 710353082157
In stock
Usually ships within 24 hours

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Market Description

  • The CSF Heat Exchanger features a 2-Row (vs OEM single row) Core that is 42mm thick with CSF's Exclusive B-Tube Technology. Increasing the size of the core and end tanks adds to the overall volume of the system which helps absorb more heat. The more efficient core not only helps dissipate more heat from the system, but also provides better airflow into the radiator that sits behind the heat exchanger. For vehicles equipped with the ZF8 Automatic Transmission, the heat exchanger core specifications were design concurrently with CSF's new Race-Spec Dual Core Transmission Oil Cooler (CSF #8221). The two included Black Rock Guards offer full protection for the heat exchanger (above and below the crash bar), especially when paired with aftermarket "open face" race style grilles. These grilles have become quite popular for performance and aesthetics, and keeping your heat exchanger safe from debris is very important. With well over 100 track hours worth of testing and thousands of miles on the road, you can be assured that the CSF's new High-Performance Front Mount Heat Exchanger has been thoroughly tested and vetted.
  • While in stock form, the G8X's factory cooling system does a decent job keeping up with the cooling demands. While this was true of the car in factory spec, those results changed when the cars were modified and started pushing more power. As with most performance vehicles, power adders were some of the first products to be released for the new G8X platform. Bolt-on upgrades, software tunes, and upgraded turbos are all great for speed, but start to create heat issues. Any time you add power to your car, you naturally increase the amount of heat the engine produces.

Associated Comments

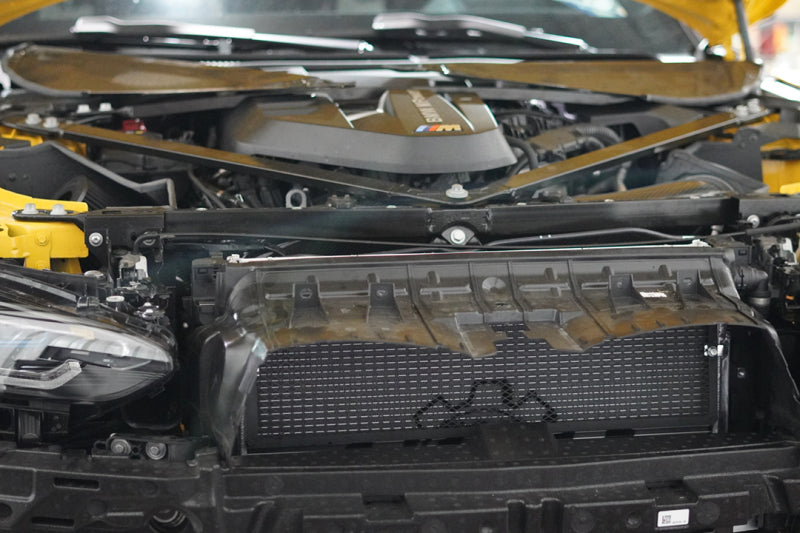

The CSF #8215 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Features and Benefits

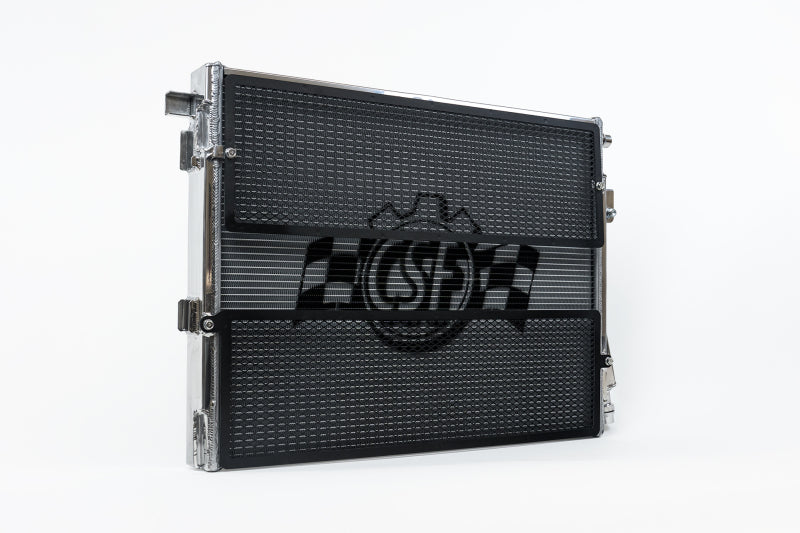

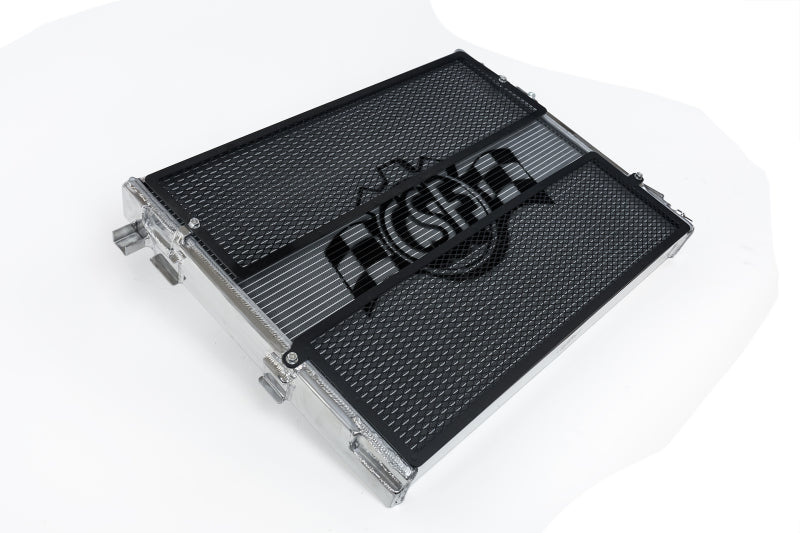

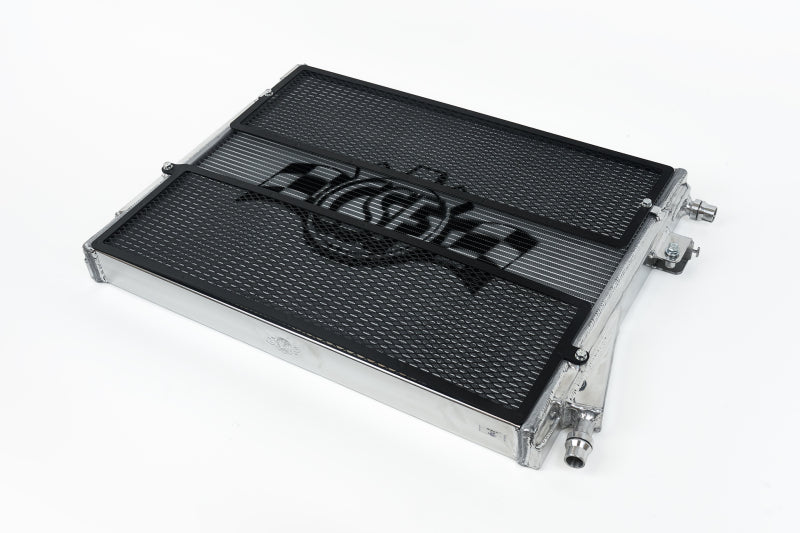

  • Includes Black Rock Guards (upper and lower) & Transmission Cooler Mounting Kit - Upper and Lower Rock Guards for Manual Transmission / Upper Rock Guard and Transmission Cooler Mounting Kit for ZF8 Auto
  • Tested and Proven by CSF's Global Network of R&D Partners, Including Leading Time Attack Teams, Tuners, and Turbo Kit Manufacturers
  • Significantly Reduces Intake Air Temperatures (IATs) for Maximum Performance (with Faster Heat Soak Recovery)
  • Improves Air Flow to the Rest of the Cooling System for Lower Engine Coolant and Engine Oil Temperatures
  • True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

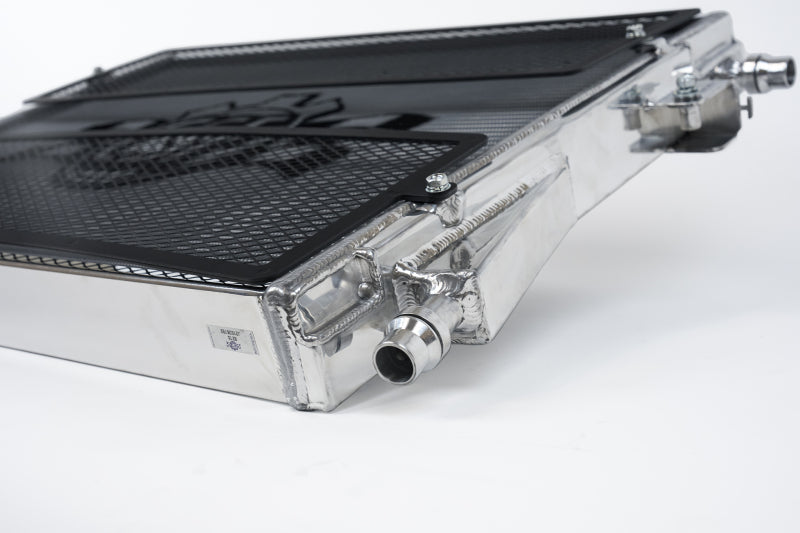

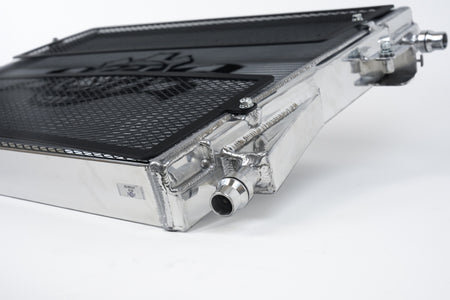

  • CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
  • 6.5mm Tall Multi-Louvered Fin with CSF's Exclusive B-Tube Technology
  • 100% All Aluminum TIG-Welded Construction
  • 2-Row, 42mm Ultra-High-Performance Core
  • 1-Hour "Mirror Finish" Hand Polish
  • 2-Year Limited Warranty

Product Description - Extended

Significantly reduce Intake Air Temperatures (IAT) for Maximum Performance (with Faster Heat Soak Recovery) on your BMW G8X M3/M4/M2 with a CSF Heat Exchangers.

Product Description - Long

BMW G8X M3/M4 High-Performance Radiator Front Mount Heat Exchanger

Product Description - Short

  • CSF BMW G8X M3/M4 High Performance Front Mount Heat Exchanger
  • CSF Heat Exchanger

Product Description - Invoice

CSF 8215 - BMW G8X Heat Exchanger

AAIA Part Type Description

Turbocharger Heat Exchanger
