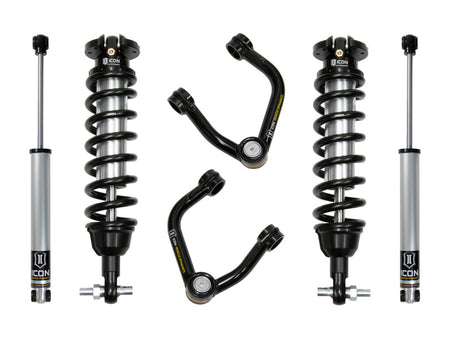

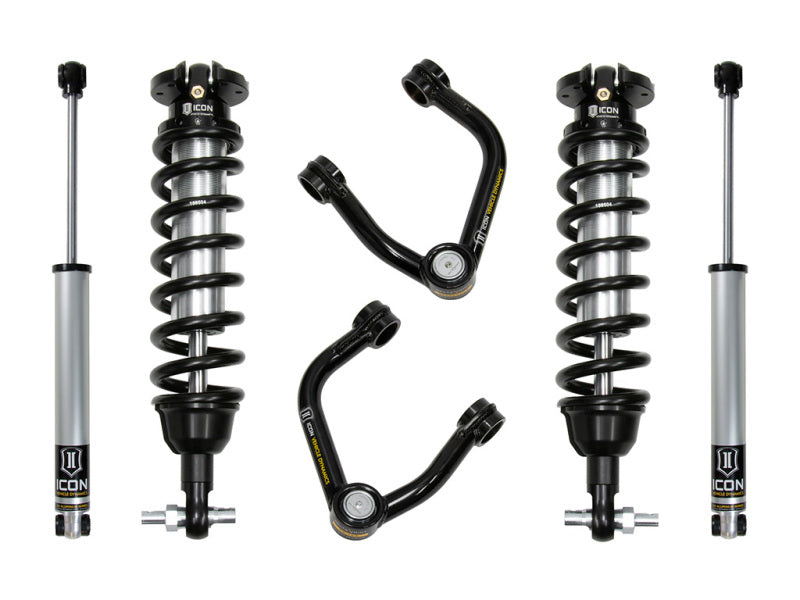

ICON 19-21 Ford Ranger 0-3.5in Stage 2 Suspension System w/ Tubular UCA Alum Knuckle

Name: ICON 19-21 Ford Ranger 0-3.5in Stage 2 Suspension System w/ Tubular UCA Alum Knuckle
Brand: ICON
SKU: T14.794656G
Price: 2832.30 USD
Availability: InStock

In stock

No reviews

$2,832.30

Product INFO

Vendor ICON
SKU T14.794656G
Barcode K93202TA

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K93202TA

Market Description

ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 2 (Tubular) system includes vehicle-specific tuned, extended travel 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. The included ICON tubular upper control arm kit is designed to improve the overall performance with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the ICON Delta Joint allows for full bump and extended droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2021 Ford Ranger Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features tubular steel upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Product Description - Extended

ICON complete suspension systems lift your Ford Ranger while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Features and Benefits

ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect
Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
ICON shocks feature vehicle specific tune for superior performance and ride quality
Corrosion resistant CAD plated shock body with 7/8" shaft (2.5 Series coilovers)
Increased lift height allows for fitment of larger and more aggressive tires
Height-adjustable coilovers provide a range of 0-3.5” of front lift height
Direct bolt-in design makes for a simple and straightforward installation
Delta Joint ball joints carry ICON's exclusive 5 year limited warranty
FK Rod End bearings provide extended longevity and minimal deflection
35% increase in front wheel travel over stock
Shocks are fully rebuildable and revalvable
Fits 2WD & 4WD applications

Associated Comments

Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
TECH NOTE: Compatible with 2019-2021 Rangers equipped with aluminum knuckles only
APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
TECH NOTE: Not compatible with Ranger Raptor.
Factory Wheels & Tires Fitment: Yes

Product Description - Short

ICON 19-21 Ford Ranger 0-3.5in Stage 2 Suspension System w/ Tubular UCA Alum Knuckle
SUSPENSION SYSTEM

Product Description - Long

19-21 FORD RANGER 0-3.5" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA AL KNUCKLE

AAIA Part Type Description

Suspension Lift Kit

Product Description - Invoice

K93202TA
