ICON 2022+ Toyota Tundra 1.5-2.25in Stage 3 Suspension System

Name: ICON 2022+ Toyota Tundra 1.5-2.25in Stage 3 Suspension System
Brand: ICON
SKU: T14.792464G
Price: 2089.78 USD
Availability: InStock

In stock

No reviews

$2,089.78

Product INFO

Vendor ICON
SKU T14.792464G
Barcode K53193

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K53193

Market Description

This Stage 3 system features the 2022-2025 Toyota Tundra VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 1.25-2.25” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.
The ICON Vehicle Dynamics Stage 3 complete suspension system for the 2022-2025 Toyota Tundra is our most basic system that features complete ICON threaded-body V.S. 2.5 Series Coilovers in the front, this system offers improved on- and off-road performance as well as adjustable front-end lift and leveling for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shocks a sway bar drop kit for the front of the truck is included along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.
Rounding out the Stage 3 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2022-2025 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

Associated Comments

TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
APPLICATION NOTE #148: ICON DOES NOT RECOMMEND LIFTING ABOVE 2.25" OF LIFT WITHOUT AN ICON UPPER CONTROL ARM, FAILURE TO DO SO CAN RESULT IN IMPROPER WHEEL ALIGNMENT AND CAUSE DAMAGE TO FRONT AXLES ON 4WD MODELS
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift lange.
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.25" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-2.25" over stock
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-3.25” over stock
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
OEM Wheels & Tires Fitment: Yes

Product Description - Extended

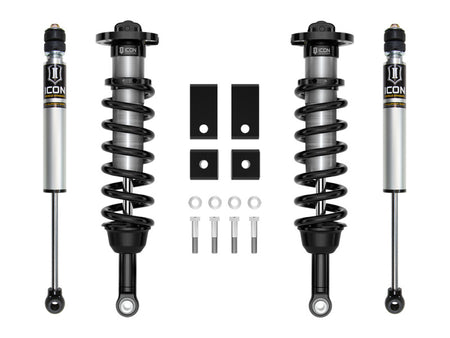

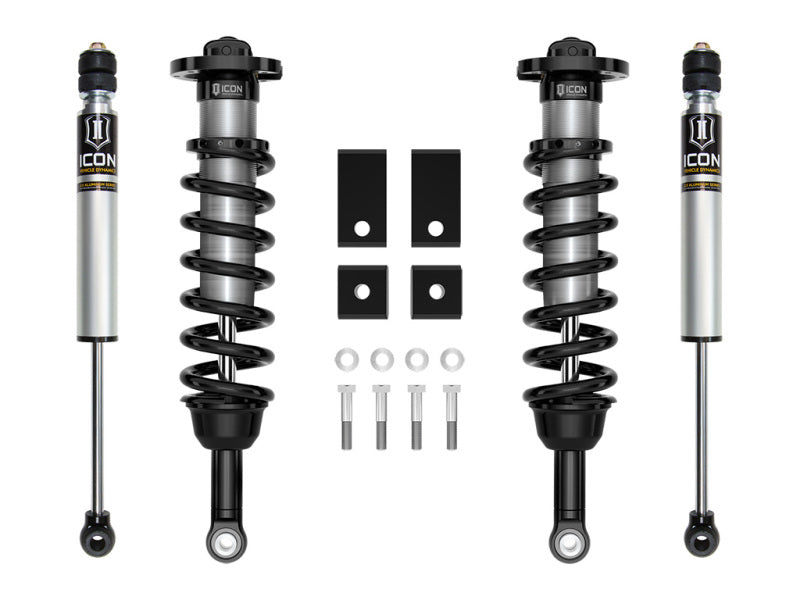

Stage 3 includes a pair of 2.5 Series coilovers for 1.25-2.25” of front lift, greater performance, and 35” tire fitment. Front sway bar brackets are also included and 2.0 Series rear shocks to balance the tuning from front to rear.

Features and Benefits

Adjustable front ride heights from 1.25-2.25” of front lift over stock when used with stock UCAs
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Included sway bar drop brackets reduce bind in OE sway bar links
All ICON shock absorbers are fully rebuildable and re-tunable
Vehicle specific design for 2022-2025 Toyota Tundra

Product Description - Short

ICON 2022+ Toyota Tundra 1.5-2.25in Stage 3 Suspension System
SUSPENSION SYSTEM

Product Description - Long

22-25 TUNDRA 1.25-2.25" STAGE 3 SUSPENSION SYSTEM

AAIA Part Type Description

Suspension Lift Kit

Product Description - Invoice

K53193
