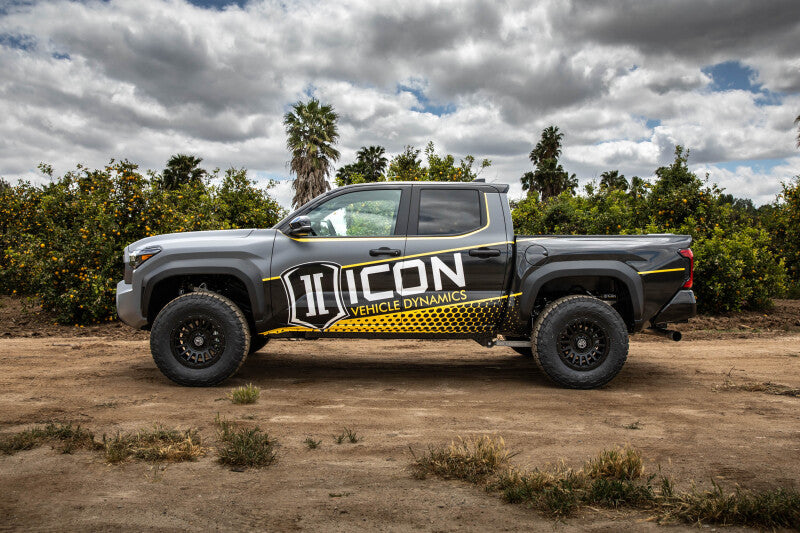

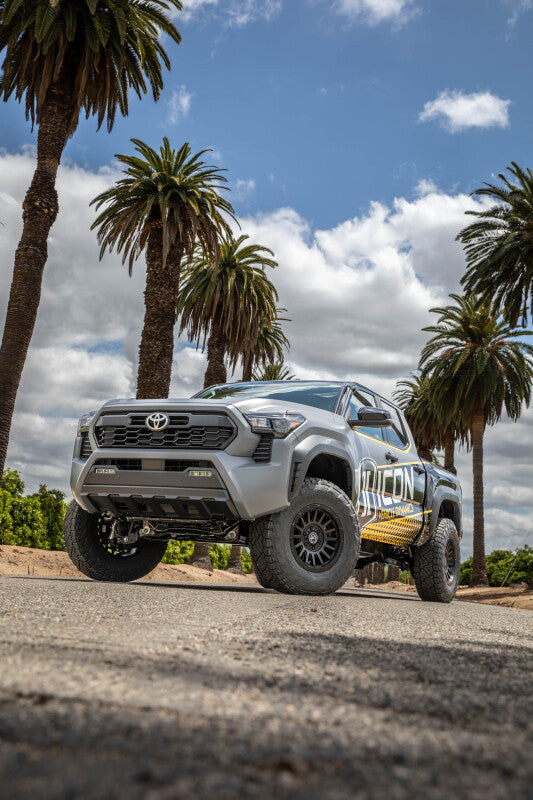

ICON 2024+ Toyota Tacoma 1.25in-3in Stage 6 Suspension System Tubular w/ Triple Rate Spring

Name: ICON 2024+ Toyota Tacoma 1.25in-3in Stage 6 Suspension System Tubular w/ Triple Rate Spring
Brand: ICON
SKU: T14.831947G
Price: 5699.00 USD
Availability: InStock

Pre-Order

No reviews

$5,699.00

Product INFO

Vendor ICON
SKU T14.831947G
Barcode K53296TS

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K53296TS

Market Description

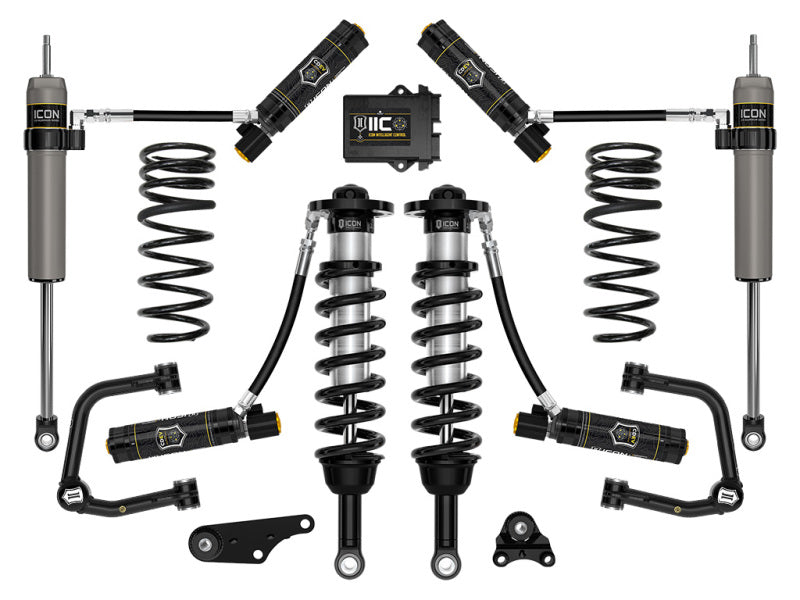

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 6 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.5 Aluminum Series CDEV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Associated Comments

APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

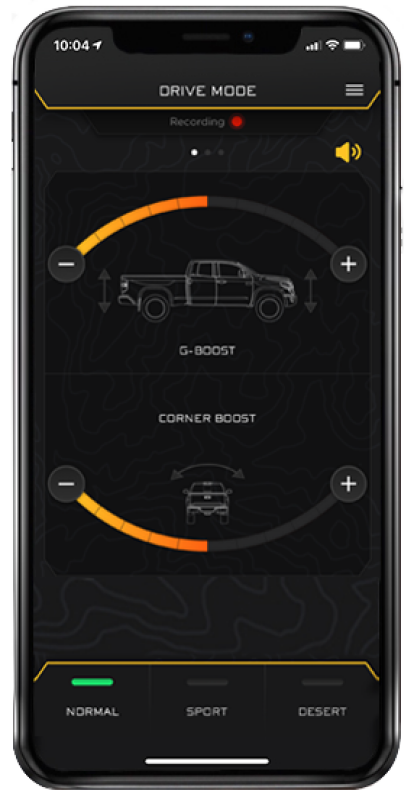

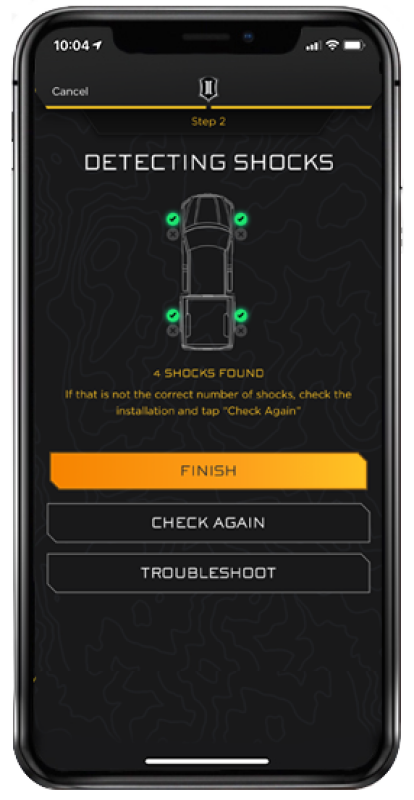

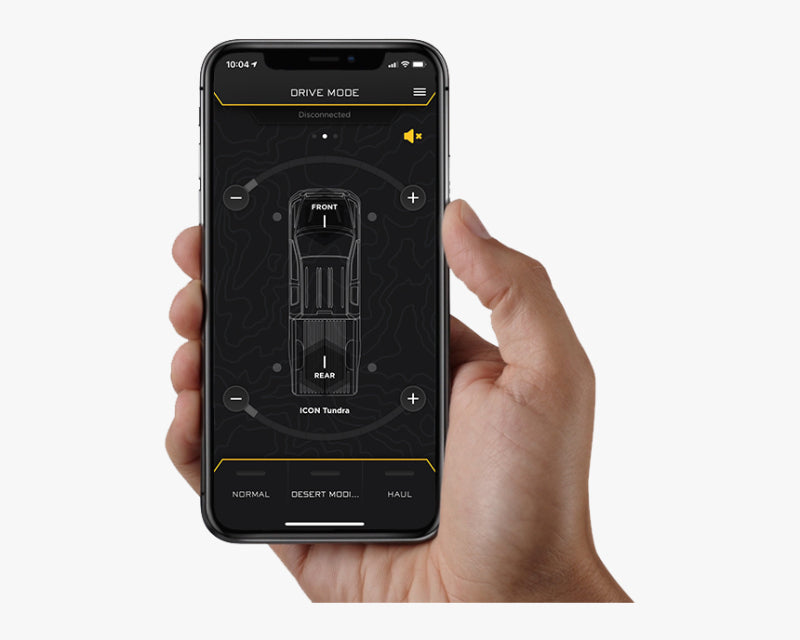

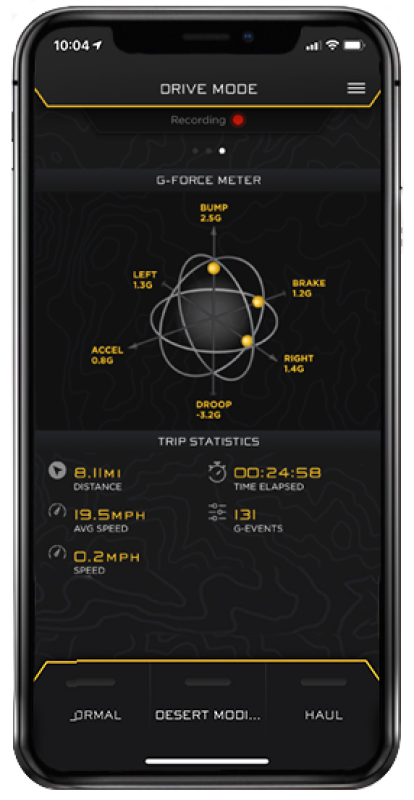

APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
OEM Wheels & Tires Fitment: Yes

Product Description - Extended

ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.

Features and Benefits

ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
Tubular UCAs for added strength, durability, and alignment correction for better drivability
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK Rod End bearings for extended longevity and minimal deflection
Adjustable coilovers provide 1.25-3" front lift height over stock
Increased wheel travel and improved ride quality over stock
6061 aircraft grade aluminum CNC machined components
ICON engineered front and rear coil springs

Product Description - Short

ICON 2024+ Toyota Tacoma 1.25in-3in Stage 6 Suspension System Tubular w/ Triple Rate Spring
SUSPENSION SYSTEM

Product Description - Long

24-25 TACOMA 1.25-3" STAGE 6 SUSPENSION SYSTEM TUBULAR WITH TRIPLE RATE SPRING

AAIA Part Type Description

Suspension Lift Kit

Product Description - Invoice

K53296TS
