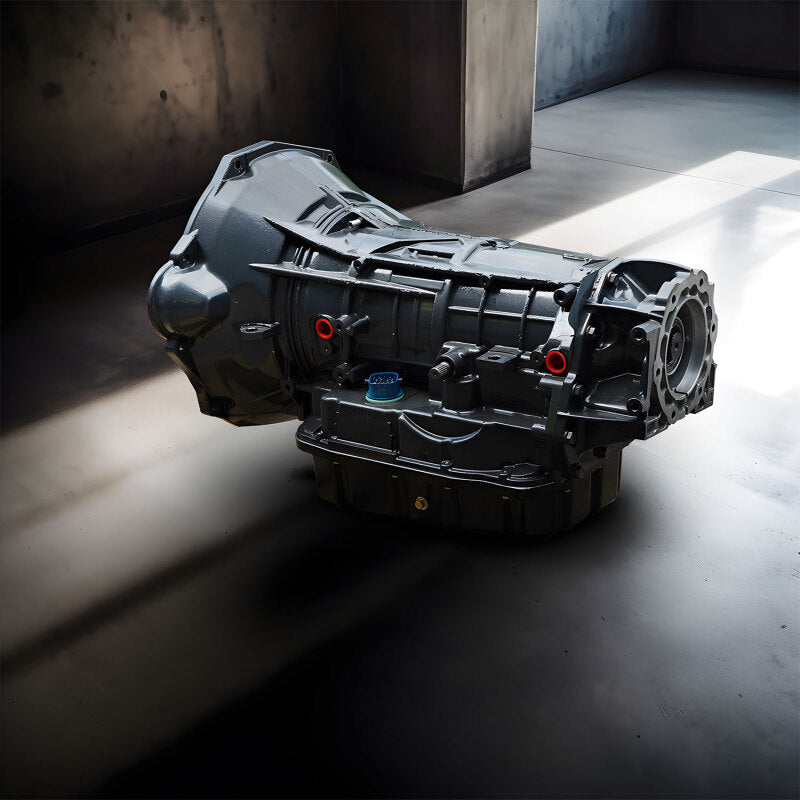

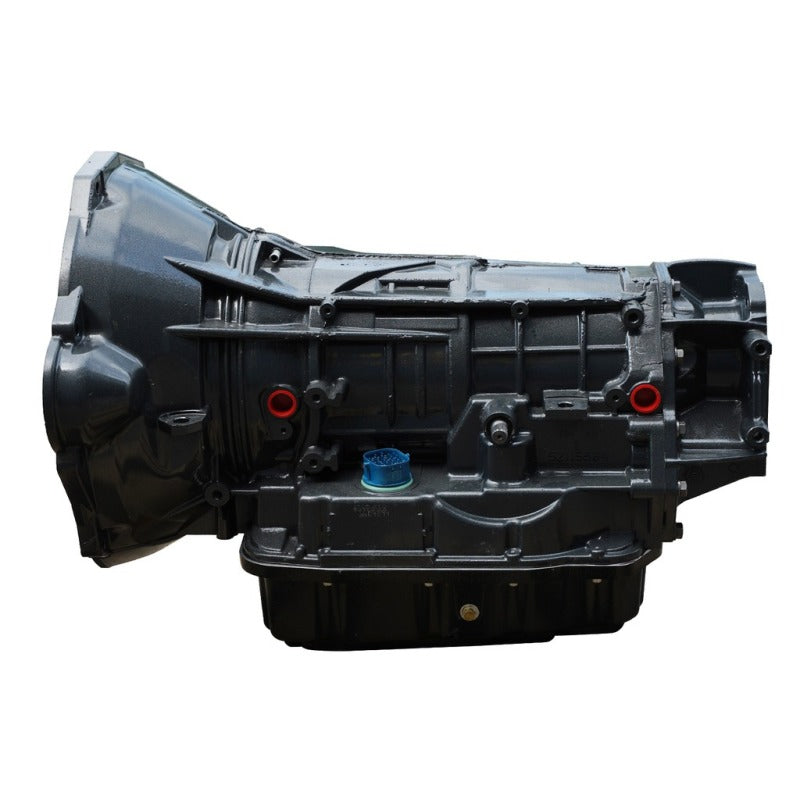

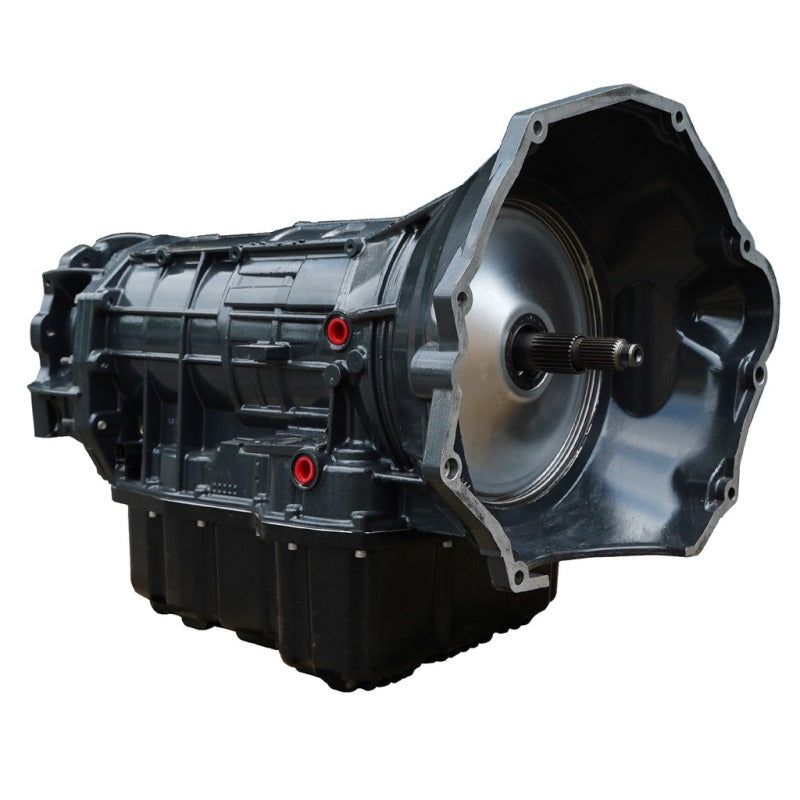

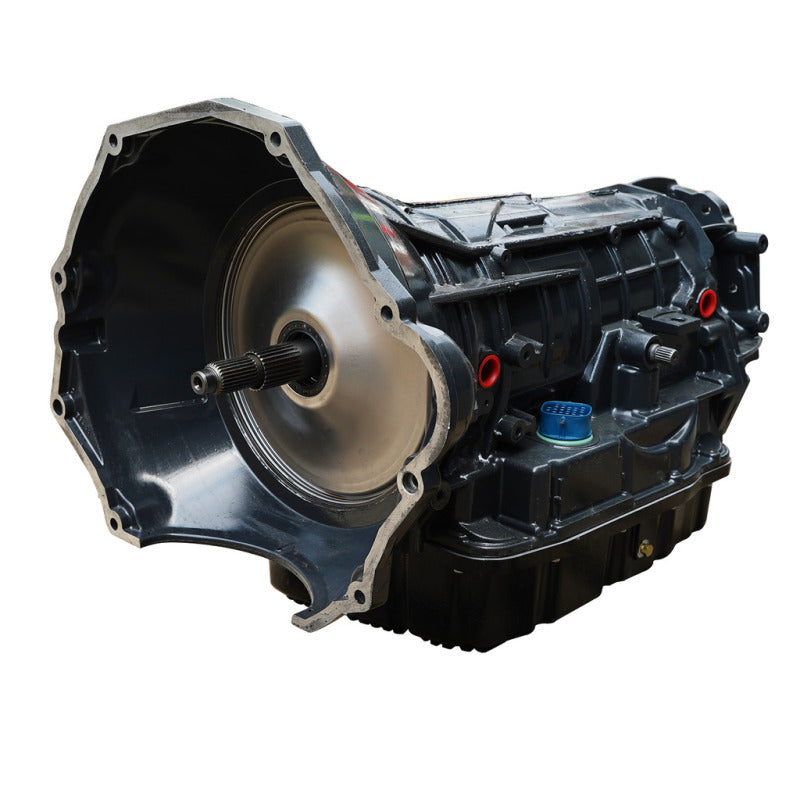

BD Diesel 19-24 Dodge 68RFE 4WD TorqueMaster Transmission w/ Billet Input Shaft

Pre-Order
Regular price $6,795.00
Product INFO
  • Vendor BD Diesel
  • SKU T14.1020951
  • Barcode 1064294B
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 1064294B


Market Description

  • BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD's state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD's roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD's comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!
  • BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Comes with Billet Input Shaft designed to withstand rapid acceleration and high torque.

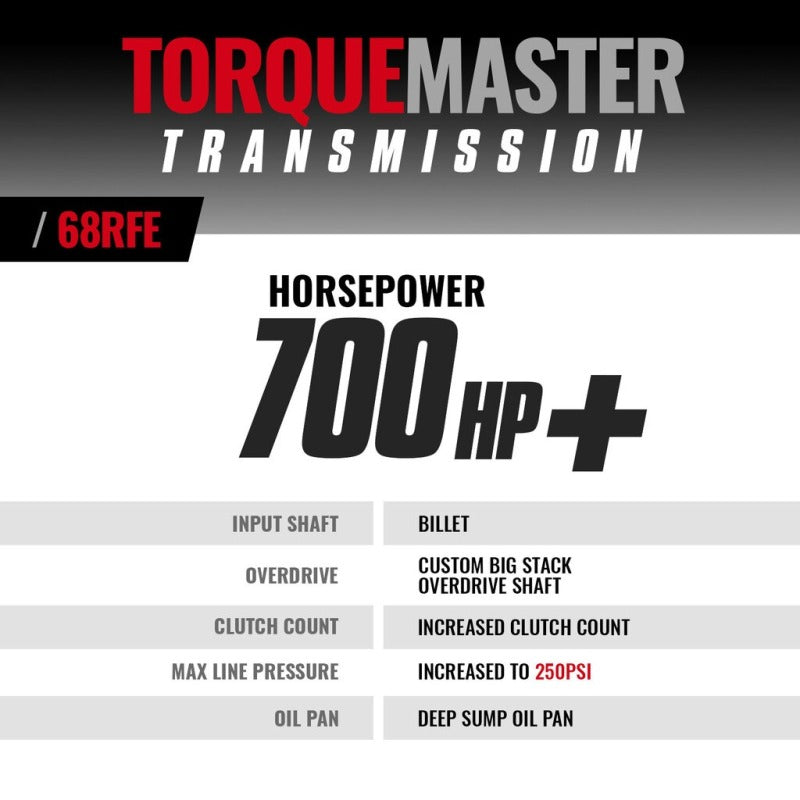

Features and Benefits

  • Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
  • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
  • Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
  • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
  • BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
  • Steel girdle added to 2C piston to allow for more clutches and broader apply area
  • Hard anodized valve body and new solenoid pack installed in every unit
  • Over Drive clutches 33% increase & 2C clutches 33% increase
  • BD Durable QT100 Pressure Plates For Increase Clutch Counts
  • Heavy Duty Cam And Roller Design Low Reverse One Way Clutch
  • Heavy duty cam & roller design low reverse one way clutch
  • Valve Body And Solenoid Installed In Every Unit
  • Custom Big Stack Overdrive Shaft
  • Custom Bonded Gasket Valve Body
  • Steel Girdle Added To 2C Piston
  • BD Reinforced Accumulator Plate
  • New 4C Billet Spring Retainer
  • No Race Abuse Covered

Product Description - Extended

  • BD TorqueMaster Dodge 68RFE Transmission - 2019-2022 4wd c/w Billet Input Shaft
  • Transmission; 68RFE Transmission; Stage 5; w/Billet Input Shaft;

Product Description - Short

  • BD Diesel 19-24 Dodge 68RFE 4WD TorqueMaster Transmission w/ Billet Input Shaft
  • TRANSMISSION STAGE 5
  • Auto Trans Assembly

Product Description - Long

  • BD TorqueMaster Dodge 68RFE Transmission 2019-2022 4wd
  • Transmission

Product Description - Invoice

TRANS PACKAGE 68RFE DODGE 2019-2022 4WD

AAIA Part Type Description

Automatic Transmission Assembly
