Fabtech 01-06 GM C/K2500HD 8in Perf Sys w/Stealth

Pre-Order
Regular price $4,117.37
Product INFO
  • Vendor Fabtech
  • SKU T14.588084G
  • Barcode K1015M
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K1015M


Market Description

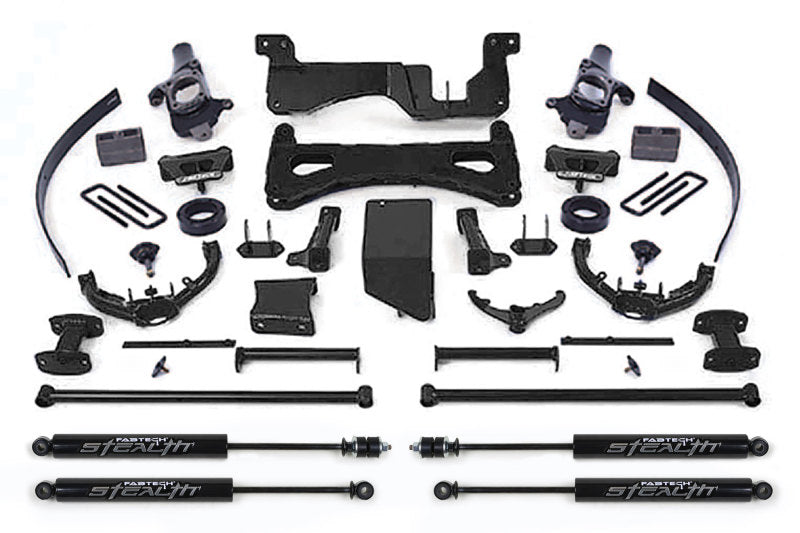

  • The 8" Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4" thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech’s combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37" tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech’s optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4" block kit with 2" add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket.
  • Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast.
  • 2001-06 CHEVY SILVERADO 2500HD/3500HD | GMC SIERRA 2500HD/3500HD 2WD/4WD

Product Description - Extended

  • The 8" Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4" thick, high arched lower control arm crossmembers with tubular upper control arms
  • Performance Lift System w/Shocks; w/Stealth Monotube Shocks; 8 in. Lift;

Product Description - Long

  • Chevrolet, GMC (6.0, 6.6, 8.1) 8" Performance Suspension Lift Kit
  • Performance Lift System w/Shocks

Product Description - Short

  • Fabtech 01-06 GM C/K2500HD 8in Perf Sys w/Stealth
  • LftKt-Suspw/Shock
  • FABTECH K1015M

Features and Benefits

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Everything You Will Need To Lift Your Vehicle
  • No Driveshaft Change Required For Auto Trac
  • Allows Use Of Stock Tires And Wheels
  • Retains Factory Steering Centerlink
  • Retains Factory Upper Control Arms
  • Increased Caster For More Control
  • Ductile Iron Steering Knuckles
  • New Tubular Upper Control Arms
  • Front Differential Skid Plate
  • Quick No Weld Installation
  • Torsion Bar Drop Brackets
  • Billet Sway Bar End Links
  • Rear Block & U-bolt Kit
  • Rear Add-a-leaf
  • Impact Struts

Product Description - Invoice

FABTECH PN K1015M 8" SYSTEM CHEVY 2/3500

AAIA Part Type Description

Suspension Lift Kit
