Fabtech 07-13 GM C1500 P/U w/o Autoride 2WD 6in Perf Sys w/Dlss 4.0C/Os & Rr Dlss

Pre-Order
Regular price $4,708.04
Product INFO
  • Vendor Fabtech
  • SKU T14.588095G
  • Barcode K1029DL
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K1029DL


Market Description

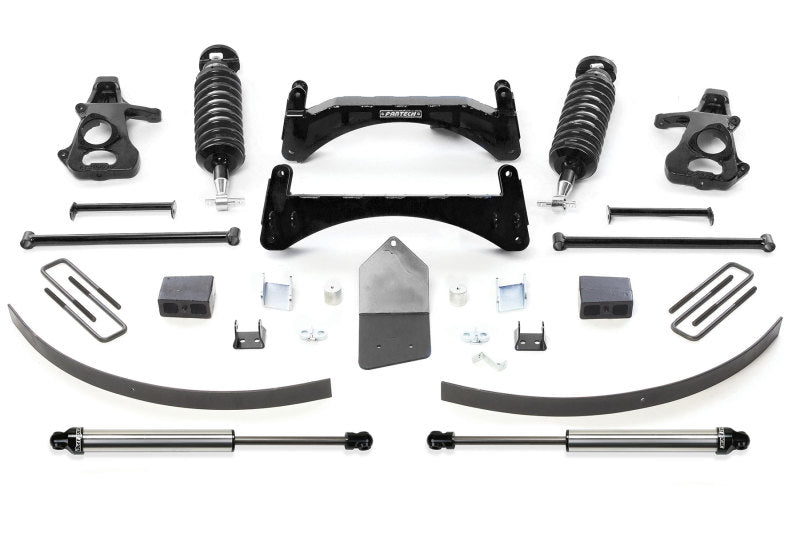

  • Our 6in Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35in tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4in thick steel skid plate. Rear suspension lift is accomplished via a block and add-a-leaf system. Includes front 2.5 Dirt Logic Stainless Steel coil over shocks and rear 2.25 Dirt Logic Stainless Steel shocks. This system has been properly designed to work with the factory Stabilitrak safety functions without reprogramming the vehicle's computer.
  • Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software; fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market.

Associated Comments

TIRE SIZE - 35/12.50R17 Wheel - 17X8 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; DOES NOT FIT STANDARD CAB.

Product Description - Short

  • Fabtech 07-13 GM C1500 P/U w/o Autoride 2WD 6in Perf Sys w/Dlss 4.0C/Os & Rr Dlss
  • 6" PERF SYS W/DLSS 4
  • LftKt-Suspw/Shock

Product Description - Extended

  • Performance Lift System w/Shocks; w/DLSS Shocks; 6 in. Lift; 4.0 Coilovers;
  • 6" PERF SYS W/DLSS 4.0C/Os & RR DLSS 07-13 GM C1500 P/U W/O AUTORIDE 2WD.

Product Description - Long

  • 6" PERF SYS W/DLSS 4.0C/Os & RR DLSS 07-13 GM C1500 P/U W/O AUTORIDE 2WD
  • Performance Lift System w/Shocks

Features and Benefits

  • Everything You Will Need To Lift Your Vehicle
  • No Driveshaft Change Required For Auto Trac
  • Allows Use Of Stock Tires And Wheels
  • Retains Factory Steering Centerlink
  • Retains Factory Upper Control Arms
  • Increased Caster For More Control
  • Quick No Weld Installation

Product Description - Invoice

Fabtech-6" PERF SYS W/DLSS 4

AAIA Part Type Description

Suspension Lift Kit
