Manufacturer Part # : K1061DL
Market Description
- Arms eliminate upper ball joint w/ super strong 1in ID Stainless American Uniball - Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments - Allows for increased Wheel travel when used with Dirt Logic 2.5 Coilover shocks - Chromoly tubing reduces flex found in stock arms for more positive road feel - 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature - Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs. - Built with same materials as found on Trophy Trucks - .120in Wall 4130 Chromoly Tubing. 1.50in OD. - .250in wall DOM Bushing Barrels - 1in ID Stainless Steel American Uniball - 17-4 Stainless Misalignments - Heat Treated 17-4 Stainless Steel Tapered Uniball Pins.
- Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
Associated Comments
TIRE SIZE - 275/65R18 Wheel - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 285/55R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL Wheel DRIVE MODELS.; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 128. FITS MODELS WITH FACTORY FORGED BLACK STEEL UPPER CONTROL ARM.
Product Description - Extended

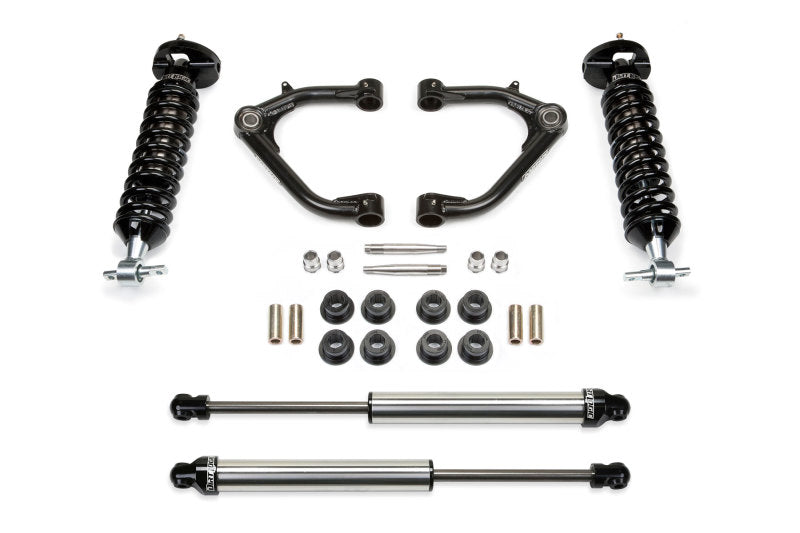

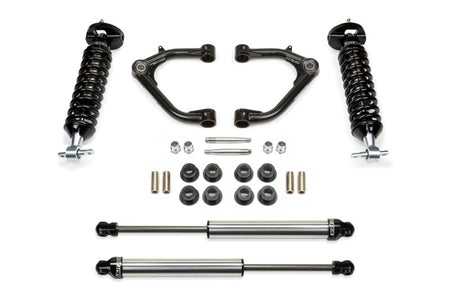

- Uniball Control Arm Lift System; 2 in. Lift; Incl. Uniballs; Front Coilovers; Rear Shocks; All Required Hardware; DLSS Shocks;
- 2" UCA KIT W/ DL 2.5 & 2.25 07-13 GM C/K1500 P/U & 14-18 C/K1500 P/U W/ OE FORG STL UCA.
Product Description - Short
- Fabtech 07-13 GM C/K1500 P/U & 14-18 C/K1500 P/U w/oE Forg Stl UCA 2in UCA Kit w/Dl 2.5 & 2.25
- 2" UCA KIT W/ DL 2.5
- LftKt-Suspw/Shock
Product Description - Long
- 2" UCA KIT W/ DL 2.5 & 2.25 07-13 GM C/K1500 P/U & 14-18 C/K1500 P/U W/ OE FORG
- Uniball Control Arm Lift System
Features and Benefits
- Regulates Wheel Motion In Relation To Body
- Custom Engineered For High Quality Ride
Product Description - Invoice
Fabtech-2" UCA KIT W/ DL 2.5
AAIA Part Type Description
Suspension Lift Kit
