Fabtech 07-18 GM K1500 4in Uniball UCA System w/Rear Stealth Shocks

Pre-Order
Regular price $1,230.48
Product INFO
  • Vendor Fabtech
  • SKU T14.588125G
  • Barcode K1062M
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K1062M


Market Description

  • This system offers a mild lift height with easy installation for clearance of 33 tall tires on 2014 C/K1500s w/ factory Steel suspension. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120 wall 4130 Chromoly tubing with a 1.50 OD and 1 FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2 rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping.
  • Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range.
  • The arms are constructed of top quality material including .120” wall 4130 Chromoly tubing with a 1.50” OD and 1” FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions.
  • Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping.
  • The front differential is relocated to keep CV angles proper with the new lift height while a 1/4” thick steel skid plate provides protection against offroad obstacles.
  • This system offers a mild lift height with easy installation for clearance of 33” tall tires on GM C/K1500s.

Product Description - Extended

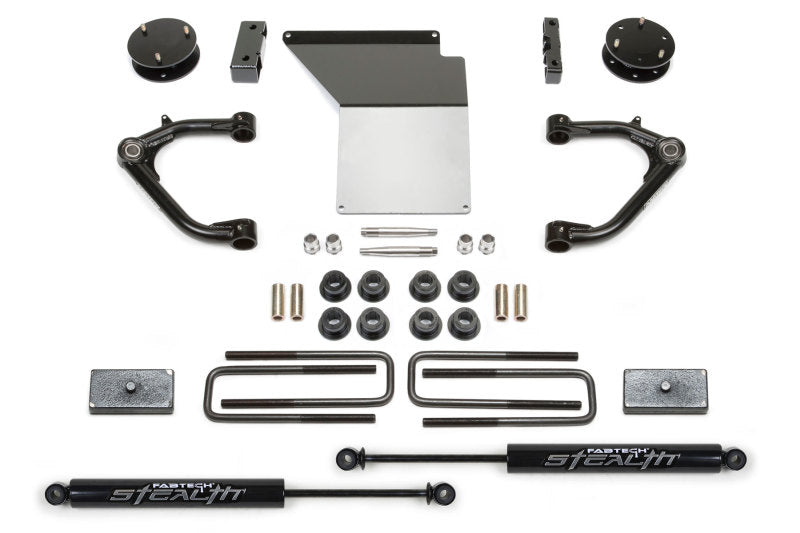

  • Uniball Control Arm Lift System; w/Stealth Monotube Shocks; 4 in. Lift; Incl. Uniball Upper Control Arms; Differential Drop Brackets; Differential Skid Plate; Block/U-Bolts;
  • Chevrolet, GMC (4.3, 4.8, 5.3, 6.0, 6.2) 3" Uniball Suspension Lift Kit 2007-2008 1500 2WD/4WD

Product Description - Short

  • Fabtech 07-18 GM K1500 4in Uniball UCA System w/Rear Stealth Shocks
  • LftKt-Suspw/Shock
  • FABTECH K1062M

Product Description - Long

  • 3" Uniball System with Rear Stealth Shocks Chevy 1500 2WD/4WD
  • Uniball Control Arm Lift System

Product Description - Invoice

FABTECH PN K1062M 3" UNIBALL CHEVY 1500

Features and Benefits

  • Simplified Design With Fast Install
  • Steering Knuckles Retain Proper ESC
  • No Loss Of Ground Clearance

AAIA Part Type Description

Suspension Lift Kit
