Fabtech 09-13 Ford F150 4WD 4in Perf Sys w/Dlss Shks

Pre-Order
Regular price $3,733.50
Product INFO
  • Vendor Fabtech
  • SKU T14.588487G
  • Barcode K2184DL
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K2184DL


Market Description

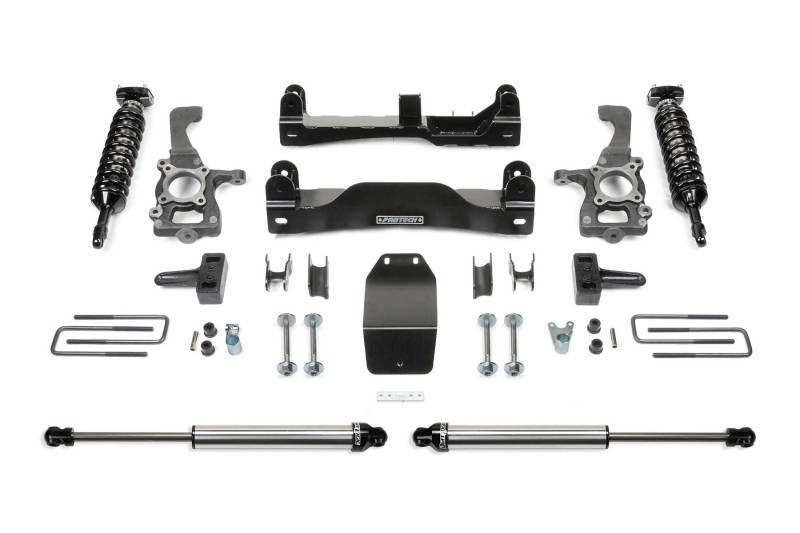

  • Fabtech's new 4'' F150 system utilizes their proven heavy duty construction and design features found in their 6'' systems but with less lift and at a much lower price. This 4'' System allows use of 35'' tall tires and features high arched lower control arm crossmembers constructed of 1/4in thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration. The Performance System features Dirt Logic 2.5 Stainless Steel Coilover front shocks and Dirt Logic 2.25 Stainless Steel rear shocks for aggressive offroad capabilities with a smooth highway ride. The 4'' System allows use of 33'' or 35'' tires and is ESC (Electronic Stability Control) and Traction Control compliant.
  • Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software; fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market.

Associated Comments

TIRE SIZE - 35/12.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/60R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 12WILL NOT FIT RAPTOR MODELS.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35 IN. TIRES

Product Description - Extended

  • Performance Lift System w/Shocks; w/DLSS Shocks; 4 in. Lift;
  • 4" PERF SYS W/ DLSS SHKS 09-13 FORD F150 4WD.

Product Description - Short

  • Fabtech 09-13 Ford F150 4WD 4in Perf Sys w/Dlss Shks
  • 4" PERF SYS W/ DLSS
  • LftKt-Suspw/Shock

Features and Benefits

  • Everything You Will Need To Lift Your Vehicle
  • No Driveshaft Change Required For Auto Trac
  • Allows Use Of Stock Tires And Wheels
  • Retains Factory Steering Centerlink
  • Retains Factory Upper Control Arms
  • Increased Caster For More Control
  • Quick No Weld Installation

Product Description - Long

  • 4" PERF SYS W/ DLSS SHKS 09-13 FORD F150 4WD
  • Performance Lift System w/Shocks

Product Description - Invoice

Fabtech-4" PERF SYS W/ DLSS

AAIA Part Type Description

Suspension Lift Kit
