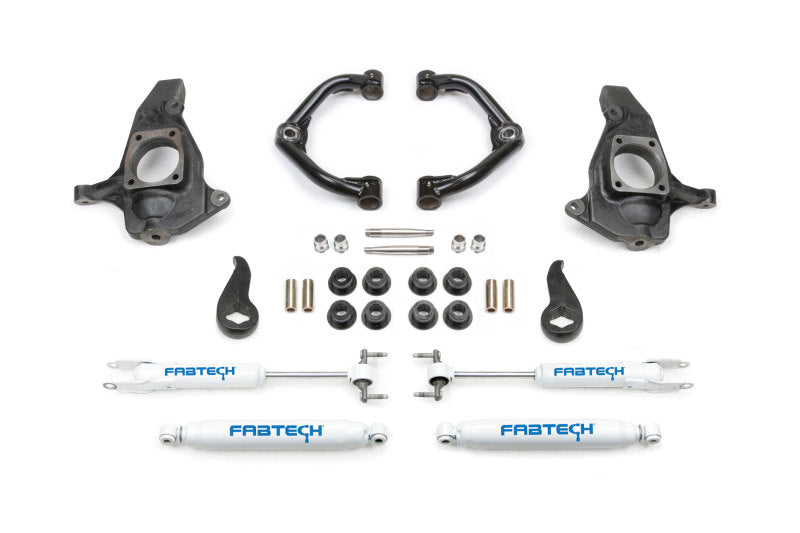

Fabtech 11-19 GM C/K2500HD/3500HD 4in Ultimate System w/Uniball UCA & Perf. Shocks

Pre-Order
Regular price $1,697.61
Product INFO
  • Vendor Fabtech
  • SKU T14.588127G
  • Barcode K1064
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K1064


Market Description

  • Obtain increased wheel travel with a mild lift height with these heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25 OD, .120 wall thick chromoly tube construction with 1 diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. The replacement UCAs have been designed to work in conjunction with Fabtechs Dirt Logic 2.5 Coilover shocks providing 10 of wheel travel for a complete front suspension system upgrade. The vehicles offroad suspension performance will be greatly increased due to the extensive ride tuning of the Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25s.
  • The 3.5” System is available with our Uniball Upper Control Arms that feature .120” wall 4130 Chromoly tubing with a 1.50” OD 1” FK Stainless PTFE Uniballs for 9” of front wheel travel. The system also includes heavy duty ductile iron steering knuckles and forged adjusting torsion bar keys to provide the proper amount of lift without CV bind.
  • This system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1? rear block kit is available (2500HD Part # FTS21110) or (3500HD Part # FTS21111).

Product Description - Extended

  • The 3.5” System is available with our Uniball Upper Control Arms that feature .120” wall 4130 Chromoly tubing with a 1.50” OD 1” FK Stainless PTFE Uniballs for 9” of front wheel travel.
  • Uniball Control Arm Lift System; w/Performance Shocks; 4 in. Lift; Incl. Uniball Control Arm;

Product Description - Short

  • Fabtech 11-19 GM C/K2500HD/3500HD 4in Ultimate System w/Uniball UCA & Perf. Shocks
  • LftKt-Suspw/Shock

Product Description - Long

  • 2011-19 Chevy 2/3500HD 3.5" UCA Ball Joint System w/ Performance Shocks
  • Uniball Control Arm Lift System

Features and Benefits

  • Upper Control Arms Built With Same Materials Found On Trophy Trucks
  • Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
  • Regulates Wheel Motion In Relation To Body
  • .120" Wall 4130 Chromoly Tubing. 1.50" OD
  • Custom Engineered For High Quality Ride
  • 1" ID Stainless Steel American Uniball
  • .250" wall DOM Bushing Barrels
  • Ductile Iron Steering Knuckles
  • 17-4 Stainless Misalignments
  • Forged Torsion Bar Keys
  • Upper Control Arm Kit

Product Description - Invoice

FABTECH PN K1064 3.5" UCA CHEVY 2/3500HD

AAIA Part Type Description

Suspension Lift Kit
