Fabtech 14-18 GM K1500 w/OE Alum. UCA 4in Uniball UCA System w/DL 2.5 Resi Coilover & Rear DL Shocks
Regular price
$3,655.38
Product INFO
- Vendor Fabtech
- SKU T14.588173G
Manufacturer Part # : K1110DL
Market Description

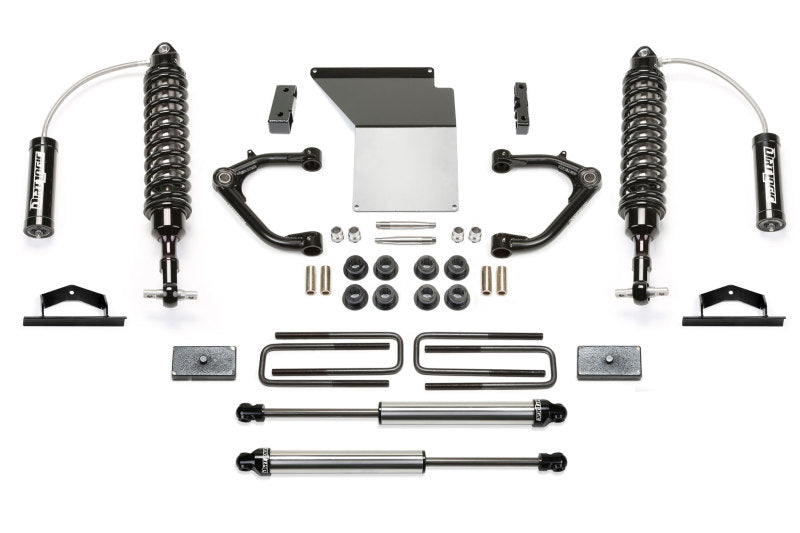

- This system offers a mild lift height with easy installation for clearance of 33'' tall tires on 2014-15 K1500's w/ factory Aluminum suspension. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120'' wall 4130 Chromoly tubing with a 1.50'' OD and 1'' FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4'' thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2'' rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use. -Best in class system for aggressive offroad use and good highway ride -Increased ground clearance -Top quality Uniball Upper Control Arms for aggressive offroad use -1'' ID American made FK Uniballs with PTFE for ultimate strength -Includes Dirt Logic 2.5 Coilovers for superior damping -Increased fender clearance compared to a Leveling Kit for 33'' tall tires -Suspension can be restored to stock. NOTE- Before ordering visually check your vehicle's factory suspension for aluminum or steel version. This system will only fit factory aluminum suspension vehicles.
- Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
Associated Comments
TIRE SIZE - 33/12.50R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 Wheel - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING
Product Description - Extended
- Uniball Control Arm Lift System; 4 in. Lift; Uniball Upper Control Arm; Front Dirt Logic SS 2.5 Coilover Resi; Rear Dirt Logic SS Shocks;
- 3" UNIBALL UCA SYS W/ DL 2.5 2.25 14-18 GM C/K1500 P/U W/ OE ALM OR STMP STL UCA.
Product Description - Short
- Fabtech 14-18 GM K1500 w/OE Alum. UCA 4in Uniball UCA System w/DL 2.5 Resi Coilover & Rear DL Shocks
- 3" UNIBALL UCA SYS W
- LftKt-Suspw/Shock
Product Description - Long
- 3" UNIBALL UCA SYS W/ DL 2.5 2.25 14-18 GM C/K1500 P/U W/ OE ALM OR STMP STL UCA
- Uniball Control Arm Lift System
Features and Benefits
- Regulates Wheel Motion In Relation To Body
- Custom Engineered For High Quality Ride
- Upper Control Arm Kit
Product Description - Invoice
Fabtech-3" UNIBALL UCA SYS W
AAIA Part Type Description
Suspension Lift Kit
