Honda B-Series Torque Plate by MAPerformance

In stock
Regular price $349.99
Product INFO
  • SKU MAP.MAP HON-B-TQP
  • Barcode MAP HON-B-TQP
In stock
Usually ships within 24 hours

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

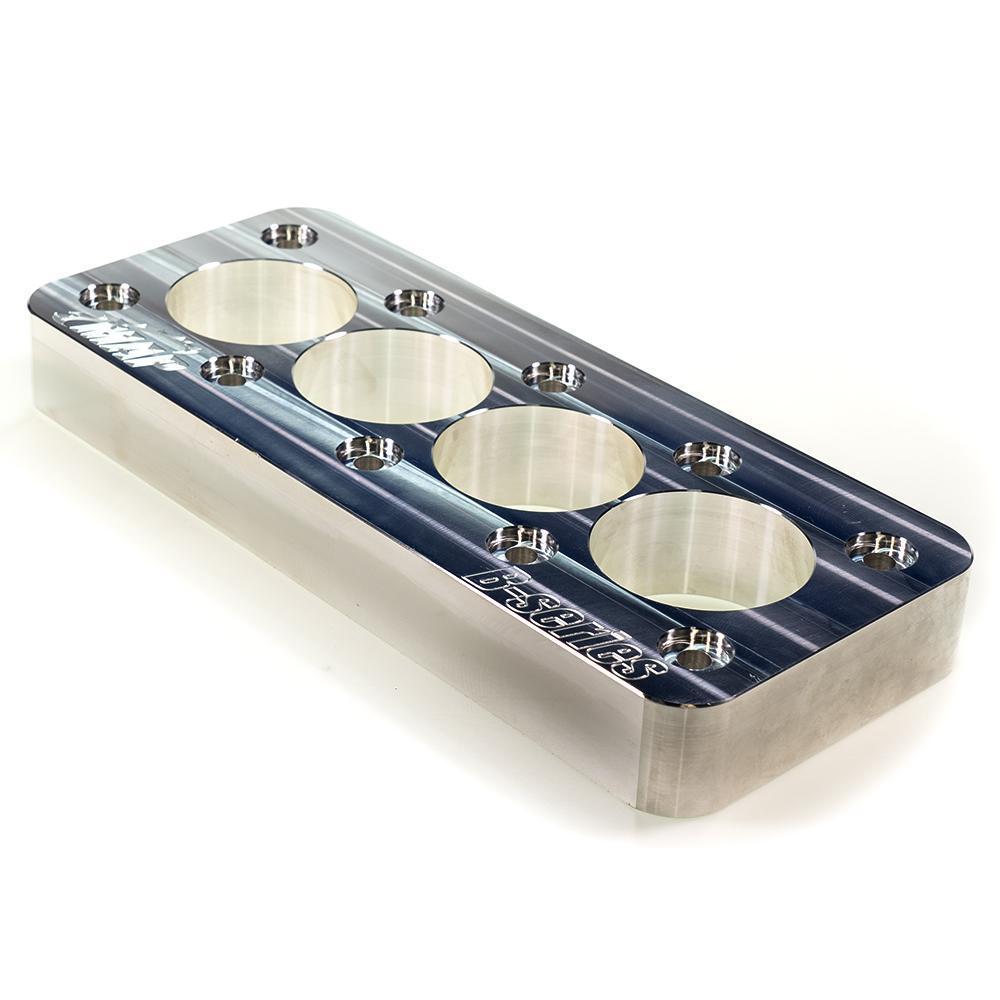

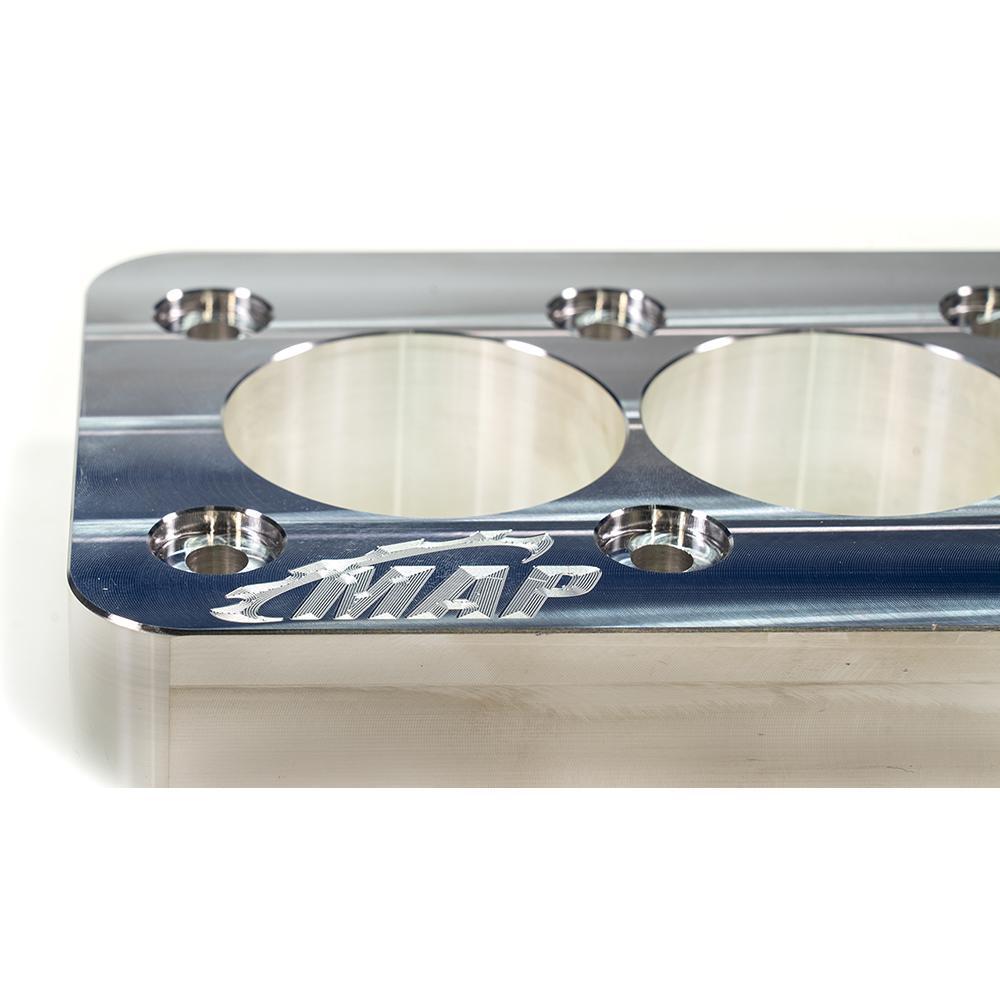

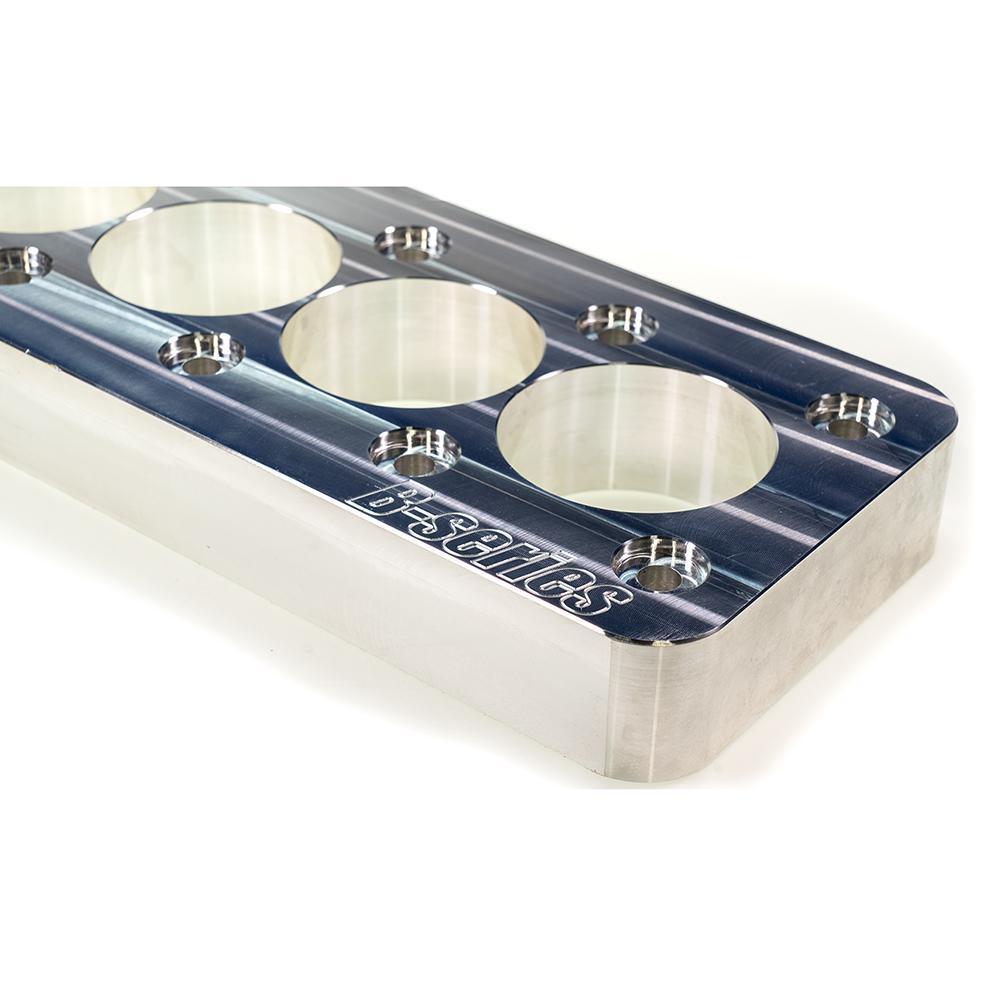

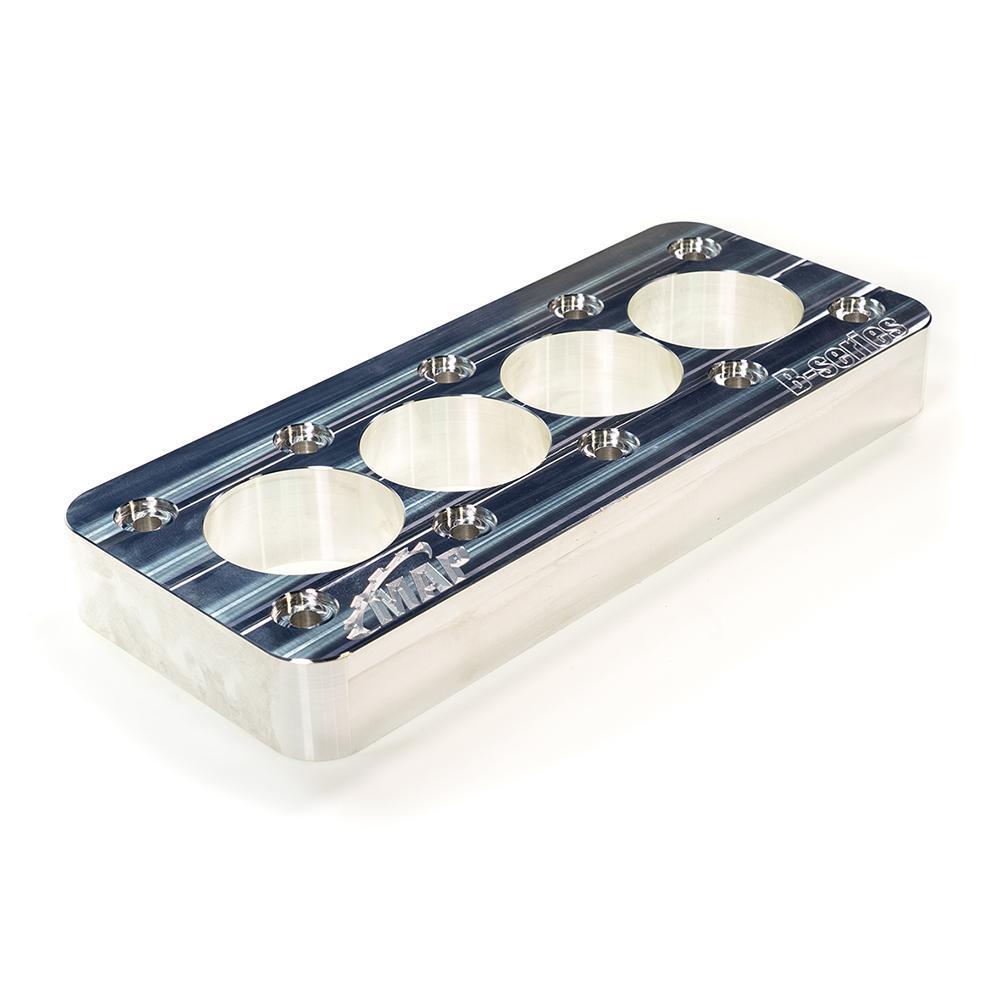

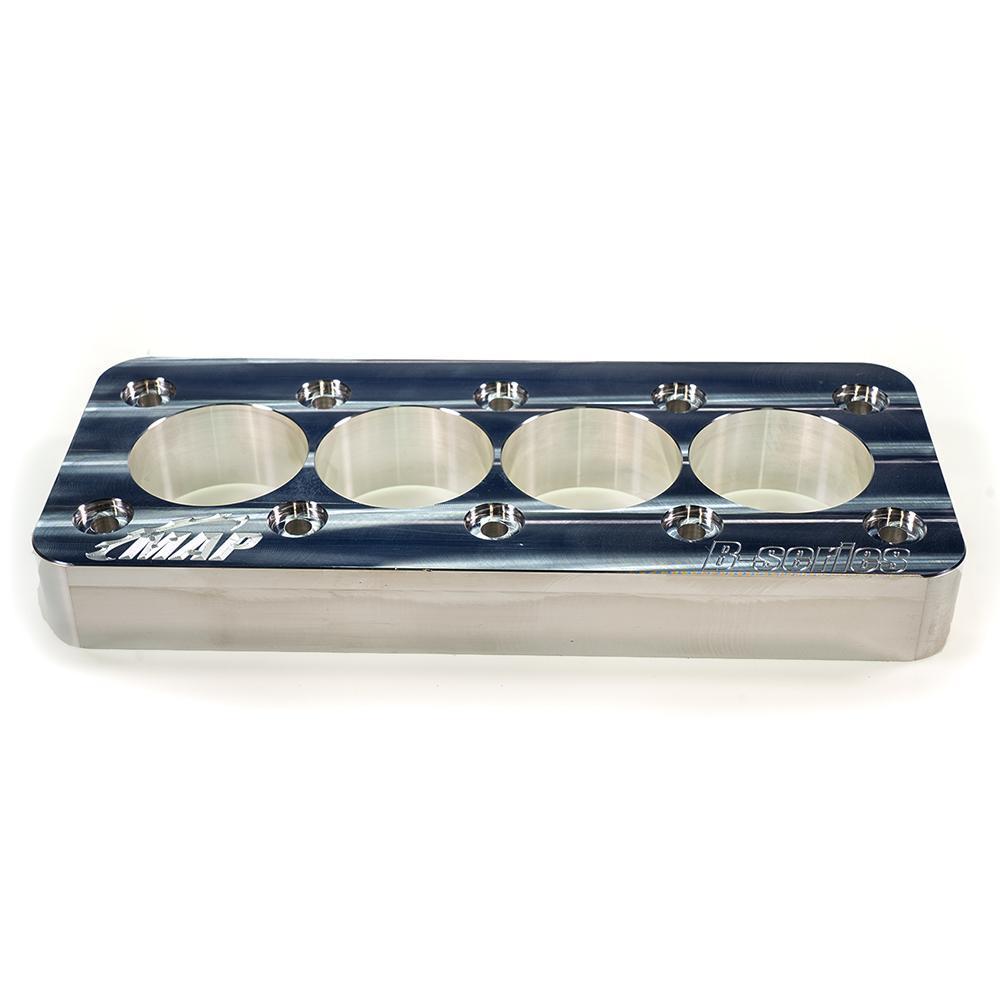

MAPerformance Torque Plate for Honda B-Series Engines

A torque plate is essential during any boring or honing process. When you torque a head down on the block, the pressure from the bolts will cause the cylinder bore to slightly deform.

A torque plate takes the place of the head during machining to simulate any distortion that will be caused when the head studs/bolts are tightened. Using a torque plate while boring and/or honing removes any bore irregularities and enables a true cylindrical shape, while allowing the machine operator access to the bores.

Features

  • High Quality 2" Thick Billet Aluminum Construction
  • Includes Spacers To Give Proper Depth Of Penetration Into The Block
  • Total Thickness Including The Spacers Is 2.975"
  • Works With A Wide Range Of Bore Sizes
  • 86mm Maximum Bore Size
  • 100% Made Right Here In The USA

Benefits

  • Protects Against Distortions Typically Caused By Boring Or Honing Processes
  • Enables A True Cylindrical Shape While Allowing Access To The Bores

Please Note: Must use GSR length head studs such as ARP 208-4303. We also recommended tightening the nuts in three equal steps to 80 ft/lbs with ARP ultra-torque lubricant.

Applications

  • Honda B-Series Engines

What's In The Box?

  • 1 - Honda B-Series Torque Plate
  • 10 - Torque Plate Standoffs

Warranty

  • MAP Limited Lifetime Warranty
