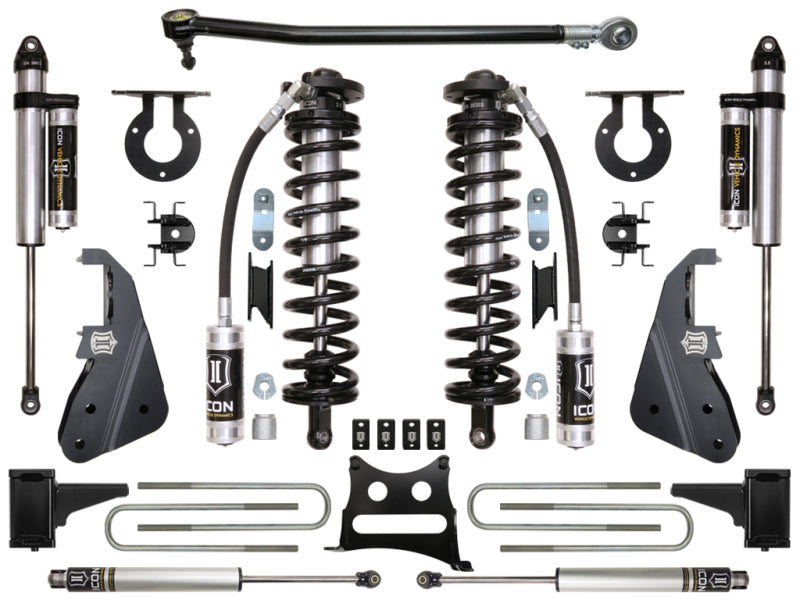

ICON 2017+ Ford F-250/F-350 4-5.5in Stage 3 Coilover Conversion System

Pre-Order
Regular price $6,389.88
Product INFO
  • Vendor ICON
  • SKU T14.749735G
  • Barcode K63153
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K63153


Market Description

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

Associated Comments

  • TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
  • TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
  • APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
  • TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock
  • APPLICATION NOTE #120: SECONDARY SHOCK OPTIONS AVAILABLE, CONTACT ICON FOR MORE DETAILS
  • APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • OEM Wheels & Tires Fitment: Yes
  • Ships in multiple boxes

Features and Benefits

  • 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Eibach coil springs guaranteed for life against sagging or breakage
  • FK Rod End bearings for extended longevity and minimal deflection
  • Decreased body roll and improved on and off-road ride dynamics
  • Coilover conversion allows for addition of secondary shock
  • Increased wheel travel and ride quality over stock
  • Bolt-in system fits in OE coil bucket location
  • Shocks are fully rebuildable and revalveable

Product Description - Extended

  • 2017-2022 FORD F-250/F-350 4-5.5" LIFT STAGE 3 COILOVER CONVERSION SYSTEM
  • 2017-UP FORD F-250/F-350 4-5.5" LIFT STAGE 3 COILOVER CONVERSION SYSTEM

Product Description - Short

  • ICON 2017+ Ford F-250/F-350 4-5.5in Stage 3 Coilover Conversion System
  • SUSPENSION SYSTEM

Product Description - Long

  • 17-UP FORD F-250/F-350 4-5.5" STAGE 3 COILOVER CONVERSION SYSTEM
  • 17-22 FORD F-250/F-350 4-5.5" STAGE 3 COILOVER CONVERSION SYSTEM

Product Description - Invoice

  • 17-UP FSD 4-5.5" STG 3 CO CONV SYSTEM
  • 17-22 FSD 4-5.5" STG 3 CO CONV SYSTEM

AAIA Part Type Description

Suspension Lift Kit
