ICON 2020+ Jeep Gladiator 2.5in Stage 4 Suspension System

Pre-Order
Regular price $2,490.41
Product INFO
  • Vendor ICON
  • SKU T14.790921G
  • Barcode K22104
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K22104


Market Description

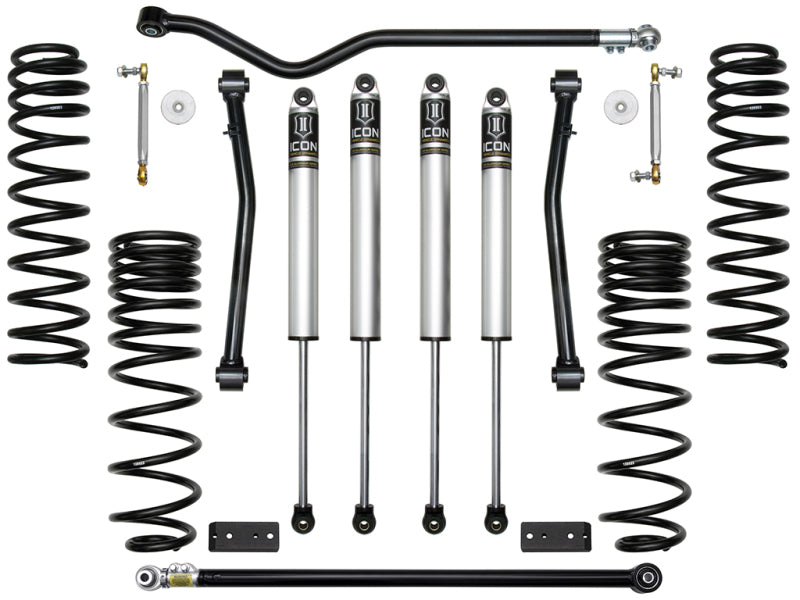

The Stage 4 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving on-road ride quality and overall performance for the daily driven application that will see frequent, moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

Associated Comments

  • TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
  • Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
  • TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
  • APPLICATION NOTE #127: WILL NOT FIT GLADIATOR MOJAVE TRIM
  • APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
  • OEM Wheels & Tires Fitment: Yes
  • Ships In Multiple Boxes

Features and Benefits

  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Front lower links included for caster angle correction and improved front end articulation
  • Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
  • Dual rate front coil springs with lifetime guarantee against sagging/breakage
  • Front and rear track bars ensure proper alignment and improved articulation
  • 2.0 Aluminum Series shocks with vehicle specific valving
  • Fits 35" tires (37" with extended bump stop spacer kit)
  • Adjustable, billet aluminum front sway bar links
  • Improves on and off-road ride quality over stock
  • 100% bolt-on system makes for an easy install
  • 33% front, 23% rear increase in wheel travel
  • 2.5" lift height

Product Description - Short

  • ICON 2020+ Jeep Gladiator 2.5in Stage 4 Suspension System
  • SUSPENSION SYSTEM

Product Description - Extended

2020-UP JEEP GLADIATOR JT 2.5" STAGE 4 SUSPENSION SYSTEM

Product Description - Long

20-UP GLADIATOR 2.5" STAGE 4 SUSPENSION SYSTEM

Product Description - Invoice

20-UP GLADIATOR 2.5" STAGE 4 SUSP SYS

AAIA Part Type Description

Suspension Lift Kit
